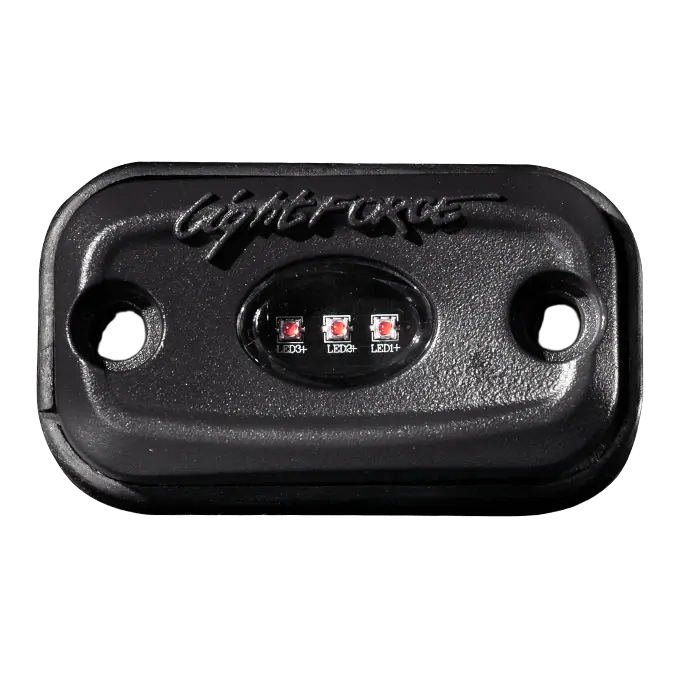

The ROK9 red LED is commonly used to replace or supplement car cabin or boat deck lights due to its compact form that can be mounted virtually anywhere.
Supplied with multiple mounting options for surface and tubular mounting the ROK9 Red LED light is engineered to withstand the unforgiving harsh outback conditions or, whatever you can throw at it.
FEATURES
- Reverse polarity protected
- Hard coated polycarbonate lens
- Tube and flat mounting bases included 30 degrees mounting base available separately
- Die cast aluminium housing Input cable length: 450mm (17.72″)
- Red LED Lifespan: Up to 30,000 hours
- Effective lumens: 272lm
- Beam angle 90°
SPECIFICATIONS
Globe Type | Red LED |
---|---|
Number of LEDs | 3 |
Distance: 1 lux at | 13m |
Distance: 0.25 lux at | 26m |
Effective Lumens | 272 |
Raw Lumens | 350 |
Colour Temperature | 1000K |
Current Draw | 0.3Amps @ 13.2V |
Voltage Range | 10V - 30V |
Wattage | 9W |
Ingress Protection Rating | IP67 |
Dimensions | 77mm (W) x 22mm including base x 11mm without (H) x 44mm (D) - 3″(W) x 0.9″ / 0.4″ (H) x 1.7″ (D) |
Weight | 80 grams |
Warranty | 3 years |
WHAT'S IN THE KIT
- 1 x ROK9 Red LED surface mounted light
- 1 x Flat mounting base
- 1 x Tube mounting base
- 1 x User instructions
- Fixing not included
SKU | ROK9RED |
---|---|
Barcode # | OEBC672745 |
Brand | Lightforce |
Shipping Weight | 0.0800kg |
Shipping Width | 0.100m |
Shipping Height | 0.150m |
Shipping Length | 0.100m |
