Description

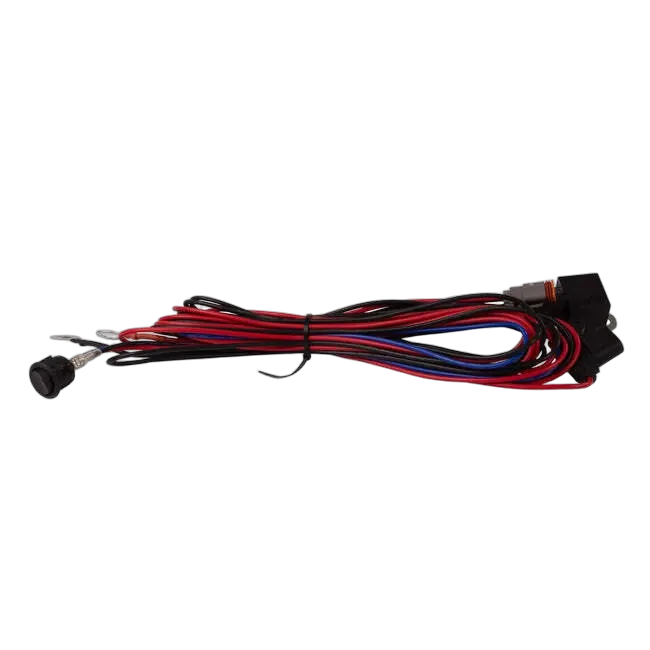

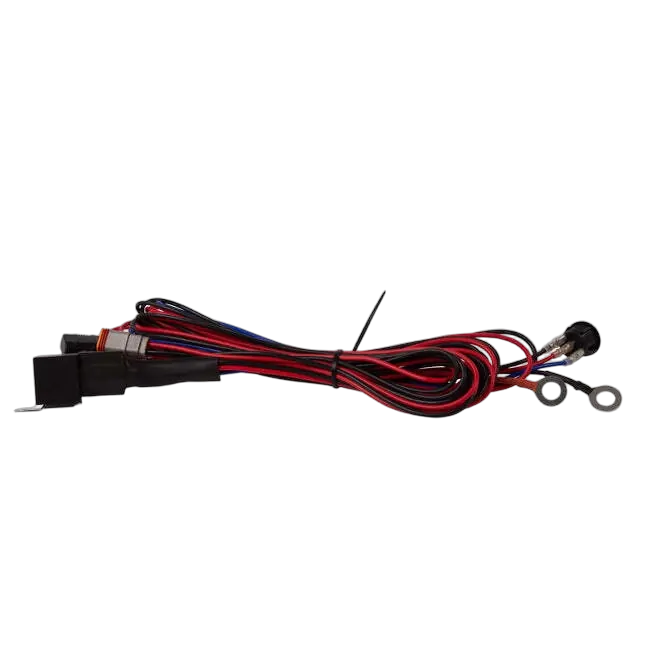

This 12 volt wiring harness is suitable for use with the ROK 10, 20 and 40 series LED work lights.

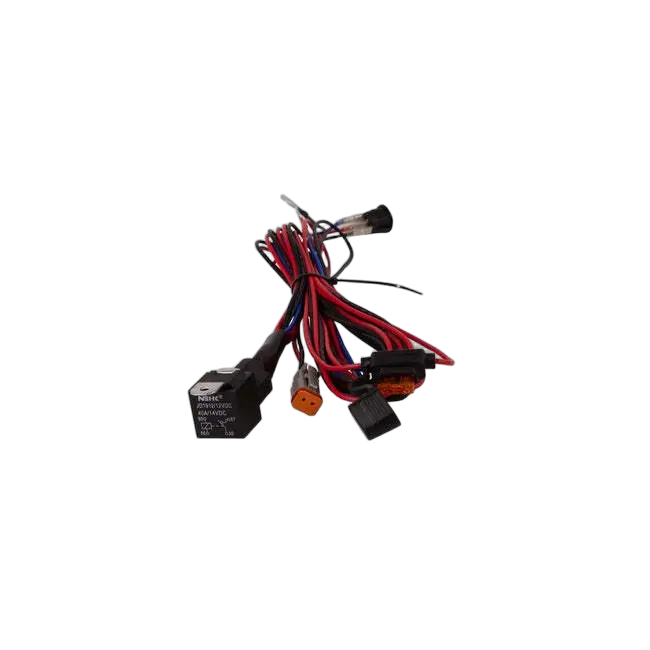

Harness incorporates a 40 amp relay, fully terminated two pin waterproof Deutsch connector and illuminated switch, with an inline fuse rated at 5 amps.
Cable lengths:
Relay to Deutsch 2 pin connector - 2.3 meters
Relay to battery ring terminals - 1.2 meters
Relay to switch - 1.3 meters
Switch connections:
Pin 1: Blue - power out
Pin 2: Red - power in
Pin 3: Black - ground (for LED illumination)
Kit contains:
1 x Wiring harness
1 x Instructions
Specifications
| SKU | CBROKH |
|---|---|
| Barcode # | 9335712027467 |
| Brand | Lightforce |
| Shipping Weight | 0.5000kg |
Pay in 4 interest-free payments of $9.90
More infoMake 4 payments of $9.90 over 8 weeks and get it now!
or interest free for up to 12 months with
Make 4 payments of $9.90 over 8 weeks and get it now!

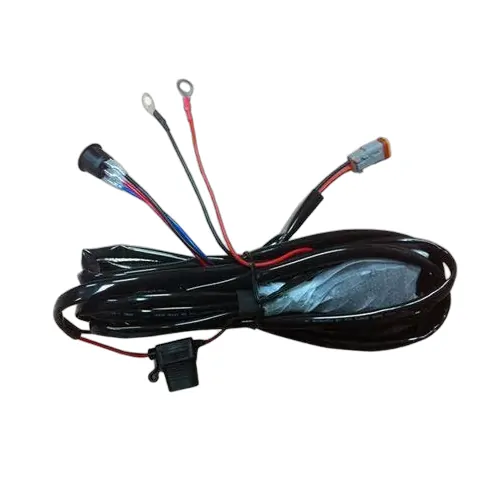

Use the Lightforce ROK Wiring Harness to wire up your ROK 10, 20 and 40 series LED work lights. Features a 40amp relay, fully terminated two pin waterproof Deutsch connector and illuminated switch.
