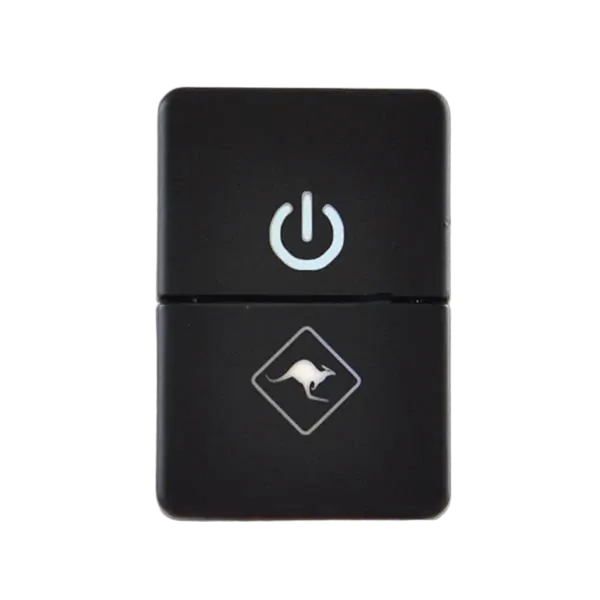

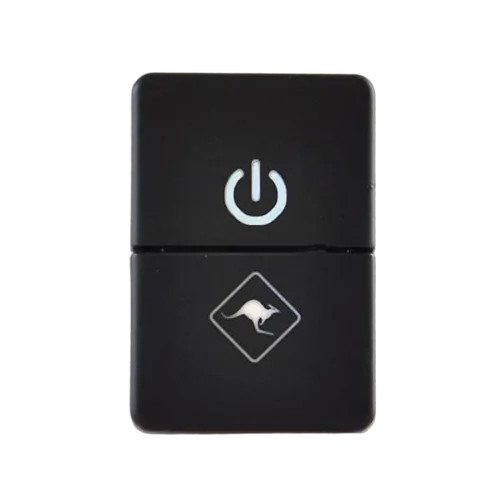

These new Dual switches also offers a versatile wiring solution by providing two independent inputs. So, if you wish to connect the vehicles spotlights to your high-beam and then connect your Work Lights to the vehicle’s battery, you can operate the two lights independently, the choice is yours.
Suitable for the following vehicles:
- Isuzu D-Max 3rd Generation Sept 2020 onwards
- Mazda BT-50 3rd Generation Oct 2020 onwards
- Holden Colorado 2012 – 2016 (either side of the steering wheel on upper dash)
- Isuzu D-Max 2nd Generation 2013 – 2020 (either side of the steering wheel on upper dash)
Illumination:
The LED illuminates white via the dash light circuit, once the switch is pushed on, the LED illuminates blue.
Specifications include:
- Switch cut out size is 18mm x 28mm.
- Housing material black PC/ABS
- Dual switch inputs / dual independent outputs
- Dual LED illumination (white/blue)
- Suitable for positive switched vehicles only
- Harness included (300mm in length)
- Current rating 3 amps @ 12v (must be used in conjunction with relay’s)
Harness compatibility:
Compatible with Lightforce Single Switch 8 Pin Adaptor # SWADP6. This enables direct connection to Lightforce Harness part number LFDLHTS (Genesis/Venom LED Harness).
Switch connectivity:
VEHICLE COMPATIBILITY
MAKE | MODEL | COMPATIBLE FROM | COMPATIBLE TO | FITMENT LOCATION |
---|---|---|---|---|
Isuzu | D-max | 2013 | 2020 | (either side of the steering wheel on upper dash) |
Isuzu | D-max | 2020 | 2023 | |
Isuzu | Mux | 2021 | 2023 | |
Mazda | BT50 | 2020 | 2023 | |
Holden | Colorado | 2012 | 2016 | (either side of the steering wheel on upper dash) |
SKU | CBSWDC3DI |
---|---|
Barcode # | OEBC672587 |
Brand | Lightforce |
Shipping Weight | 0.1000kg |
Shipping Width | 0.150m |
Shipping Height | 0.100m |
Shipping Length | 0.050m |
