Description

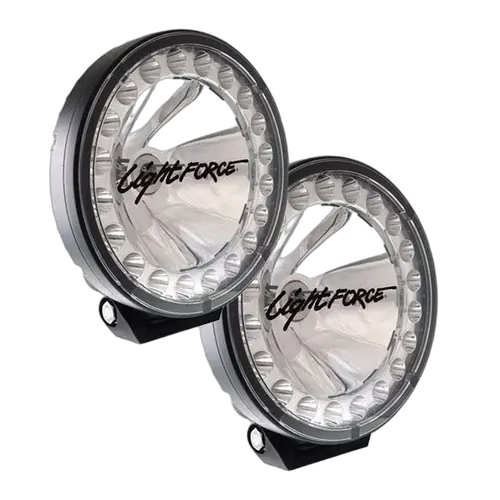

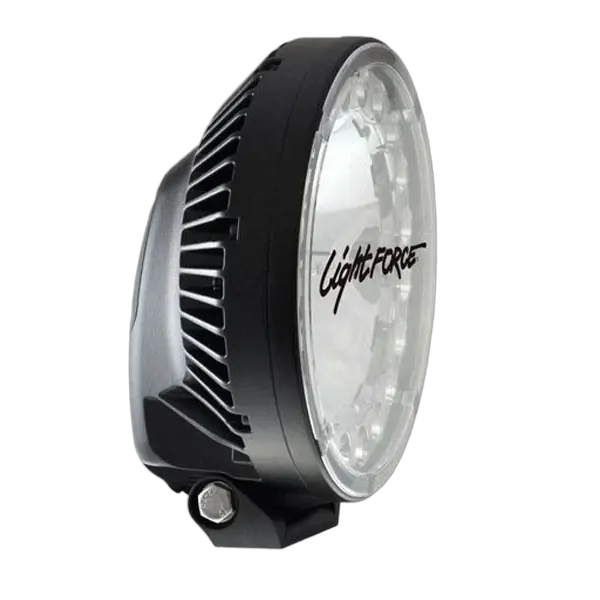

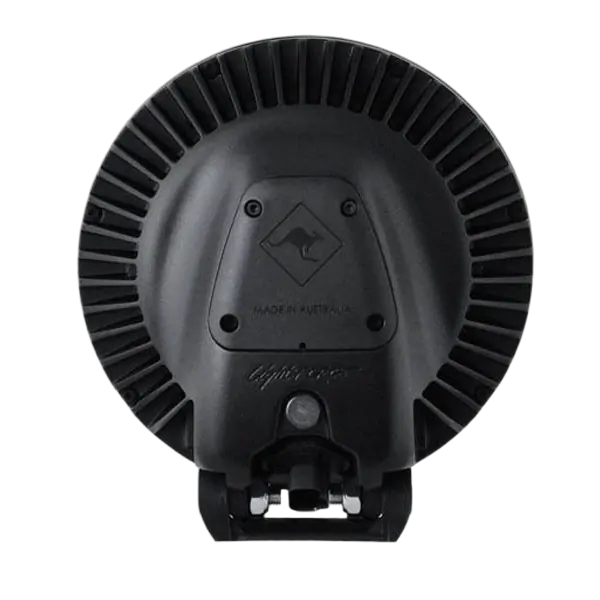

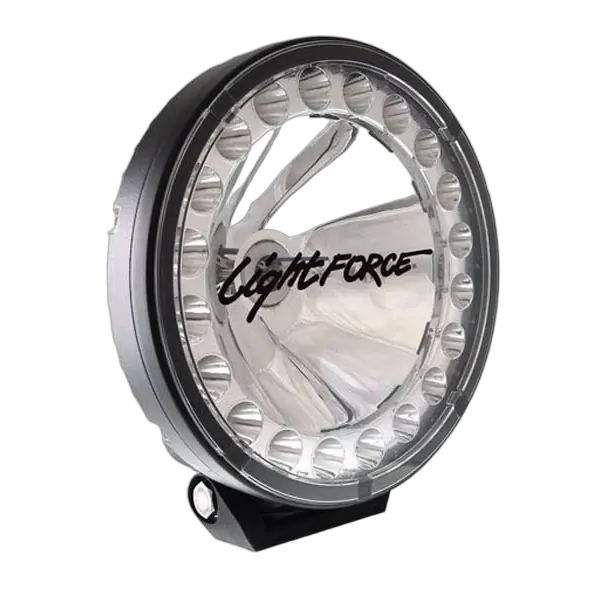

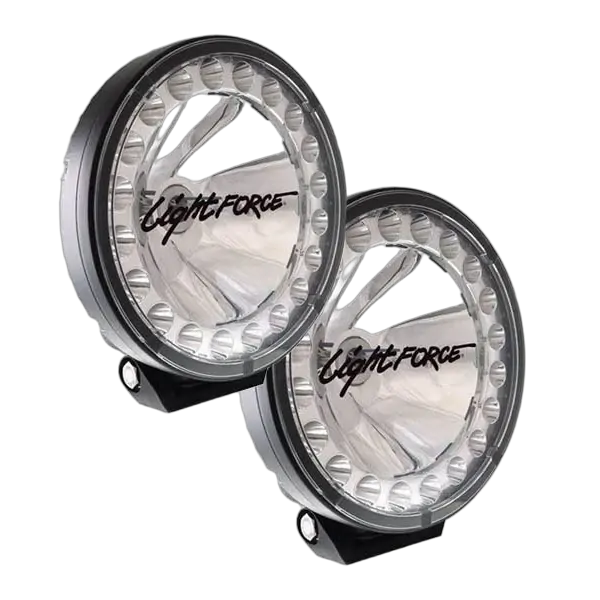

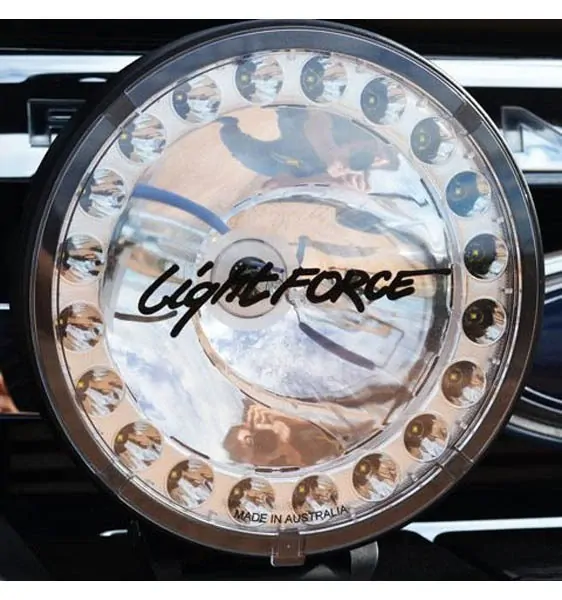

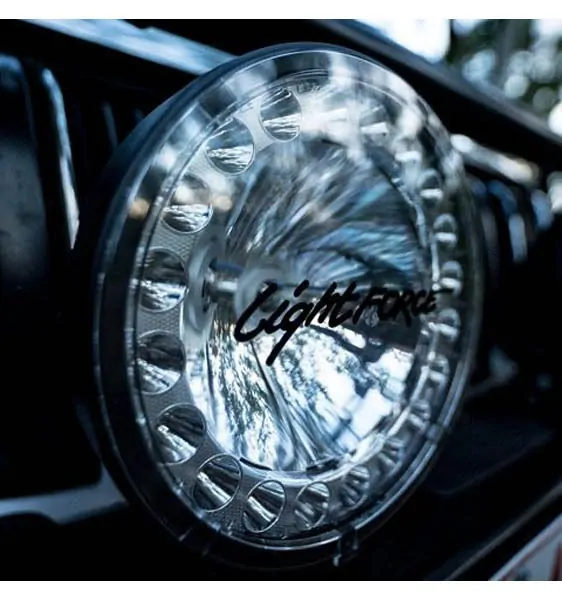

The highly evolved HTX2 Hybrid Driving Lights include enhancements to the award-winning features that Lightforce pioneered with the HTX, to give our leading driving lights an unfair advantage. Next-generation HTX2 Hybrid Driving Lights evolve every aspect to the next level to give you a high-performance light that’s more rugged and reliable than ever.
New features:
- New robust aluminium one-piece housing
- Increased surface area for better heat management
- Slimline design to fit most modern bullbars
- Profile compatible with more frontal crash avoidance systems
- Modular spot and combo filters
- More efficient, true 5000K OEM spec Phillips D1S HID bulb
- Reliable German OEM spec Osram ballast for reduced EMI emissions
- Shielded cables surpassing EMC compliance with CE certification
- Redesigned seals including a fully integrated waterproof plug
- Superior ingress protection surpassing IP68 and IP69K level
- New pre-treatment and UV stabilised powder coated finish
- Repositioned mounting point with redesigned captive Nyloc nuts
- Improved balance, rigidity and strength
- Easy access point for simple HID bulb replacement
Plus:
- 20 domeless 5000K Lumileds luxeon ZES LEDs
- Superior performance with distance and spread, and reduced glare
- The combination of HID and LED offers amazing performance
- 1 Lux at over 1,600 metres and .25 Lux at over 3,200 metres
- CRI of 80 plus for better colour rendering and less eye fatigue
- Genuine Gore waterproof membrane with mechanical seal
- Reversible robust mounting base
- Over, under and reverse voltage and thermal overload protection
- Comprehensive installation instructions
Specifications:
- 24V Input voltage range: 18-30V DC
- 24V Current draw: 6Amps @ 24V
- LED power: 80W / HID bulb: 50W
- Raw and effective lumens: 11770 / 8050
- LED colour temperature: 5000K
- HID colour temperature: 5000K
- Operating temperature: -40°C to 63°C
- Weight including bracket: 2.3kg (5.07lbs).
Kit inclusions:
- 2x Lightforce HTX2 Hybrid Driving Lights (HTXMK2)
- Reversible mount and hardware
- HTX2 Xtreme Top Stay Bracket (HTXMK2TSB) included with 24V version only
- Matching 4 pin waterproof harness adaptor
- HTX2 Clear Spot Filter (HTXMK2SFL)
- User instructions.
Specifications
| SKU | HTXMK2_24VX2 |
|---|---|
| Barcode # | HTXMK2_24VX2 |
| Brand | Lightforce |
| Shipping Weight | 6.0000kg |
