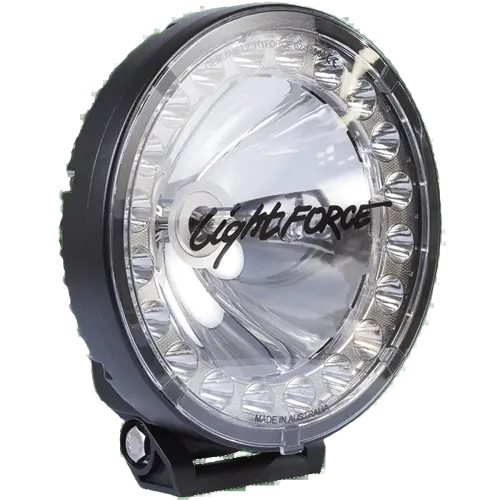

The all new Australian made compact DL230 HTX is the ultimate fusion of HID and LED technology, providing the instant flood of LED combined with the unmatched long-distance of HID, eliminating the need for additional spotlights and bars beyond one set of HTX.
FEATURES:
- 70w HID bulb within 170mm reflector
- 20 x genuine Lumileds LEDs providing flood beam pattern
- 1768m @1 LUX
- Lightweight glass filled nylon composite housing
- 6063 extruded aluminium for optimum heat dissipation
- IP69k rated to protect against moisture / contaminant ingress
- UV stable hard coated impact resistant polycarbonate lens
- Stainless steel hardware
- Three mode operation for complete control
- LED – for instant wide beam
- HID – for long distance
- Combine the two for ultimate visibility
- High current waterproof connector
- Genuine Gore® waterproof membrane with mechanical seal
- Over, under and reverse voltage protection
- Thermal overload protection
- Australian made
- 3 year warranty
SPECIFICATIONS:
- LED power: 80W
- HID power: 70W
- Effective lumens: 8400
- Input voltage range: 10-16V DC
- Current draw: 11Amps @ 13.2V
- LED colour temperature: 5000K
- Matched HID colour temperature
- Input cable length: 450mm (17.71″)
- Operating temperature: -40°C to 60°C
- Weight including bracket: 2.3kg (5.07lbs)
- Dimensions – 230mm diameter, 111mm depth, 245mm height including bracket
WHAT'S IN THE KIT
- 2x Lightforce HTX2 Hybrid Driving Lights (HTXMK2)
- 2x Lightforce HTX2 Clear Spot Filters (HTXMK2SFL)
- 2x Lightforce HTX2 Black Covers (HTXMK2BC)

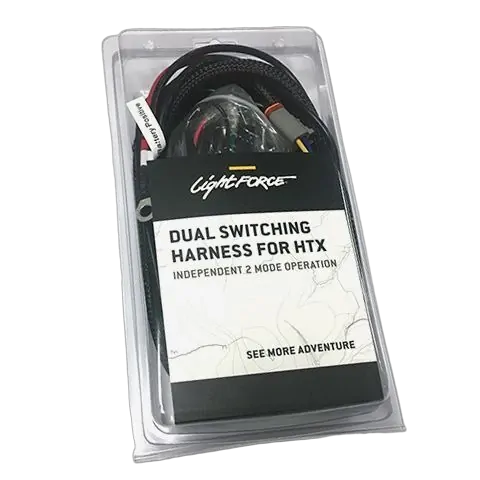

- 1x Lightforce Dual Switching Wiring Harness (LFDLHDS)
- 2x Reversible mounting bracket and hardware
- 2x Matching 4 pin waterproof harness adaptor
- 1 x User Instructions

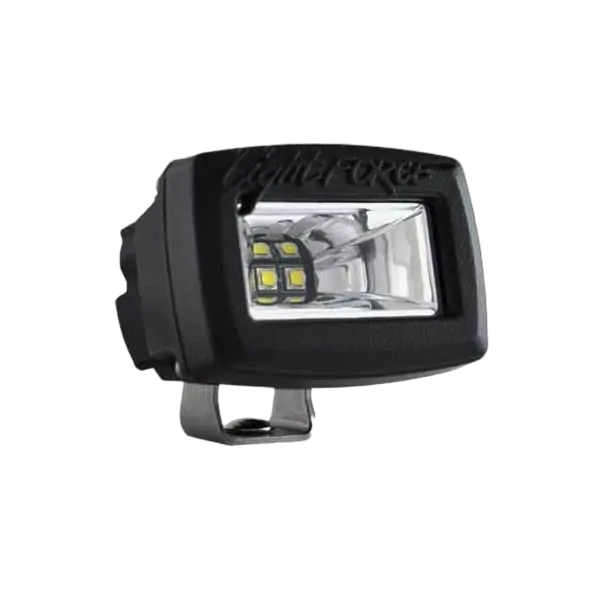

Perfect for a wide range of applications, the ROK lights from Lightforce are a unique solution to a range of lighting needs – use them as a reversing light, a motorbike handlebar light or even as a work light while camping! Available in a range of beam patterns, the new ROK10 and ROK20 work lights from Lightforce are a handy addition to address multiple lighting needs.
Product features:
- High-pressure cast aluminium body
- Hard coated, scratch and high impact resistant polycarbonate lens
- Custom moulded strain relief connector, fitted to military spec cable
- Waterproof rating: ROK20 – IP69K
- Military specification waterproof membrane with mechanical seal
- Over, under and reverse voltage protection
- Pulse width modulation thermal management circuitry
- Mounting system included
- Deutsch waterproof connector
- RoHS certified
- 3 year warranty
- Instant on
Kit contains:
- 1 x ROK20 LED Flood Utility Light
- 1 x Mounting hardware and fixings
- 1 x Deutsch plug fly lead
- 1 x User instructions
| SKU | HTXMK2PK_ROK2UF-KT |
|---|---|
| Brand | Lightforce |
| Shipping Weight | 12.0000kg |
Lightforce HTX2 12V Hybrid Driving Lights 2 Pack with Harness + 4 x ROK20UF
