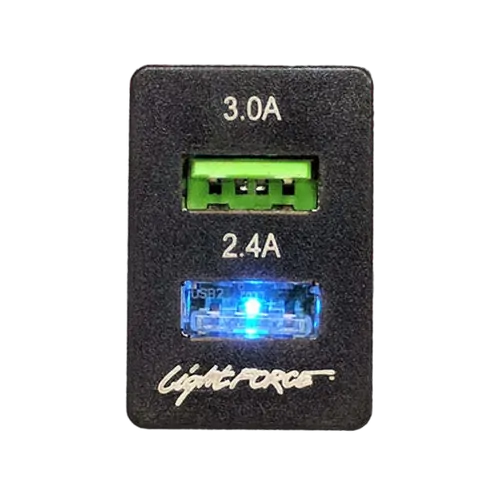

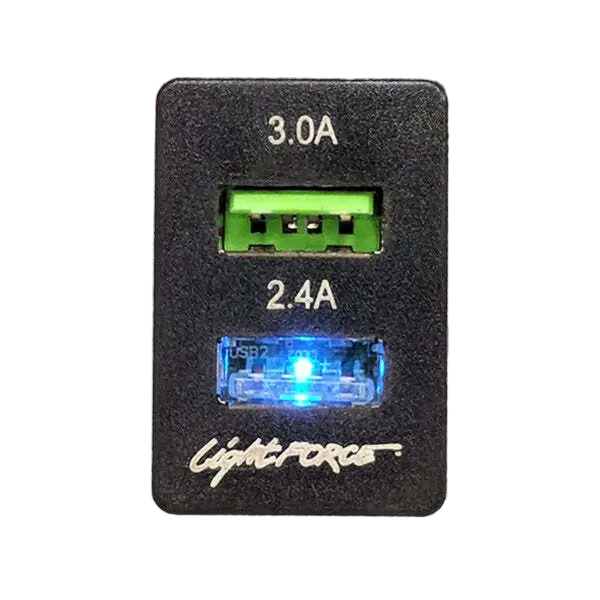

This independent 2.4 amp and 3.0 amp USB charger is designed to be compatible with Toyota vehicles with a 23mm x 33mm switch panel and Holden Colorado’s when used with our switch fascia CBFASCIA2.Suitable for charging high powered devices like tablets, mobile phones and gaming consoles or powering navigation units and in car DVR’s.

Features: Independent 2.4 amp and 3.0 amp outputs that are fully regulated and surge protected.Independent illumination that is fully dimmable via existing dash light circuit, separate from the main input power, so illumination is not always on; a unique feature of our product.

All cables are over 1.5 metres long, USB power input (red wire) is fitted with a mini fuse tap for direct fitment to the fuse box. Negative cable (black wire) is pre-terminated with a ring terminal and independent LED illumination (blue wire) for connection to existing dash light circuit.

• Independent 2.4 amp and 3.0 amp outlets
• 5.1 Volts regulated output
• 1.5 Metre long cables
• 5 Amp mini fuse tap for dual USB outlets (fitted)
• Independent blue LED illumination
• Matt black face

Installation:

• Red wire – USB positive wire can be connected in the following ways.  To an ignition source so the unit is only powered once the vehicle is on; or to an always on source so the unit is active continuously.
• Blue wire – Positive wire connects to the existing dash light circuit so LED illumination is only active once headlights are on.
• Black wire – Fit to vehicles negative (earth) simply, connect ring terminal to an existing M6 bolt that is grounded.

NOTE: All vehicle accessories should be wired through a fuse if the included harness is modified during installation ensure a fuse is used as close to the input source as possible, not exceeding 5 amps.
