Description
When you have limited space or wish to maximise your existing OEM switch locations this dual switch doubles the number of switches you can install, without the need to damage your vehicles dash by cutting additional holes.
This OEM style switch feature the Lightforce Roo logo and on icon for universal applications available for the following vehicles without any modification to the original dashboard.
Suitable for Toyota Prado 150, Hilux late 2015 onwards and Landcruiser.
Also suitable for Ford Ranger PX MK2 and Holden Colorado when utilising the Lightforce switch fascia.
Product features:
- Single powered input feeding two independently switched outputs
- Dual coloured illumination powered via existing dash light circuit
- Suitable for both positive and negative switched vehicles
- Harness included (300mm in length)
- Current rating 3 amps @ 12v
- Australian design patent
- Illumination is only activated when the vehicles dash lights are on, blue illumination with switch in the off position with green illumination when the switch is on.
The switches can function independent of the dash lights, however will not illuminate until the vehicles dash lights are activated.
A single input activates both the top and bottom switches, so if you have a series of dual switches they will need to be grouped into lighting (active with Hi beam) or active with a constant power or ACC on power.
The switch must be used in conjunction with a relay as it has a maximum current rating of 3 amps @12v.
Suitable for:
- Ford Ranger PX2 (fitted with LF fascia) 2015 - 2020
- Holden Colorado (fitted with LF fascia) 2017 - 2020
- Suzuki Jimny JB64W/JB74W 2018 - 2020
- Toyota Landcruiser 2008 - 2020
- Toyota 4Runner 2008 - 2020
- Toyota 86 (Subaru BRZ / Scion FR-S) 2012 - 2020
- Toyota Camry 2011 - 2014
- Toyota Corolla 2006 - 2013
- Toyota FJ Cruiser (roof console only) 2011 - 2016
Specifications
| SKU | CBSWTY2DI |
|---|---|
| Barcode # | 9335712027771 |
| Brand | Lightforce |
| Shipping Weight | 0.5000kg |

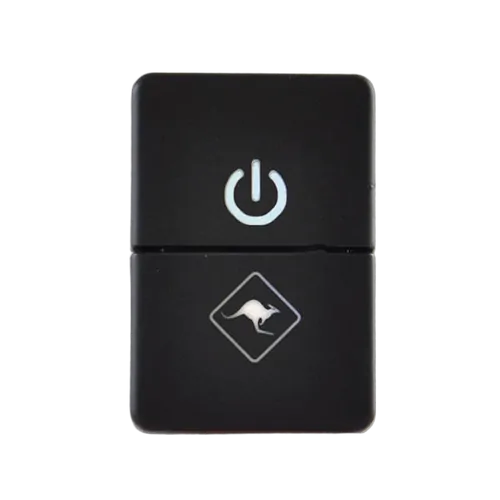

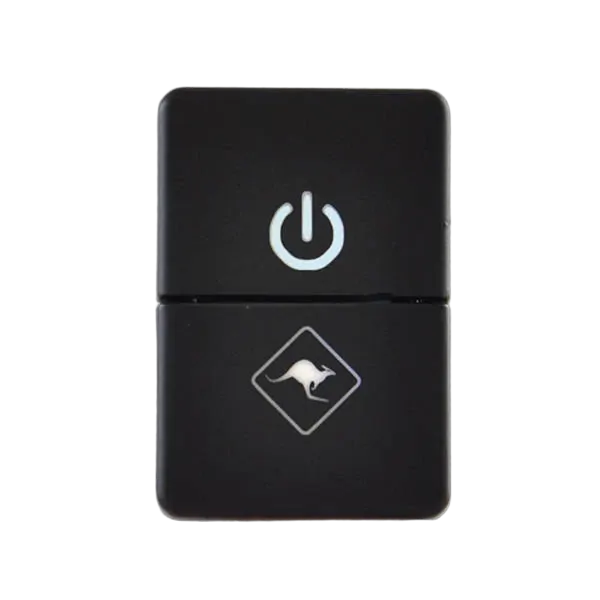

Lightforce Dual Lightforce Switch To Suit Toyota/Holden/Ford
SKU: CBSWTY2DI
Sale price
$38.00
More infoMake 4 payments of $9.50 over 8 weeks and get it now!
Lightforce's range of dual switches are specially designed to suit your Toyota. This switch provides LED illumination of the on and kangaroo logo in a vertical position.
