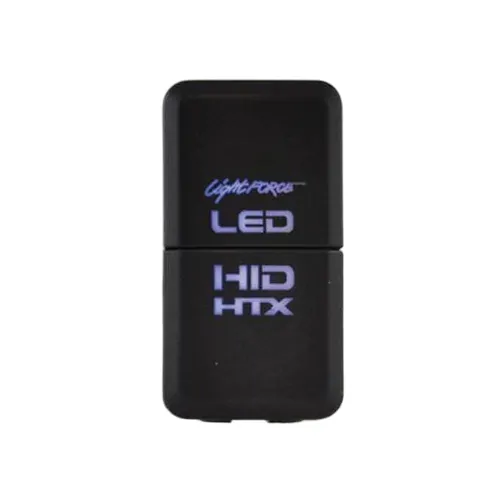

Lightforce Dual LED/HID Switch to Suit Toyota

Description
Specifications

This OEM style switch feature the HID and LED icons for use with the HTX Hybrid driving lights available for the following vehicles without any modification to the original dashboard.

Suitable for Toyota Prado 120, pre 2015 model Hilux, 100 Series Landcruiser’s and 70 Series.

When you have limited space or wish to maximise your existing OEM switch locations this dual switch doubles the number of switches you can install, without the need to damage your vehicles dash by cutting additional holes

Product features:

Single powered input feeding two independently switched outputs
Dual coloured illumination powered via existing dash light circuit
Suitable for both positive and negative switched vehicles
Harness included (300mm in length)
Current rating 3 amps @ 12v
Australian design patent
Illumination is only activated when the vehicles dash lights are on, green illumination with switch in the off position with blue illumination when the switch is on.

The switches can function independent of the dash lights, however will not illuminate until the vehicles dash lights are activated.

A single input activates both the top and bottom switches, so if you have a series of dual switches they will need to be grouped into lighting (active with Hi beam) or active with a constant power or ACC on power. Fascia available.

The switch must be used in conjunction with a relay as it has a maximum current rating of 3 amps.

Suitable for:

Toyota 100 Series Landcruiser 1998 - 2007
Toyota 4Runner 2003 - 2009
Toyota FJ Cruiser 2007 - 2018
Toyota Fortuner 2005 - 2015
Toyota HiAce 2005 - 2013
Toyota Hilux 2005 - 2015
Toyota Kluger 2001 - 2007
Toyota Landcruiser 75 76 78 Series 1985 - 2018
Toyota Landcruiser 79 (Plastic Dash) Series 1985 - 2018
Toyota Prado 120 2003 - 2009

Specifications

SKU	CBSWTYDHTX
Barcode #	9335712029867
Brand	Lightforce
Shipping Weight	0.5000kg

$33.99

This Dual LED/HID Switch from Lightforce is designed for use with HTX Hybrid Driving Lights, suitable for a variety of Toyota models and featuring two independently switched outputs.
