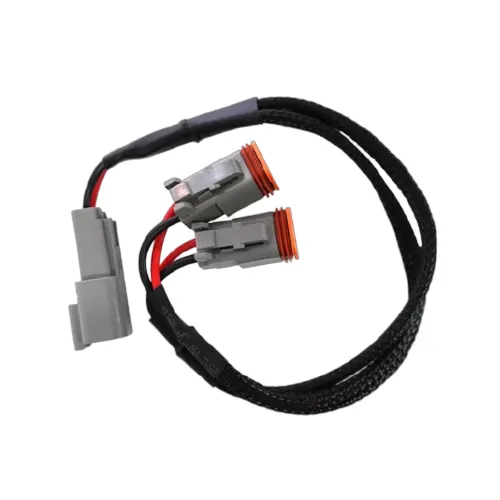

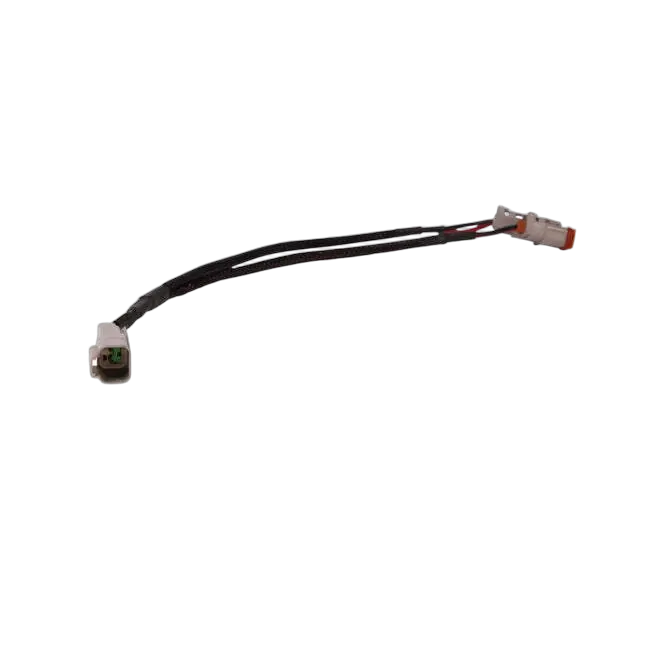

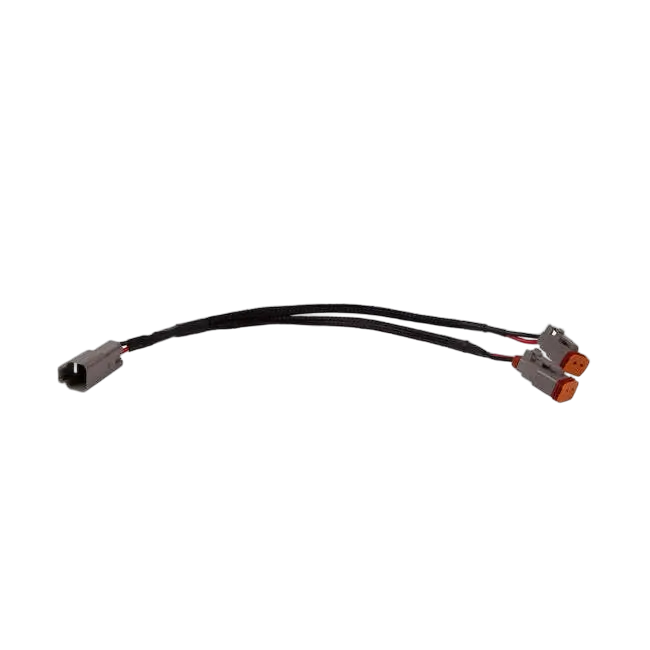

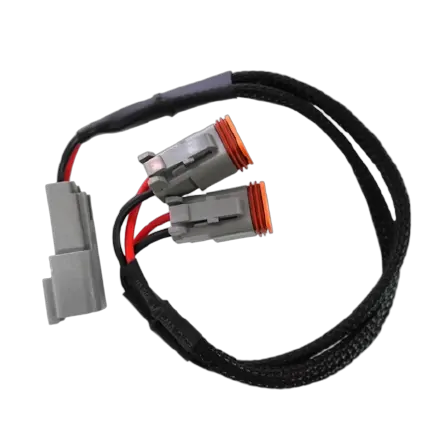

Lightforce 2 Pin Deutsch Style Connector / Splitter

Compatible with all Lightforce wiring harnesses using a DT style connector - Striker harness (STRIKERLEDHARN) ROK harness (CBROKH) and LED bar harnesses from 6” to 20” in length.

Product Details:

Connect multiple lights using a single harness

This allows you to split a single plug into 2 allowing you to run multiple driving/work lights off the same switch and harness.

This harness allows for the connection of two accessory lights, using a single input on a range of our wiring harnesses, male & female plugs connect directly from the harness into the back of the lights.

Compatible with all Lightforce wiring harnesses using a DT style connector - Striker harness (STRIKERLEDHARN) ROK harness (CBROKH) and LED bar harnesses from 6” to 20” in length.

For example, using our standard Striker LED harness you can fit an additional 2 LED Strikers on the existing harness resulting in 4 LED Strikers to be used on the supplied harness reducing the need to run additional wiring.

Specification:

• 18AWG Cable
• Waterproof DT style connectors
• Cable contained in braided sleeve
• Cable Lengths are 300mm
• Total current rating 10amps @13.2 volts

Note: Always ensure your original harness is rated to handle the increased load (current) when adding additional lights and if required the fuse replaced with a suitable rating.
