Description
Lightforce performance is now available in our new black-bezel LED Bars, extruded from aluminium and finished in a UV resistant anodised coating to face the harshest conditions in the world.
The Lightforce LED Bar range is rugged and impact resistant, featuring a hard-coated polycarbonate lens for durability and a waterproof rating to IP69K. The LED Bar range utilises high output European LEDs tuned within the reflectors to produce unparalleled performance in their class. With multiple mounting options available and complete with a waterproof Deutsch connector – including full wiring harness – the Lightforce LED Bar range delivers powerful performance in a simple package.
Product features:
- Extruded aluminium body with black anodized coating
- IP69K rated to protect against moisture / contaminant ingress
- Hard coated, scratch and high impact resistant polycarbonate lens
- Custom moulded strain relief connector fitted to military spec cable
- Genuine Gore® waterproof membrane with mechanical seal
- Over, under and reverse voltage protection
- Pulse width modulation thermal management circuitry
- Protected against electromagnetic and radio frequency interference (RFI)
- Stainless steel brackets and mounting hardware
- Comprehensive wiring harness
- Broad operating voltage range of 10 ~ 36 volts
- Input cable length: 450mm (17.72?).Wiring Harness Length 2.5m (92.43?)
- Deutsch waterproof connectors
- RoHS certified
- 3 Year warranty.
Kit contains:
- 1 x Lightforce Dual Row LED Bar
- 1 x Full wiring harness (including relay and switch connector)
- 2 x Stainless steel brackets and hardware
- 1 x User instructions
Product specifications:
- Distance: 1 lux at 327m
- Distance: 0.25 lux at 654m
- Effective Lumens 3016
- Raw Lumens 5600

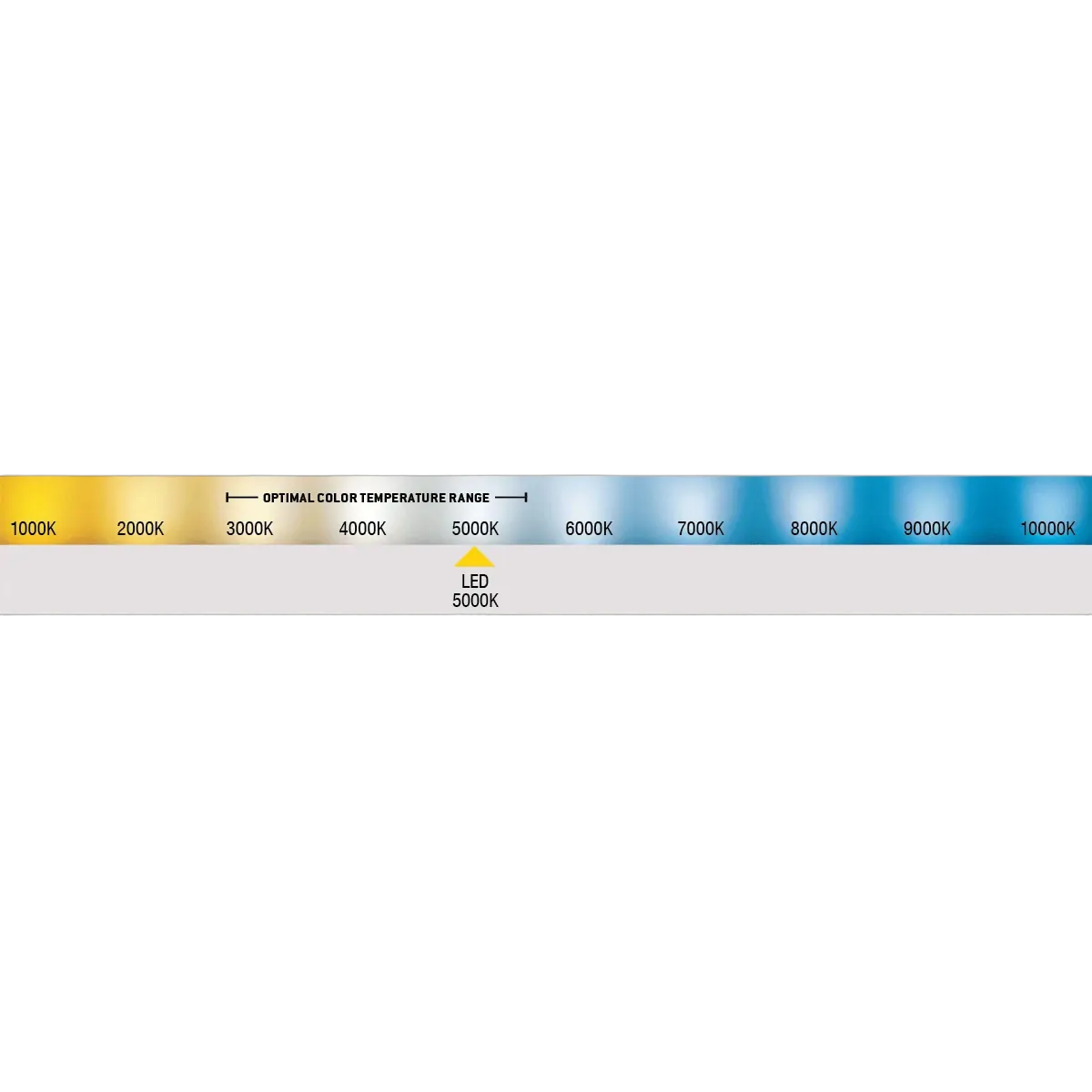

- Colour Temperature 5000K
- Current Draw 3.6Amps @ 13.2V
- Voltage Range 10V - 36V DC
- Wattage 100W
- Ingress Protection Rating IP69K
- Weight 1.81kg
Specifications
| SKU | LEDBD10C |
|---|---|
| Barcode # | 9335712031686 |
| Brand | Lightforce |
| Shipping Weight | 1.9000kg |

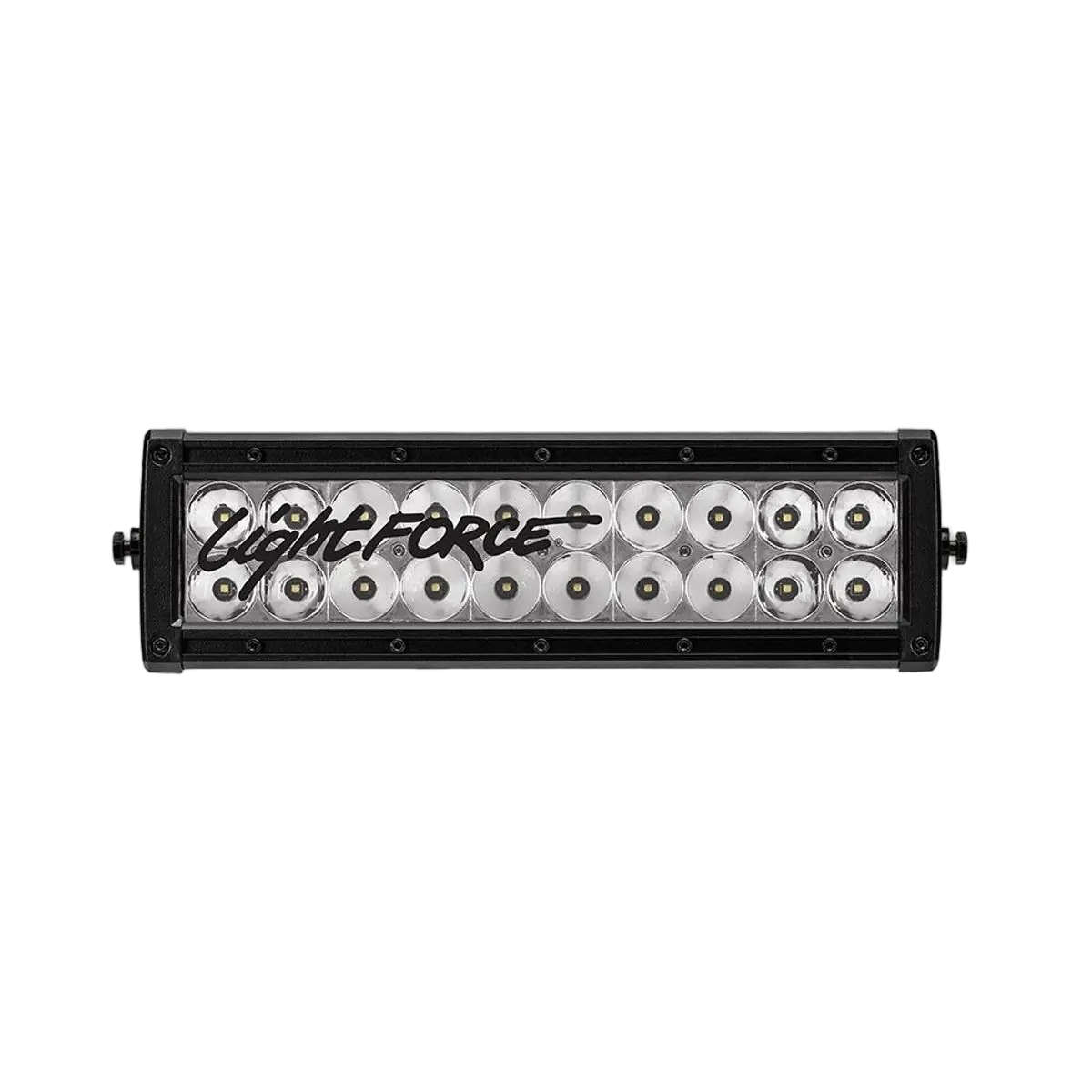

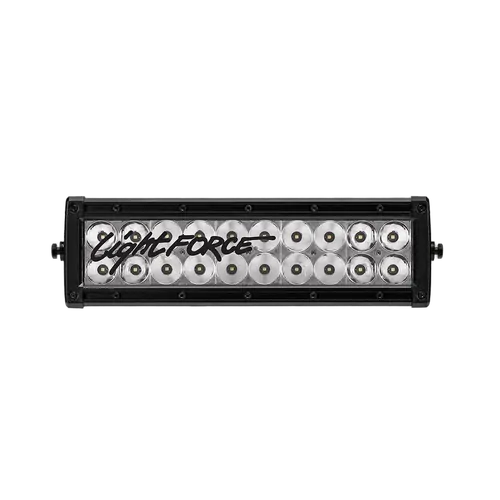

Lightforce 10 (254mm) Dual Row LED Bar Black 20 x 5W"
SKU: LEDBD10C
Sale price
$354.99
More infoMake 4 payments of $88.75 over 8 weeks and get it now!
The new and improved range of 10" Dual Row Light Bars from Lightforce feature extra durable lens, a waterproof design and a comprehensive wiring harness.
