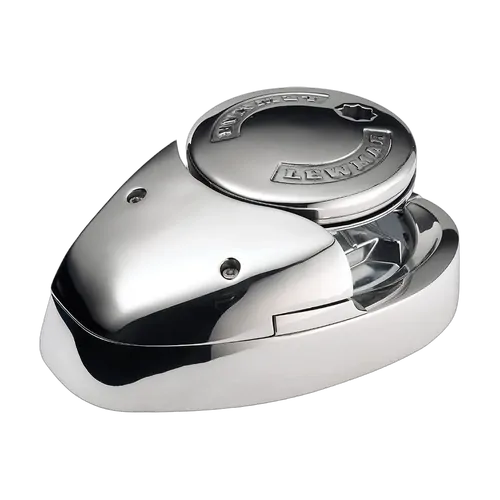

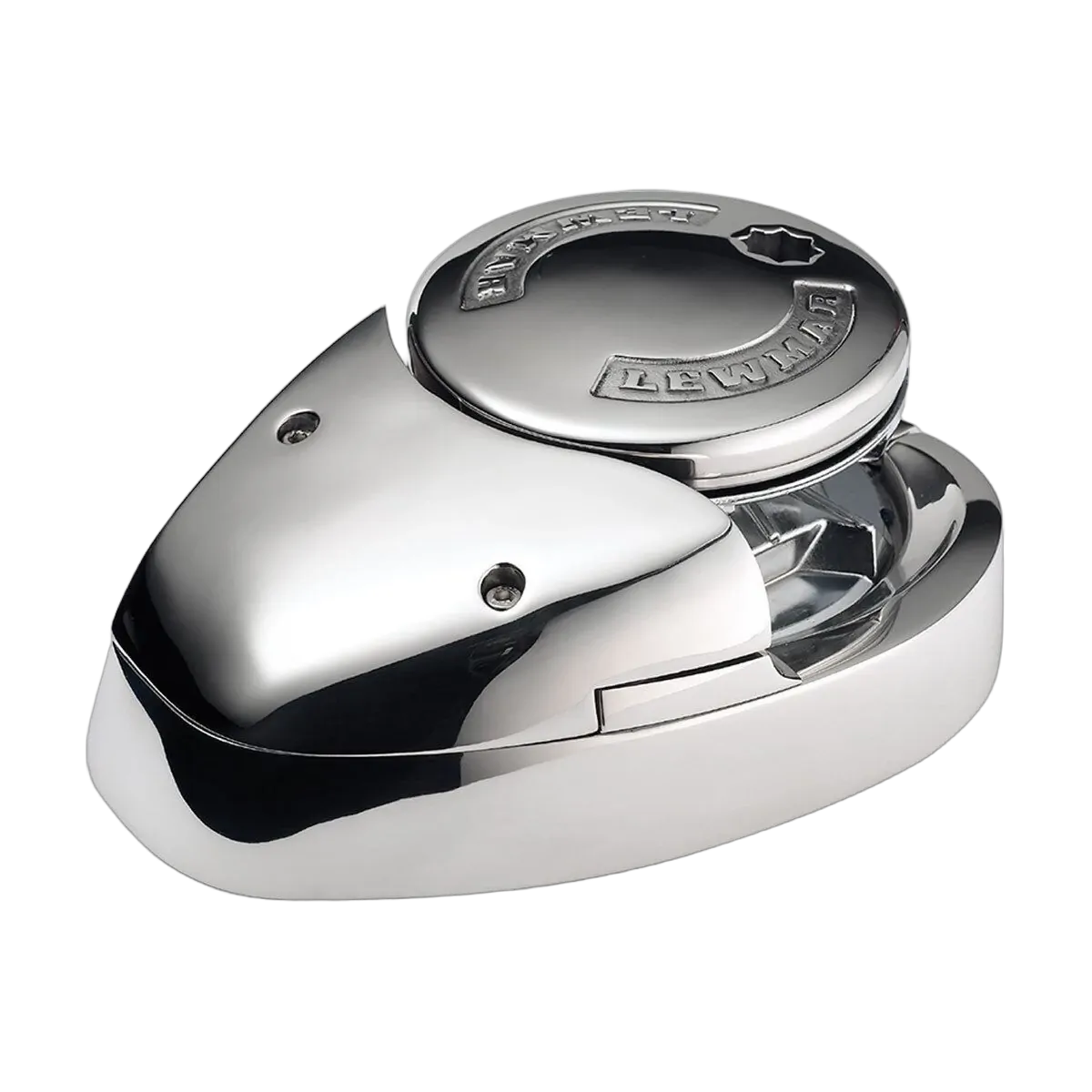

The V series of vertical windlasses Features an industry leading external deck unit manufactured from precision cast 316 grade stainless steel. The V1, V2 and V3 are supplied with a rope/chain gypsy accepting 8mm or 10mm short link chain (model dependent) and 12 to 16mm three strand or eight plait medium lay nylon rope (12mm and 16mm only). The V1, V2 and V3 are fitted as standard with the Fall Safe anchor lock system preventing accidental deployment of the anchor. As an option the V1, V2 and V3 are available with a manual recovery winching system for use in the event of power loss (V1 including manual override – 154332).

Features
• Cast 316 grade stainless steel external unit
• Dual direction motor
• Combination rope/chain gypsy
• Heavy duty worm drive motor
• Cone clutch for easy release
• Chain counter ready
• For boats 7m to 14m
• 3 year warranty

+D28
154486 Guarded remote up/down rocker switch
154502 Dual 12V solenoid to suit V1/2/3/5
154512 Circuit breaker panel mount 50A*
154516 Circuit breaker panel mount 90A*
154518 Circuit breaker panel mount 110A*
*Model dependent

N.B. Boat size recommendation is for an average boat under average conditions and is a guide only.
