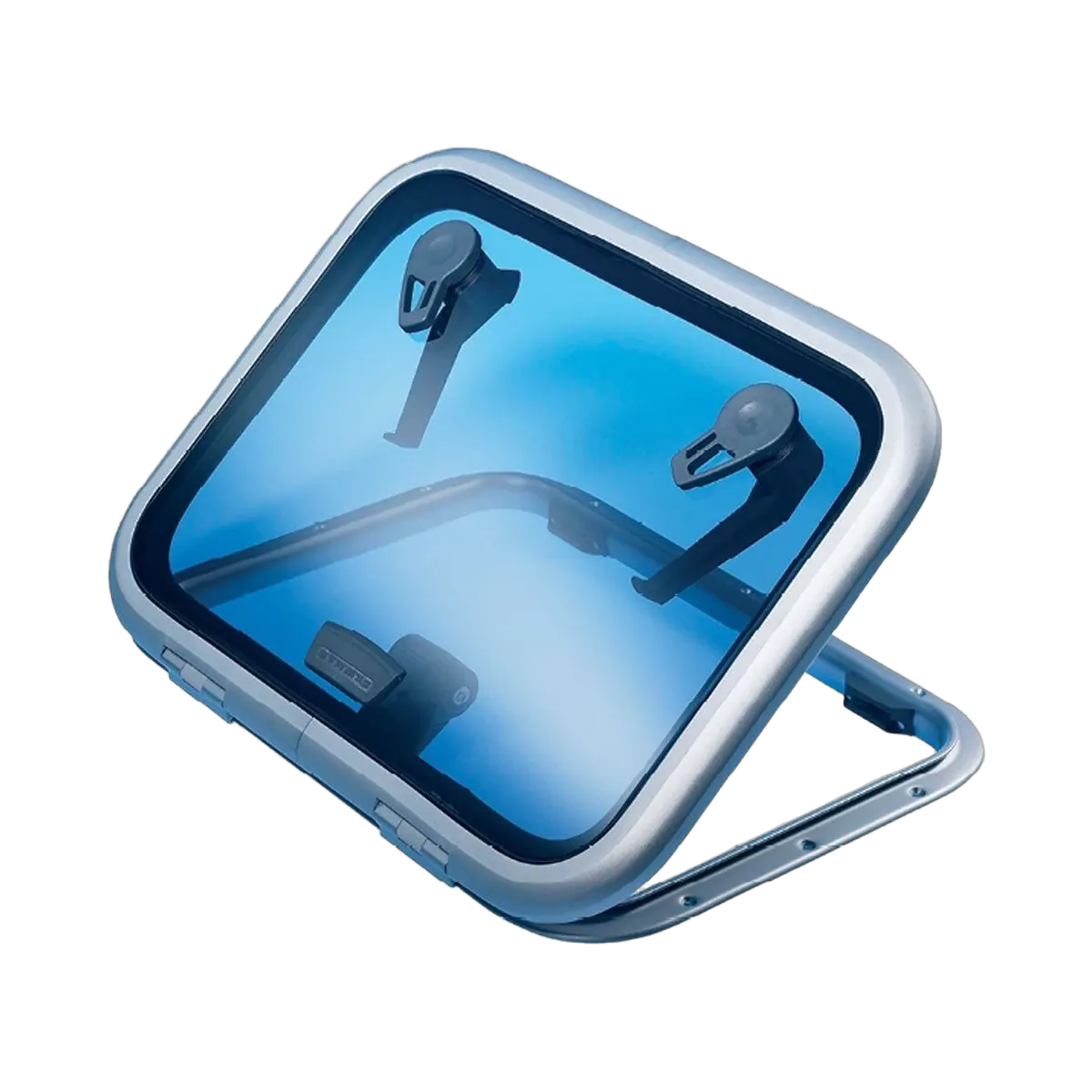

Manufactured to exacting standards, the Lewmar® Medium Profile range provides a smooth profile with modern lines, similar to the Low Profile range. The hatch has been designed with deeper frame sections for greater strength and thicker acrylic for durability. The Medium Profile hatches include Lewmar’s unique sealing system which allows for easy acrylic replacement if ever required. Ideal as a foredeck hatch on larger cruisers and offshore yachts.

Features
• Outside handles
• Ability to lock the hatch fully closed or in the vented position
• Ability to quickly and easily replace acrylic lens
• Friction hinges hold the lid open in any position up to 95° (optional extra not included as standard)
• Anodised aluminium frame for corrosion resistance
• Curved upper frame for strength as well as modern styling
• CE approved to Area 2A

BLA Code Friction Hinge	BLA Code with Stay	BLA Code Frosted Lens	Size	Outside XxY LxW mm	Cut Out X1xY1 LxW mm	Radii R mm	Radii R1 mm	Height Z mm	Acrylic mm	Internal Trim Kit & Insect Screen	Internal Trim Kit Colour	Insect Screen Only to Suit

BLA Code Friction Hinge	BLA Code with Stay	BLA Code Frosted Lens	Size	Outside XxY LxW mm	Cut Out X1xY1 LxW mm	Radii R mm	Radii R1 mm	Height Z mm	Acrylic mm	Internal Trim Kit & Insect Screen	Internal Trim Kit Colour	Insect Screen Only to Suit
170096	-	-	40	492 x 492	421 x 421	78	42.5	32	12	170216	White	170252

Accessories
172196 Large Handle Kit Size 30+
SP17170292 Hinge Kit (Friction)
SP17170260 Catch Block
SP17170268 Friction Lever
SP17170280 Joining Insert
SP17170296 Hinge Caps x10
SP17170266 Large Gasket Friction Lever
SP17170376 Handle Hatch External LP MP (Pair)

To order replacement Acrylic with Seal, please contact BLA on 1300 252 725 with the following information
• Hatch overall size W x L x H
• Serial Number embossed in the acrylic
• Friction Lever or Telescopic Stay type

N.B. Insect screens can only be used with trim kits. Trims also available in Ivory
