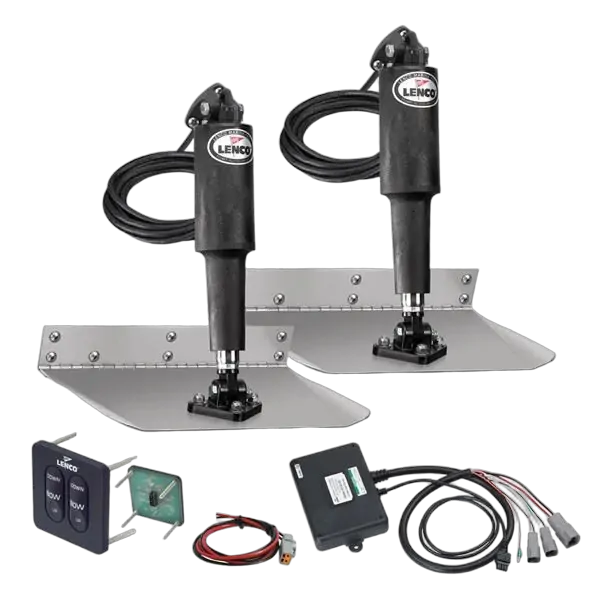

Lenco 9 inch x 9 inch Standard Mount Trim Tab & Standard Tactile Switch Kit

Description
Specifications

FEATURES

Standard Mount Trim Tab Kits:
• 2 x Standard Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with a 5/8 inch flared trailing edge and 1/8 inch diameter hinge pin.
• 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
• 2 x actuator extension wiring harness (6m) with Deutsch connectors.
• 1 x set of stainless steel fasteners.
• 2 x upper mounting bracket with gland seal.
• 2 x lower mounting bracket.
• Lenco owner’s installation manual.
• 5 Year Warranty (Recreational Use).

Part No.	55420
Min. Transom Height	356mm
Approx. Boat Length	4.3Mtr - 5.5Mtr
Finish	Matte
Volts	12V
Switch Kit	Standard Tactile
Dimensions (L x W)	9 inch (228mm) x 9 inch (228mm)
Hinge Height	51mm
Note	24 Volt Option Available. *All standard mount trim tabs kits are supplied in retail packages.

Specifications

SKU	55420
Barcode #	9330420168587
Brand	Lenco
Shipping Weight	6.0000kg

$1,438.99

SAVE $128.46

DON'T PAY RRP $1,567.45

Description

FEATURES

Part No.	55420
Min. Transom Height	356mm
Approx. Boat Length	4.3Mtr - 5.5Mtr
Finish	Matte
Volts	12V
Switch Kit	Standard Tactile
Dimensions (L x W)	9 inch (228mm) x 9 inch (228mm)
Hinge Height	51mm
Note	24 Volt Option Available. *All standard mount trim tabs kits are supplied in retail packages.
