FEATURES |

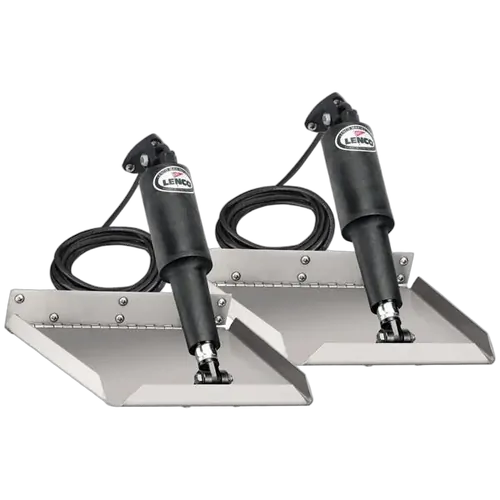

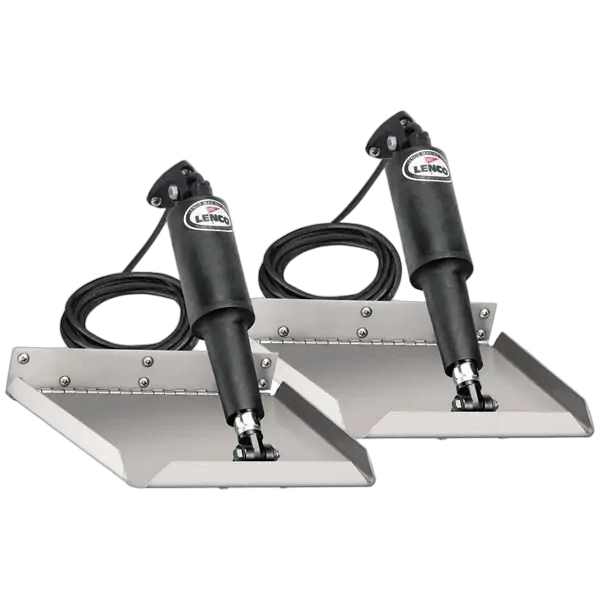

Edge Mount Trim Tab Kit: • 2 x Edge Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with 1 inch turned up edges and a 5 degree taper on both sides to the trailing edge and 1/8 inch diameter hinge pin. • 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors. • 2 x actuator extension wiring harness (6m) with Deutsch connectors. • 1 x set of stainless steel fasteners. • 2 x upper mounting bracket with gland seal. • 2 x lower mounting bracket. • Lenco owner’s installation manual. • 5 Year Warranty (Recreational Use). |
Part No. | 55460 |
Min. Transom Height | 279mm |
Approx. Boat Length | 4.2Mtr - 5.4Mtr |
Finish | Matte |
Volts | 12V |
Switch Kit | Not Included |
Dimensions (L x W) | 12 inch (305mm) x 9 inch (228mm) |
Hinge Height | 51mm |
Note | 24 Volt Option Available. *All standard mount trim tabs kits are supplied in retail packages. |
SKU | 55460 |
---|---|
Barcode # | 9330420150445 |
Brand | Lenco |
Shipping Weight | 6.0000kg |
