FEATURES |

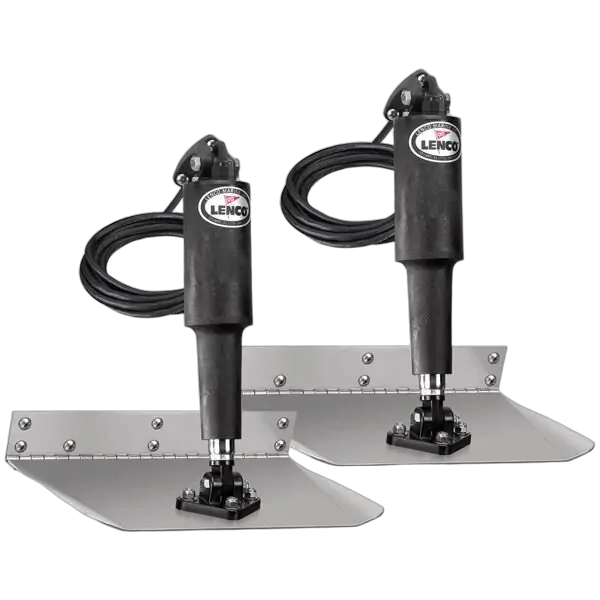

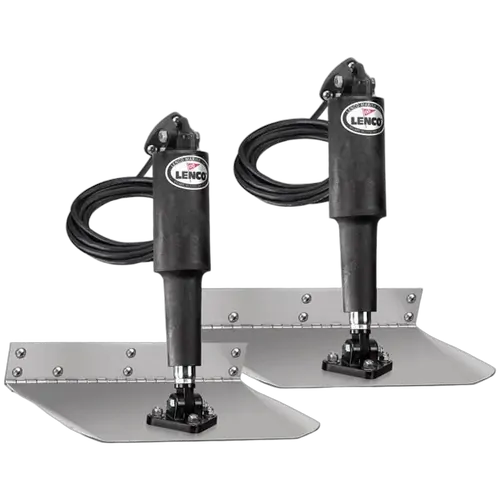

Standard Mount Trim Tab Kits: • 2 x Standard Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with a 5/8 inch flared trailing edge and 1/8 inch diameter hinge pin. • 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors. • 2 x actuator extension wiring harness (6m) with Deutsch connectors. • 1 x set of stainless steel fasteners. • 2 x upper mounting bracket with gland seal. • 2 x lower mounting bracket. • Lenco owner’s installation manual. • 5 Year Warranty (Recreational Use). |
Part No. | 55440 |

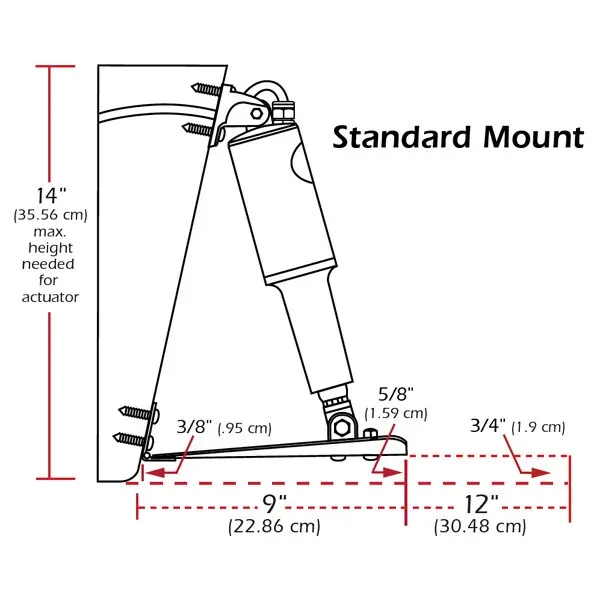

Min. Transom Height | 356mm |
Approx. Boat Length | 5.2Mtr - 9.2Mtr |
Finish | Matte |
Volts | 12V |
Switch Kit | Not Included |
Dimensions (L x W) | 12 inch (305mm) x 12 inch (305mm) |
Hinge Height | 51mm |
Note | 24 Volt Option Available. *All standard mount trim tabs kits are supplied in retail packages. |
SKU | 55440 |
---|---|
Barcode # | 9330420150414 |
Brand | Lenco |
Shipping Weight | 6.0000kg |
