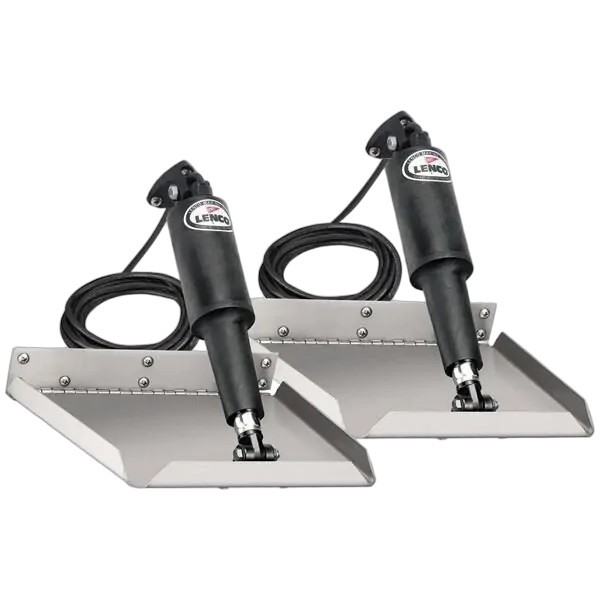

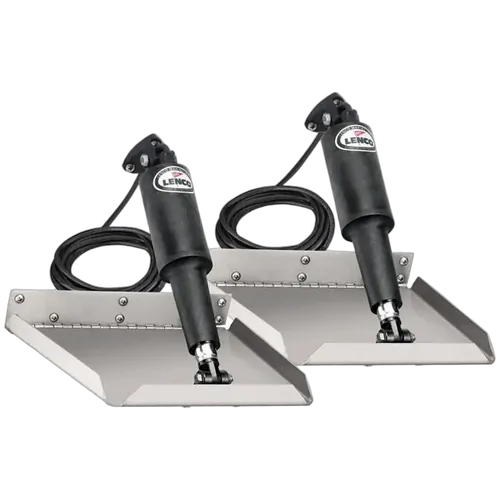

Lenco 12V 12 inch x 12 inch Edge Mount Trim Tab Kit

Description
Specifications

FEATURES

Edge Mount Trim Tab Kit:
• 2 x Edge Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with 1 inch turned up edges and a 5 degree taper on both sides to the trailing edge and 1/8 inch diameter hinge pin.
• 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
• 2 x actuator extension wiring harness (6m) with Deutsch connectors.
• 1 x set of stainless steel fasteners.
• 2 x upper mounting bracket with gland seal.
• 2 x lower mounting bracket.
• Lenco owner’s installation manual.
• 5 Year Warranty (Recreational Use).

Part No.	55462
Min. Transom Height	279mm
Approx. Boat Length	5.1Mtr - 9.1Mtr
Finish	Matte
Volts	12V
Switch Kit	Not Included
Dimensions (L x W)	12 inch (305mm) x 12 inch (305mm)
Hinge Height	51mm
Note	24 Volt Option Available. *All standard mount trim tabs kits are supplied in retail packages.

Specifications

SKU	55462
Barcode #	9330420168648
Brand	Lenco
Shipping Weight	6.0000kg

$1,270.99

SAVE $79.96

DON'T PAY RRP $1,350.95

Description

FEATURES

Part No.	55462
Min. Transom Height	279mm
Approx. Boat Length	5.1Mtr - 9.1Mtr
Finish	Matte
Volts	12V
Switch Kit	Not Included
Dimensions (L x W)	12 inch (305mm) x 12 inch (305mm)
Hinge Height	51mm
Note	24 Volt Option Available. *All standard mount trim tabs kits are supplied in retail packages.
