Description
| FEATURES |
| • Built-in auto retract. • 12 volt. • Waterproof key pad and solid state control box with waterproof plug and play Deutsch connectors. • 36 inch power pigtail for control box. Edge Mount Trim Tab Kit: • 2 x Edge Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with 1 inch turned up edges and a 5 degree taper on both sides to the trailing edge and 1/8 inch diameter hinge pin. • 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors. • 2 x actuator extension wiring harness (6m) with Deutsch connectors. • 1 x set of stainless steel fasteners. • 2 x upper mounting bracket with gland seal. • 2 x lower mounting bracket. • Lenco owner’s installation manual. • 5 Year Warranty (Recreational Use). |
| Part No. | 55427 |
| Min. Transom Height | 279mm |
| Approx. Boat Length | 4.9Mtr - 7.6Mtr |
| Finish | Matte |
| Volts | 12V |
| Switch Kit | Standard Tactile |

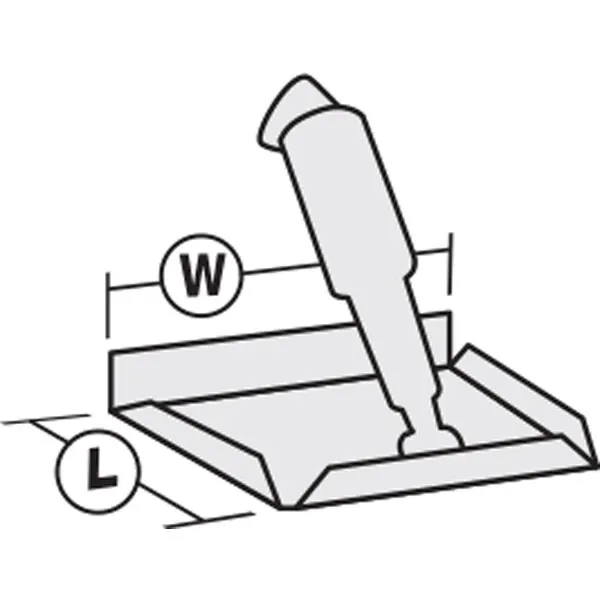

| Dimensions (L x W) | 12 inch (305mm) x 9 inch (228mm) |
| Hinge Height | 51mm |
| Note | 24 Volt Option Available. *All standard mount trim tabs kits are supplied in retail packages. |
Specifications
| SKU | 55427 |
|---|---|
| Barcode # | 9330420168624 |
| Brand | Lenco |
| Shipping Weight | 6.0000kg |

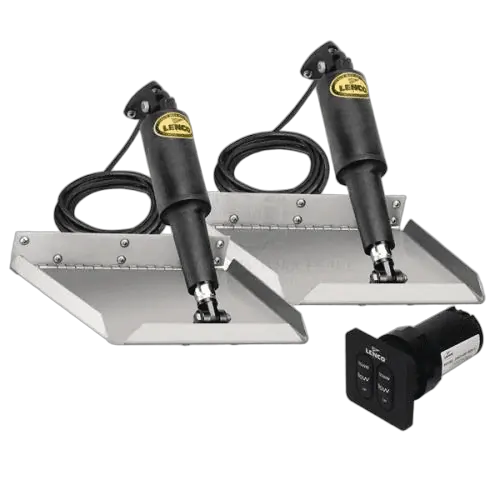

Lenco 12 inch x 9 inch Edge Mount Trim Tab & Standard Tactile Switch Kit
SKU: 55427
More infoMake 4 payments of $393.75 over 8 weeks and get it now!
Calculate Shipping
Description
| FEATURES |
| • Built-in auto retract. • 12 volt. • Waterproof key pad and solid state control box with waterproof plug and play Deutsch connectors. • 36 inch power pigtail for control box. Edge Mount Trim Tab Kit: • 2 x Edge Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with 1 inch turned up edges and a 5 degree taper on both sides to the trailing edge and 1/8 inch diameter hinge pin. • 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors. • 2 x actuator extension wiring harness (6m) with Deutsch connectors. • 1 x set of stainless steel fasteners. • 2 x upper mounting bracket with gland seal. • 2 x lower mounting bracket. • Lenco owner’s installation manual. • 5 Year Warranty (Recreational Use). |
| Part No. | 55427 |
| Min. Transom Height | 279mm |
| Approx. Boat Length | 4.9Mtr - 7.6Mtr |
| Finish | Matte |
| Volts | 12V |
| Switch Kit | Standard Tactile |
| Dimensions (L x W) | 12 inch (305mm) x 9 inch (228mm) |
| Hinge Height | 51mm |
| Note | 24 Volt Option Available. *All standard mount trim tabs kits are supplied in retail packages. |
Specifications
| SKU | 55427 |
|---|---|
| Barcode # | 9330420168624 |
| Brand | Lenco |
| Shipping Weight | 6.0000kg |
