FEATURES |

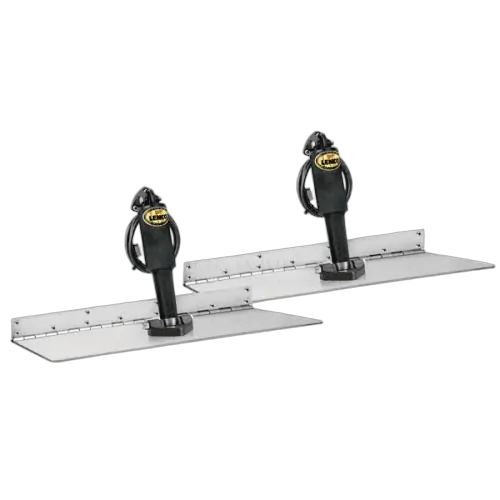

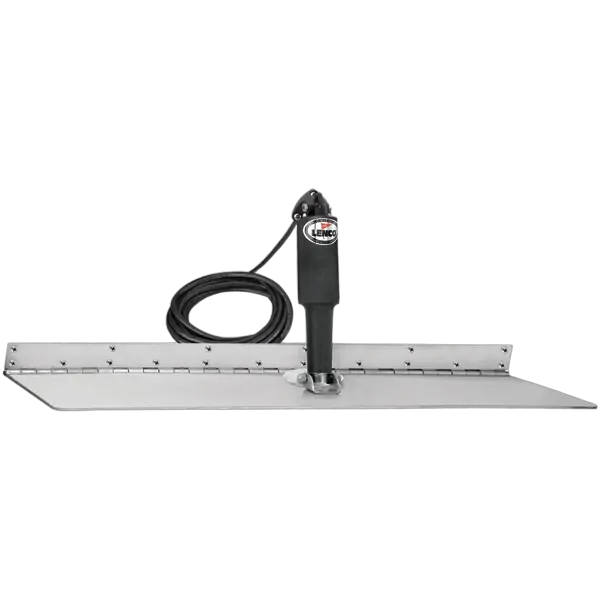

Kit Includes: • 2 x 12 volt XD actuators with 1.8m cable and Deutsch connectors. • 2 x stainless steel super strong plates (4.6mm thick). • 1 set of stainless fasteners. • 2 x upper mounting bracket with gland seal. • 2 x XD lower mounting bracket. • 2 x zinc anodes. • Installation manual. • Compliance: CE Certified . • 5 Year Warranty (Recreational Use). |
Part No. | 55470 |

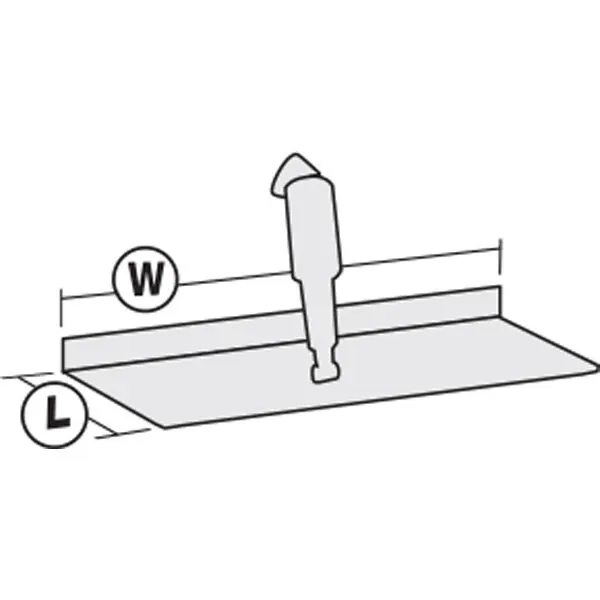

Length | 12 inch (305mm) |
Width | 30 inch (762mm) |
Hinge Height | 50mm |
Min. Transom Height | 356mm |
Approx Boat Length | 9.1Mtr - 14.6Mtr |
Finish | Matte |
Series | Super Strong Single Actuator |
Recommend Switch Kit | 55520 or 55522 |
Volts | 12V |
Note | Switches sold separately. Actuator extension harnesses not in kits, must be purchased separately (2 required). 24 Volt Option Available - Only with 55522 switch kit. |
SKU | 55470 |
---|---|
Barcode # | 9330420153996 |
Brand | Lenco |
Shipping Weight | 6.0000kg |
