Description
| FEATURES |

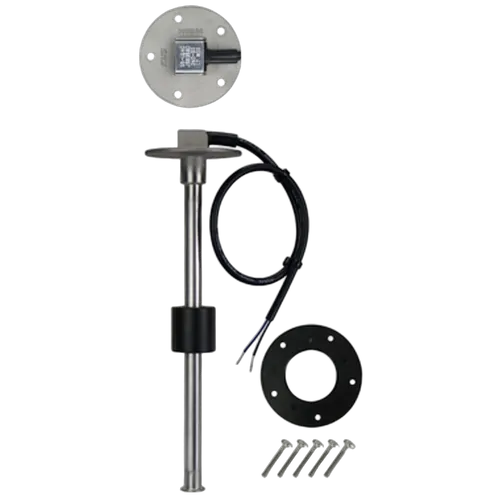

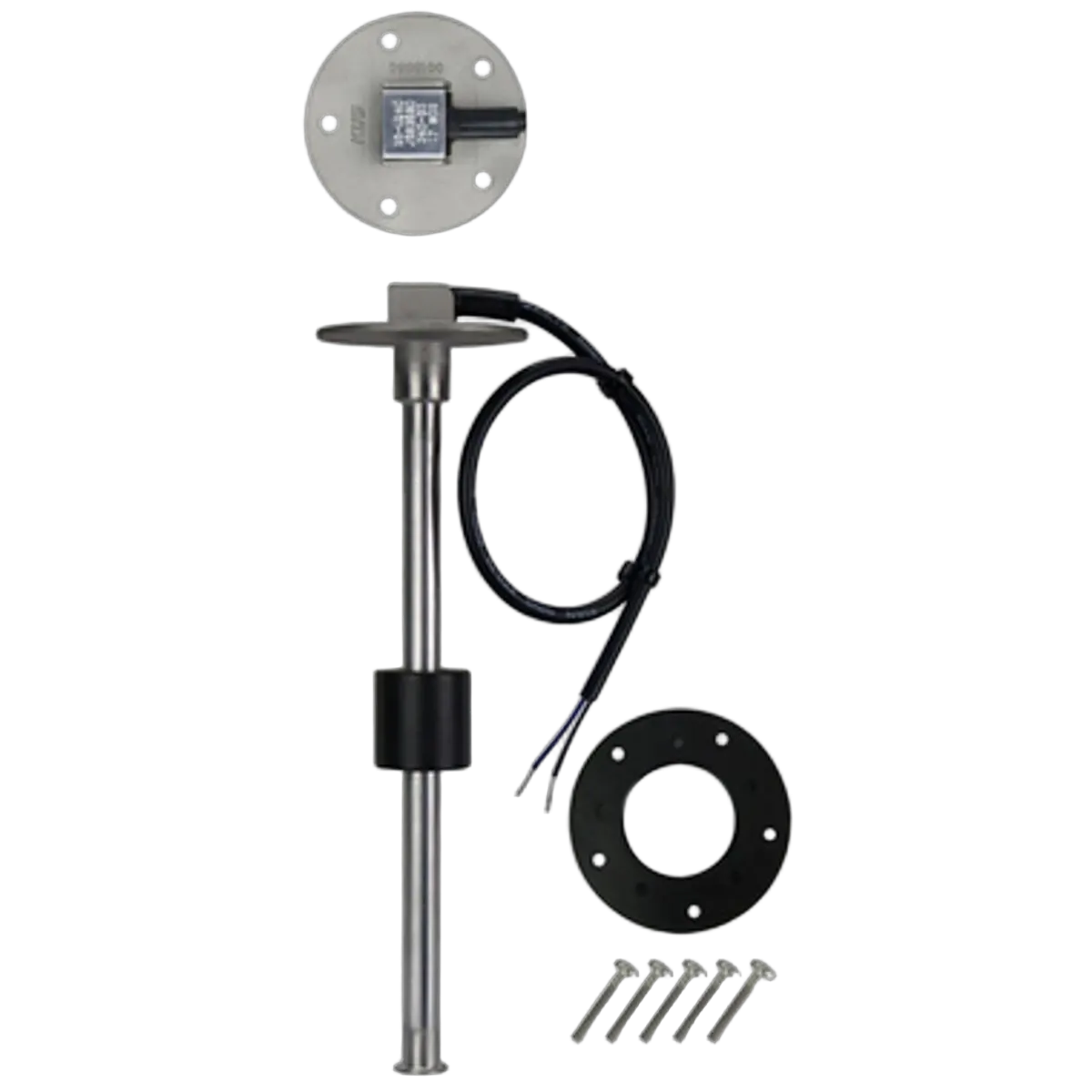

| • Utilising magnetic field to control the reed on-off switch, the sender features a long service life and protection against vibration. • SAE Standard: 5 mounting holes. • 316G stainless steel main body. • Rubber gasket provides a liquid tight seal. • IP67 rated. • Operating temperature: -40 Degree Celsius - +85 Degree Celsius. • 300mm tinned wire with a PVC material cover. • Stainless steel screws included. • 33mm float cut out. |
| Part No. | 40175 |
| Length | 175mm |
| Mount Style | 5 Hole |
| Mount Flange | Dia. 69mm |
| OHMS | 240-33 |

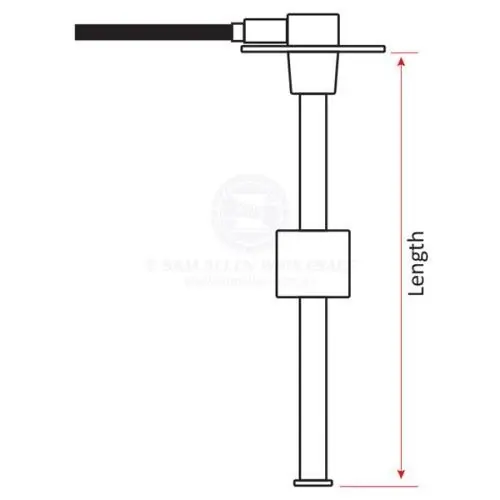

| Note | Special sizes available to order. Length is measured from underside of the flange to the base of the shaft. |
Specifications
| SKU | 40175 |
|---|---|
| Barcode # | 9330420111675 |
| Brand | Kus |
| Shipping Weight | 1.0000kg |
More infoMake 4 payments of $14.50 over 8 weeks and get it now!
Heavy duty, high-quality manufacturing ensures this is a product you can rely on for years to come!
