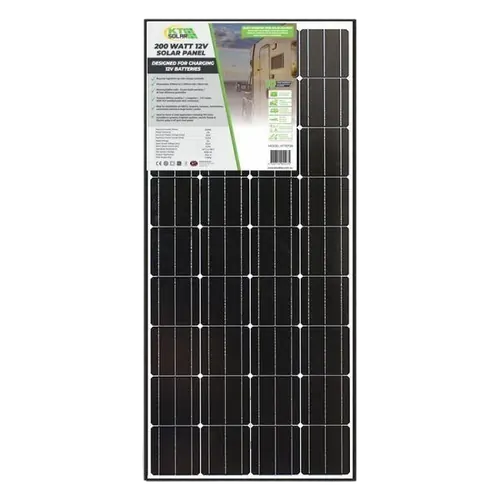

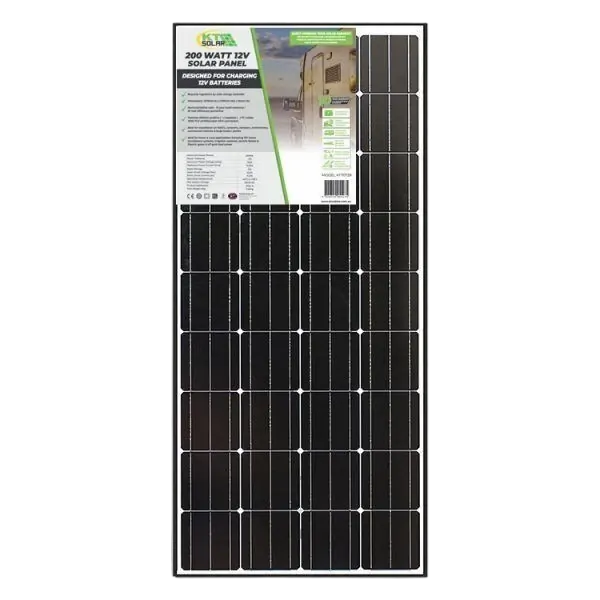

200W 12V solar panel is built predominantly for permanent installations on the roofs of 4WD, vans, caravans, campers, motorhomes, RV’s, commercial service vehicles, large boats & yachts, powering 12V sealed lead-acid batteries that power devices such as 12V fridges, air-compressors, lighting and other 12V devices.
This solar panel is also ideal for home & rural applications including 12V home surveillance systems, irrigation systems, electric fences, electric gates & off-grid shed power.
Requires regulations from solar charge controller.
Suited to KT Solar Controller Model No. KT70757 – 20 Amp PWM Solar Charge Controller.
Features 900mm PV cables terminated to male & female TUV certified solar MC4 connectors.
Dimensions & Weight:
- Dimensions (Height): 1476mm
- Dimensions (Length): 670mm
- Dimensions (Depth): 40mm
- Panel Weight: 11.50Kg
Features:
- Ideal for installation on 4WD’s, caravans, campers, motorhomes, commercial vehicles, boats & yachts
- Ideal for home and rural applications including off-grid shed power
- Requires regulation by solar charge controller
- Direct connection to batteries with 900mm PV cables with positive (+) and negative (-) TUV certified MC4 connectors
Warranty & Guarantees:
- 10 Year Warranty on Manufacture & Build
- 25 Year Efficiency Guarantee
- National Warranty Programme
Specifications:
Power Tolerance | +3% |
Maximum Power (Pmax) | 200Wp |
Maximum Power Voltage (Vmp) | 19.6V |
Maximum Power Current (Imp) | 10.20A |
Rated Voltage | 12V |
Open Circuit Voltage (Voc) | 23.2V |
Short Circuit Current (Isc) | 11.27A |
Operating Temperature | -40°C to +85°C |
Product Application | Class A |
Max System Voltage | 1000V DC |
SKU | KT70729 |
---|---|
Barcode # | 9320729055275 |
Brand | KT Cable Accessories |
Shipping Weight | 12.0000kg |
Shipping Width | 1.470m |
Shipping Height | 0.040m |
Shipping Length | 0.670m |
Shipping Cubic | 0.039396000m3 |
