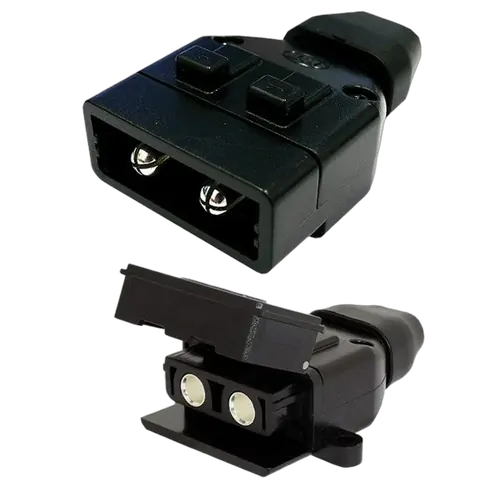

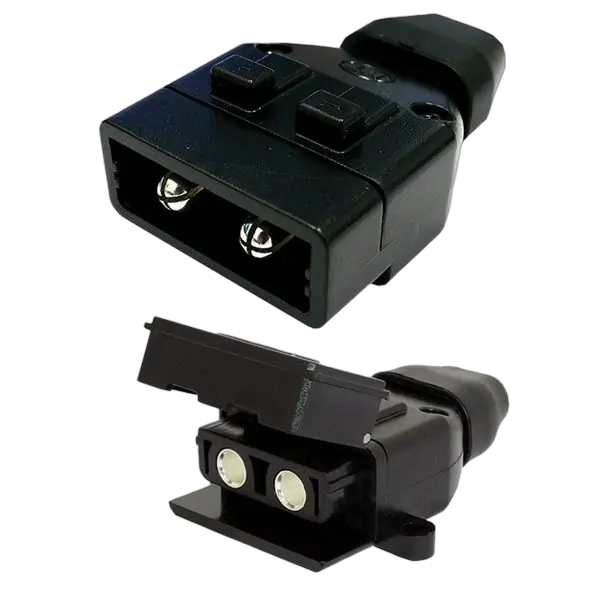

The KT 50 Amp Trailer Plug & Socket (Model No. KT70027) serves a similar purpose to the popular Anderson Plug or Heavy Duty Connector; however no crimping or soldering is required during installation.

The 50 Amp, 2 Pin Trailer Plug and Socket is an integral part of a specialised charge circuit. It essentially allows the passage of charge from the vehicle’s battery to pass through to an in-board one in a caravan, boat or 4×4. In effect they are exactly the same as the dual battery system you’ll find fitted to many 4WD vehicles.

This circuit is incredibly simple and is generally run from the vehicle’s battery directly through to the caravan, boat or 4×4, via a circuit breaker arrangement.

The KT 50 Amp, 2 Pin Plug and Socket contains stainless steel Phillips head screws to secure cable inside the wire entries and silver plated copper pins to ensure a strong power connection. The KT 50 Amp Trailer Plugs and Sockets are suitable for use with 8mm₂ Cable (8B&S).

The Trailer Plug & Socket are tough, durable and built to withstand harsh weather conditions and environments for example; operating by coastal waters where corrosion could normally be a problem. KT uses corrosion proof alloy in all metal trailer plugs to prevent this issue.

Features:

• 2 Pins rated at 50Amps
• Durable UV treated poly-carbonate housing
• Spring loaded dust-proof cover (Socket only)
• No crimping or soldering required
• Stainless steel Phillips Head screws
• Silver plated copper pins

Specifications:

• 2 pins rated to 50A at 12V
• Suits cable up to 8mm2 ( 8B&S )

Warranty

12 Month Warranty on any manufacturing defects.
