• Works with MOST 1996 and later OBD2 compliant vehicles (See 'Application Listing' in the downloads section below)
• Supports all OBD2 protocols including the newer (CAN) Controller Area Network
• Reads your (DTC) Diagnostic Trouble Codes for identification
• Turns off check engine light (MIL)
• Erases (DTC) trouble codes and resets the OBD2 system
• Includes a user manual with a comprehensive list of the most current trouble codes


Unfortunately, the OBD2 protocol was not embraced in all aspects by one of the most popular cars in Australia, the VR-VZ (1993-2007) Commodore.  This tool will come up with a link error if you try to use it on a Commodore of the below variants;

Holden Commodore: VT – VX – VY – VZ V8 all use the OBDII protocol but only for engine related data.

All other body data is handled by the lesser utilised ALDL to communicate with the body control module, radio, climate control etc.

Holden Commodores from VT-VZ (1997-2004) do not primarily use the OBD2 protocol but instead use a “ALDL”.  Below is a summarized table of the supported protocols for each Holden Commodore:

VR Commodore – ALDL
VS Commodore – ALDL
VT Commodore – ALDL, OBD2 – V8’s only – VPW
VX Commodore – ALDL,  OBD2 – V8’s only – VPW
VY Commodore – ALDL,  OBD2 – V8’s only – VPW
VZ Commodore – ALDL, OBD2 – CAN 11bit
VE Commodore – OBD2 (CAN 11bit, CAN 29bit)

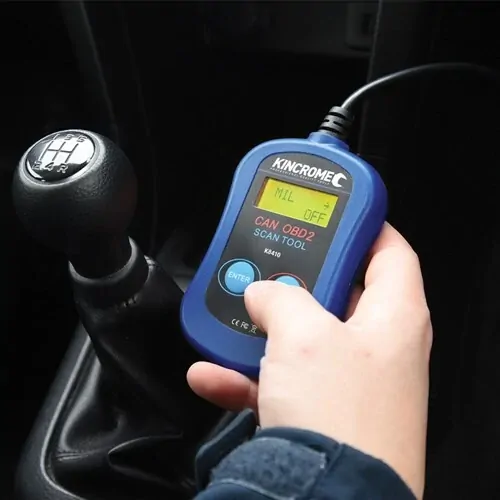

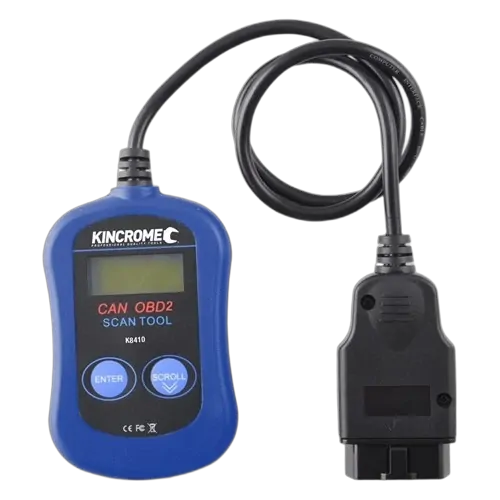

VE and VF models only use the OBD2 protocol and can take full advantage of the K8410 OBD2 Diagnostic Scan Tool.
