Description 10" CompR 4 Ohm

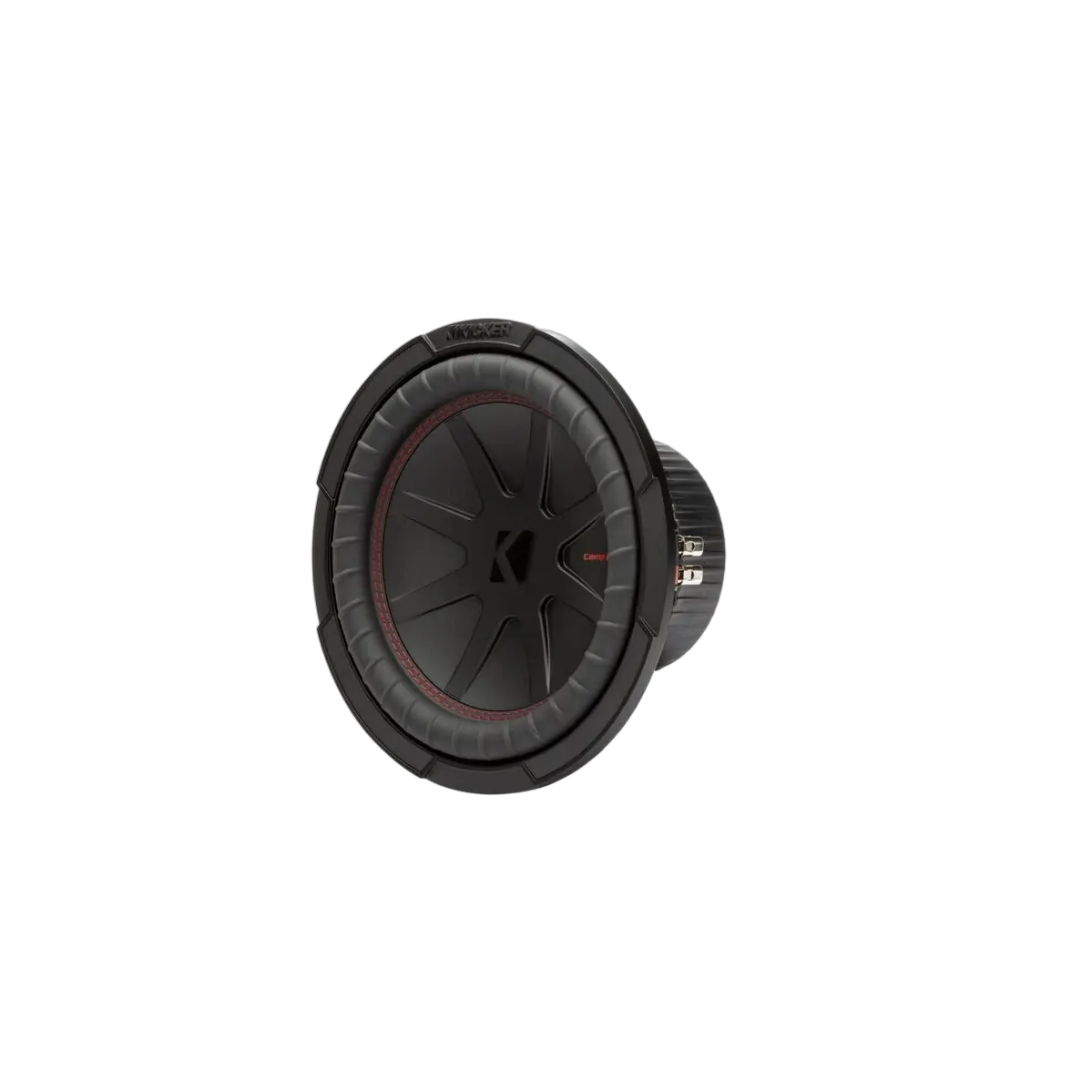

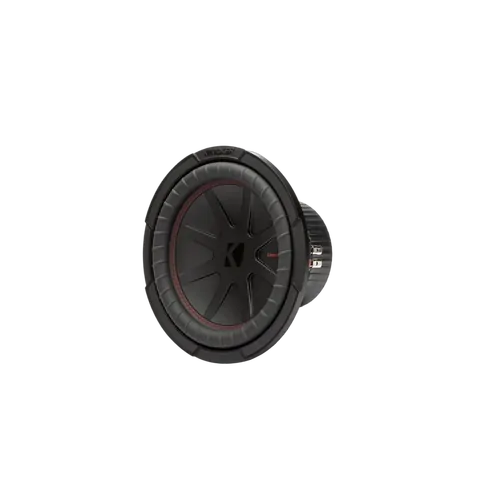

The CompR 10-Inch Subwoofer is a 4Ω dual voice coil design, making it easy to get the most out of your amp.

An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion. To make our subs even more reliable, KICKER engineers developed Forced Air Cooling to help our subs run 25% cooler than before.

The CompR 10-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power. See below for more details.

Specifications Thiele/Small Parameters 48CWR104 T/S Parameters SIZE [in, cm]: 10, 25 IMPEDANCE [Ohms]: 4 DVC Recommended Amplifier Power (watts RMS) 400 Peak Power (watts, per ANSI/CTA-2031-A) 800 SENSITIVITY [dB 1w/1m]: 84.6 MOUNTING DEPTH [in, cm]: 5-1/4, 13.3 MOUNTING DIAMETER [in, cm]: 9-1/8, 23.1 MIN SEALED BOX VOL [cu. ft, L]: 0.8, 22.7 MAX SEALED BOX VOL [cu. ft, L]: 1.25, 35.4 MIN VENTED BOX VOL [cu. ft, L]: 1.25, 35.4 MAX VENTED BOX VOL [cu. ft, L]: 1.75, 49.6 *Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
