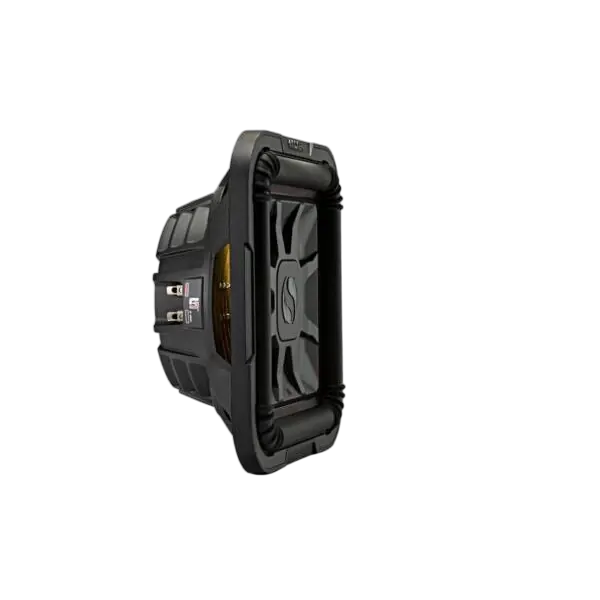

12" L7T 4 Ohm

The L7T 12-inch Subwoofer is a true-bass, thin subwoofer with a pair of 4Ω voice coils.

With our custom SoloKon™ technology and the L7T’s unique interior support system, the sub sounds fat – but keeps it thin! Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.

Features:

Uses a Sealed or Ported Enclosure Square Sub Design Moves 20% More Air Than Round Subwoofers Easily Mounts Under or Behind a Seat Dual Voice Coil Design Ribbed Santoprene Surround Resists Heat And Degrading Bumped Top Plate For More Excursion & Smoother Performance SoloKon™ Cone With 360-Degree Back Bracing UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation Durable Steel Basket Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!

*The L7T 12-inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power. See below for more details.

Specifications Thiele/Small Parameters 46L7T124 T/S Parameters Size (IN.,CM) 12, 30 Impedance (OHMS) 4 DVC Recommended Amplifier Power (watts RMS) 600 Peak Power (watts, per ANSI/CTA-2031-A) 1200 Sensitivity (dB 1w/1m) 86.54 Frequency Response (Hz) 25-100 Mounting Depth (IN.,CM) 4-1/8, 9.5 Mounting Cutout, Square (IN.,CM) 11-1/16, 28.1 Min Rec Sealed Box Volume (CU. FT., Liters) .55, 15.6 Max Rec Sealed Box Volume (CU. FT., Liters) 1.25, 35.4 Min Rec Vented Box Volume (CU. Ft., Liters)** 1.75, 49.6 Max Rec Vented Box Volume (CU. Ft., Liters)** 2.25, 63.7 What's in the box? one 12-inch subwoofer, one owner's manual, two stickers
