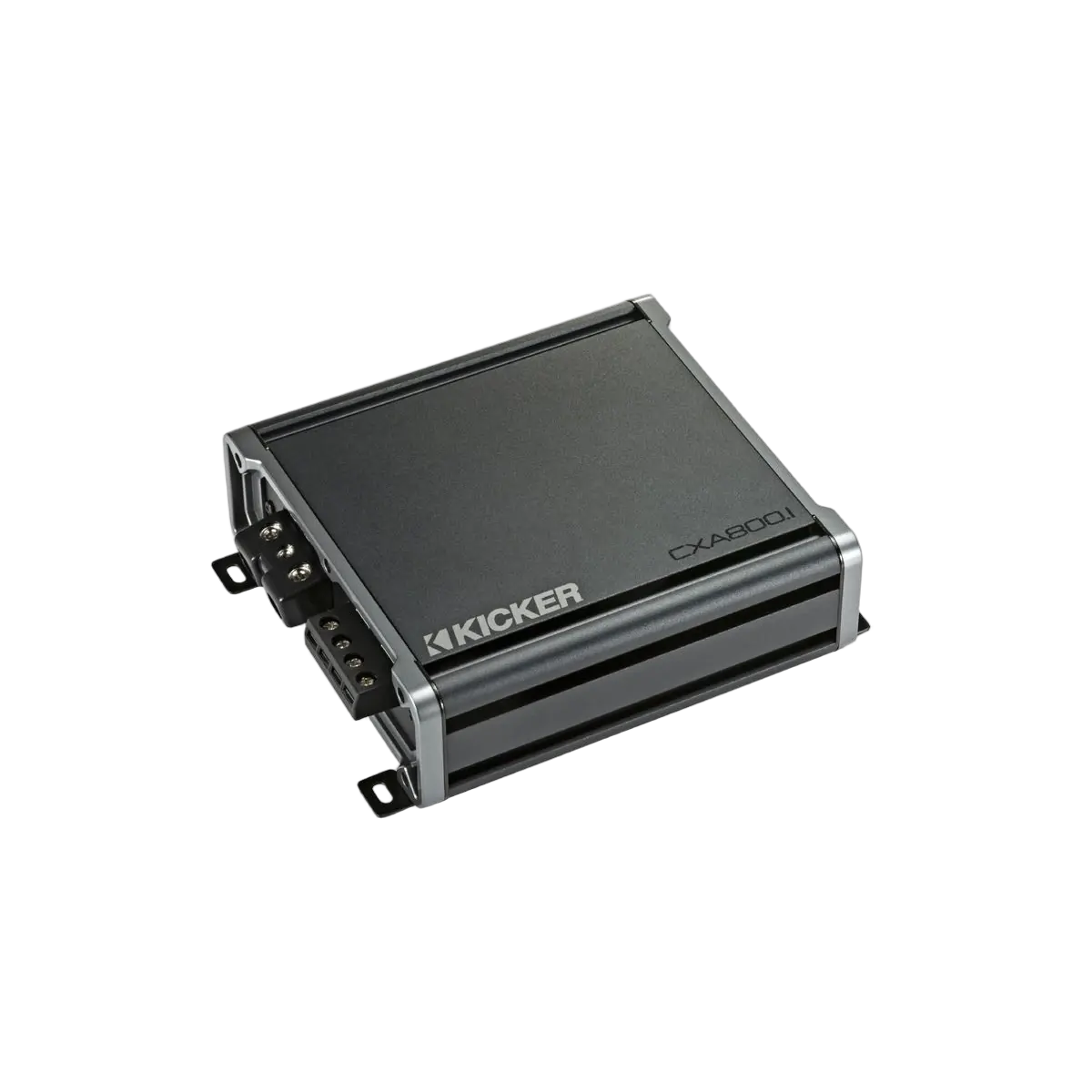

This CX-Series Mono Amp is now one-ohm stable, giving you even more power and wiring options for your system! Using a Class-D power plant, the CXA800.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump with a simple turn of the optional CXARC Remote Bass Controller. A powerful 12dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection. Use the full-range outputs to expand your system with other bass amps, or a full-range amp to complete your system.

CX-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!

Expand your system with full-range, RCA pass-through outputs, then choose a “standard” mount or a cool vertical mount with the included hardware.

This CX.1 amplifier delivers as much as 800 watts into one bass channel. See below for more details.

Specifications MODEL CXA800.1 Power (watts/ch) 4 Ohm 300×1 Power (watts/ch) 2 Ohm 600×1 Power (watts/ch) 1 Ohm 800×1 CXRC Remote Bass Capable (sold sep.) yes Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x …L) 8-1/8, 20.6 Frequency Response (Hz): 25-200, +0/-1dB Input Sensitivity: 250mV-10V (Low Level) 1V-40V (High Level) Signal-to-Noise Ratio: >95dB, a-weighted, re: rated power Active Crossover: Variable Lo-pass 50Hz–200Hz, 12dB/octave Subsonic Filter: 25Hz @24dB/octave KickEQ™ Boost Variable 0-6dB @40Hz
