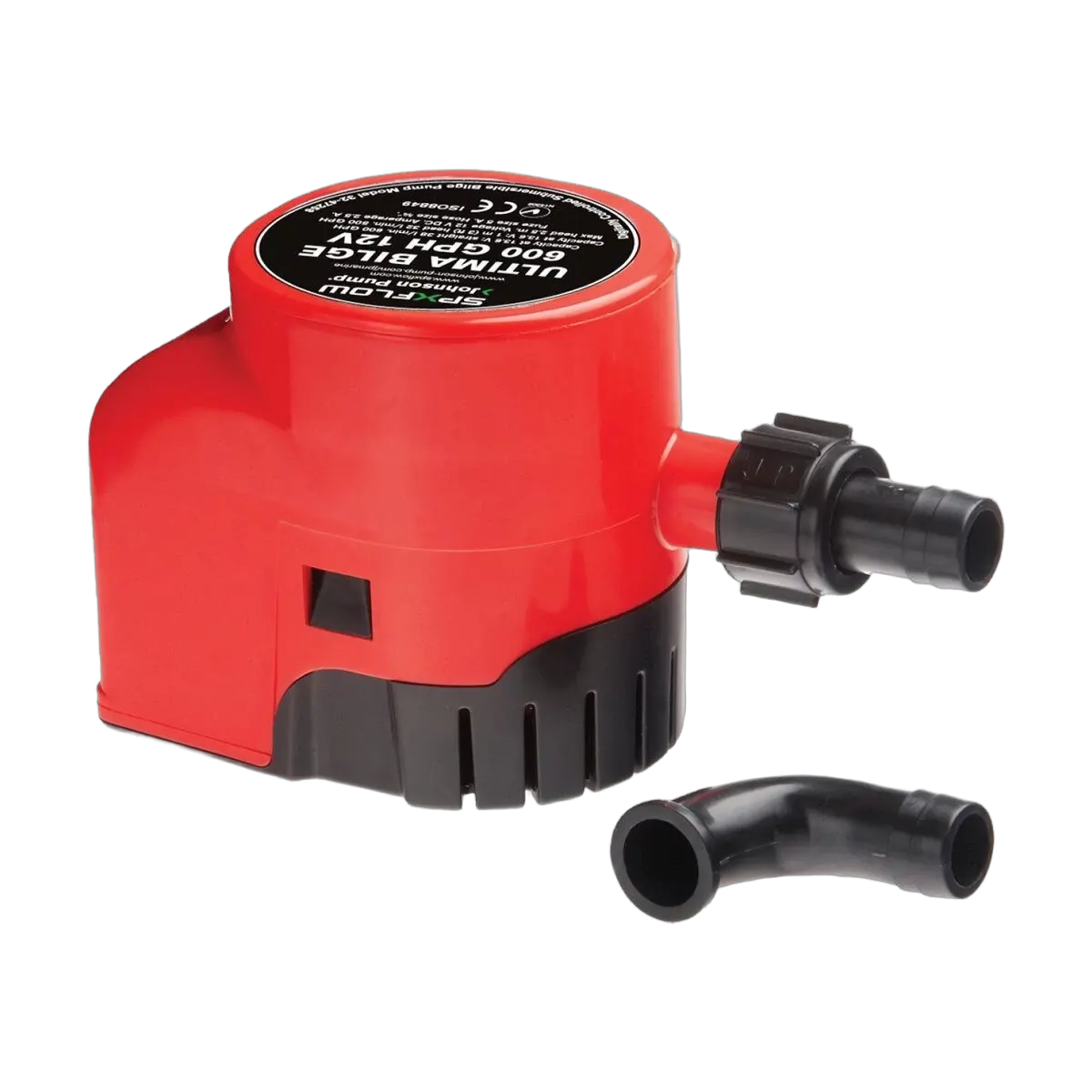

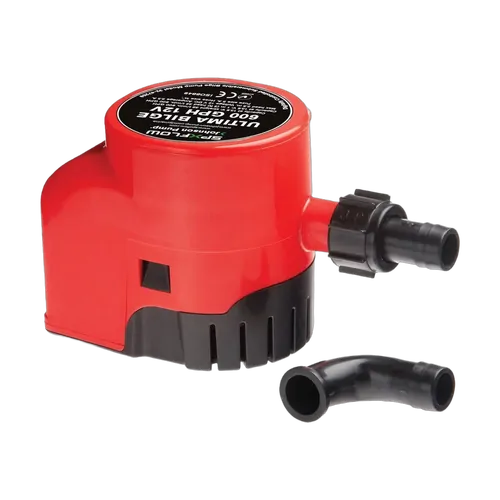

Johnson Pump Ultima Bilge Pump 1250Gph -12V

Description
Specifications

Sleek, reliable and compact unit with integrated switch (Ultima Switch&trade) ready to install and run for years of unerring service. Available in 600-800-1000-1250 GPH versions. Voltage is 12V DC. All Ultima Bilge™ pumps have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. Where applicable the pumps are supplied including both a straight and a 90° smooth elbow Dura-Port and a removable check valve.

BLA CODE	MODEL	CAPACITY OPEN FLOW L/M	CAPACITY OPEN FLOW GPH	CAPACITY @1M HEAD L/M	CAPACITY @1M HEAD GPH	POWER V	POWER AMPS	FUSE SIZE	HEIGHT	WIDTH MM	OUTLET DIA. MM


131830	600GPH Ultima	38	600	32	500	12	2.5	5A	105	82	19
131832	800GPH Ultima	51	800	38	600	12	3	5A	105	82	19
131834	1000GPH Ultima	64	1000	44	700	12	3.2	5A	105	82	19
131836	1250GPH Ultima	79	1250	51	800	12	3	3A	117	82	28 and 32

N.B. As with all submersible electrics, attention is needed during installation to ensure that wiring connections remain above water level. Specified output is US gph open flow.

Specifications

SKU	131836
Barcode #	7330717012720
Brand	Johnson
Shipping Weight	0.8000kg
Assembled Length	0.160m
Assembled Height	0.160m
Assembled Width	0.130m

Model

$252.99

SAVE $36.91

DON'T PAY RRP $289.90

Description

BLA CODE	MODEL	CAPACITY OPEN FLOW L/M	CAPACITY OPEN FLOW GPH	CAPACITY @1M HEAD L/M	CAPACITY @1M HEAD GPH	POWER V	POWER AMPS	FUSE SIZE	HEIGHT	WIDTH MM	OUTLET DIA. MM


131830	600GPH Ultima	38	600	32	500	12	2.5	5A	105	82	19
131832	800GPH Ultima	51	800	38	600	12	3	5A	105	82	19
131834	1000GPH Ultima	64	1000	44	700	12	3.2	5A	105	82	19
131836	1250GPH Ultima	79	1250	51	800	12	3	3A	117	82	28 and 32

N.B. As with all submersible electrics, attention is needed during installation to ensure that wiring connections remain above water level. Specified output is US gph open flow.
