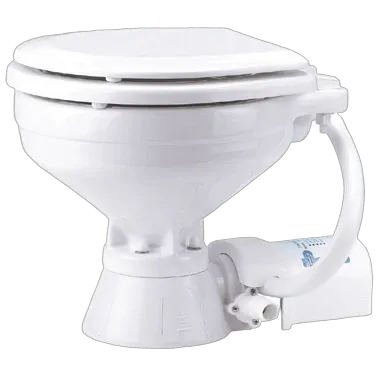

Jabsco Standard Electric Toilet - Series 37010 - 24 Volt

Standard Compact Bowl - 37010-0096 (J10-106)

JABSCO Standard Electric Toilets - Series 37010

• J10-106 - 24 Volt 9 Amp - Standard Bowl - Jabsco 37010-0096
• Standard Compact Bowl Electric Toilet
  Size : 352mm wide x 450mm deep x 350mm high

Heavy duty, top quality electric marine toilets with many features for high  performance, comfort, easy cleaning and attractive appearance.

Gives the ease and  convenience of electric operation at an affordable price.

• Pure white vitreous china bowl, contoured base, covered motor and fastening covers all contribute to easy cleaning and attractive appearance
• Standard compact sized bowl where space is at a premium or large household type bowl with large seat & lid for comfort
• Heavy duty dual flush pump self-primes up to 1.2 metres vertical lift and grinds waste as it pumps, with stainless macerator
• May be mounted 1 metre below the waterline
• Equally suitable for overboard or holding tank discharge
• Built-in backflow preventer in discharge housing
• Stainless steel and bronze fastenings for reliable salt water service
• Supplied complete with heavy duty push button switch.
• Plumbing connections suit both 16mm (5/8”) & 20mm (3/4”) inlet hose and both 25mm (1”) and 38mm (1 ½”) outlet hose.
• Standard compact bowl or large bowl toilets in both 12 volt and 24 volt.
• For installations below the static or heeled waterline vented loops should be fitted – also use a solenoid valve.

Options:

Standard Compact Bowl Electric Toilet - Size : 352mm wide x 450mm deep x 350mm high

• J10-105 12 volt 16 amp standard bowl (Jabsco 37010-0090)
• J10-106 24 volt 9 amp standard bowl (Jabsco 37010-0096)

Large Bowl Electric Toilet, Large Seat and Lid - Size : 380mm wide x 490mm deep x 370mm high

• J10-107 12 volt 16 amp large bowl (Jabsco 37010-1090)
• J10-108 24 volt 9 amp large bowl (Jabsco 37010-1096)
