Description
A range of high quality, high volume, heavy duty sliding vane pumps with continuously rated motors for fast fuel transfer. Vane pump operation is impervious to diesel and oils.
- A Suitable for diesel, kerosene, paraffin and hydraulic oils up to 50 centi stokes
- A Suitable for diesel transfer on boats and other equipment such as excavators, cranes, pavers, tractors, generators, agricultural machines etc.
Model VRO50 50 LPM Capacity
- 50 litres per minute at 3 metre head
- Self priming up to 3 metres vertical
- Continuously rated up to 3 Mtr head
- Suitable for tanks 300 - 600 litres
- 8 metre maximum head A 3/4" BSP threaded ports
- On / off switch on motor
Service Kits (RWB-J45-157) also available.
Bronze hose adaptors shown are not included - sold separately. RWB-1476
| PART NUMBER | VOLTAGE | SUITS TANK SIZE | LITRES PER MINUTE | THREADED PORT SIZE | SELF PRIMING SIZE |
|---|---|---|---|---|---|
| RWB-J40-146 | 12v | 300L - 600L | 50LPM | 3/4" | Up to 3m Vertical |
| RWB-J40-147 | 24v | 300L - 600L | 50LPM | 3/4" | Up to 3m Vertical |
Specifications
| SKU | J40-147 |
|---|---|
| Barcode # | 671880551618 |
| Brand | Jabsco |
| Shipping Weight | 6.0000kg |

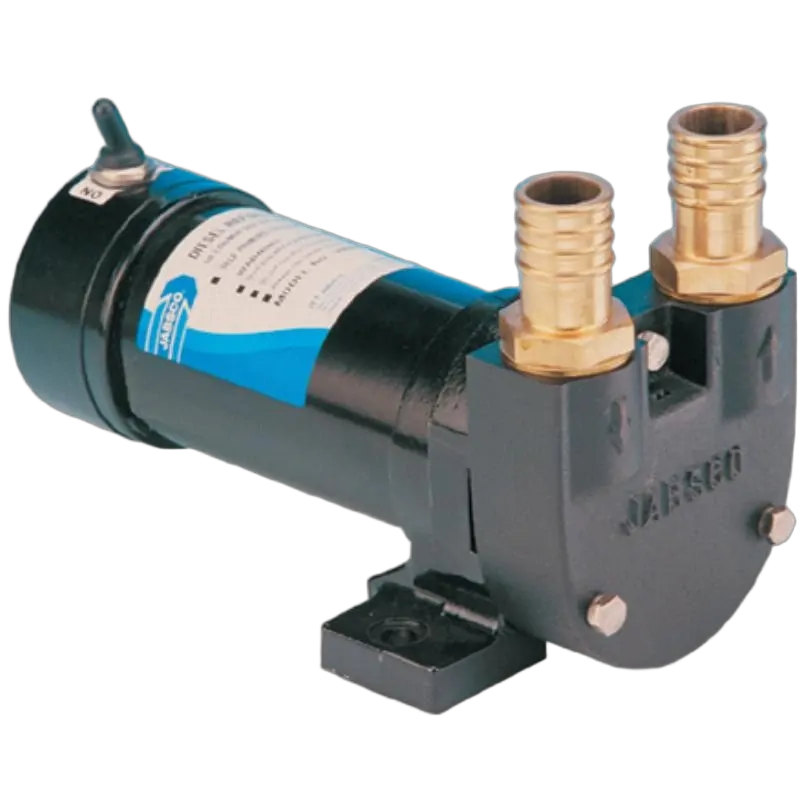

Jabsco Fuel Transfer Vane Pump High Volume 50LPM 24v
SKU: J40-147
More infoMake 4 payments of $254.50 over 8 weeks and get it now!
