A range of high quality, high volume, heavy duty sliding vane pumps with continuously rated motors for fast fuel transfer. Vane pump operation is impervious to diesel and oils.

  •  Suitable for diesel, kerosene, paraffin and hydraulic oils up to 50 centi stokes
  •  Suitable for diesel transfer on boats and other equipment such as excavators, cranes, pavers, tractors, generators, agricultural machines etc.

Model 23870 35 LPM Capacity

  •  35 litres per minute at 3 metre head
  •  Continuous duty cycle 35 minutes
  •  Suitable for tanks to 300 litres
  •  Self priming up to 2.7 metres vertical
  •  6 metre maximum total head
  •  On/off switch on motor
  •  1/2" BSP threaded ports

Bronze hose adaptors shown are not included - sold separately. RWB-1475

PART NUMBER VOLTAGE CAPACITY SUITS TANK SIZE
RWB-J40-156 12v 35 LPM To 300L
RWB-J40-157 24v 35 LPM To 300L
SKU J40-157
Barcode # 671880551250
Brand Jabsco
Shipping Weight 6.0000kg

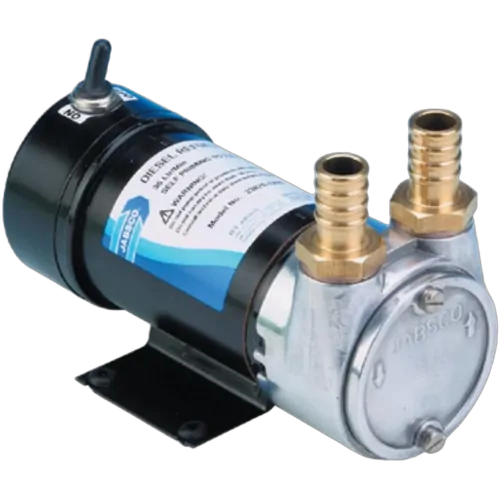

Jabsco Diesel Fuel Transfer Vane Pump High Volume 35L 14v

SKU: J40-157
Sale price
$654.99
RRP $711.00
Earn 6,540 Outback Rewards Points
Sale price
$654.99
DON'T PAY RRP $711.00
PayPal Checkout
4 payments of $163.75

afterpay More info.

Make 4 payments of $163.75 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $163.75

Calculate Shipping

A range of high quality, high volume, heavy duty sliding vane pumps with continuously rated motors for fast fuel transfer. Vane pump operation is impervious to diesel and oils.

  •  Suitable for diesel, kerosene, paraffin and hydraulic oils up to 50 centi stokes
  •  Suitable for diesel transfer on boats and other equipment such as excavators, cranes, pavers, tractors, generators, agricultural machines etc.

Model 23870 35 LPM Capacity

  •  35 litres per minute at 3 metre head
  •  Continuous duty cycle 35 minutes
  •  Suitable for tanks to 300 litres
  •  Self priming up to 2.7 metres vertical
  •  6 metre maximum total head
  •  On/off switch on motor
  •  1/2" BSP threaded ports

Bronze hose adaptors shown are not included - sold separately. RWB-1475

PART NUMBER VOLTAGE CAPACITY SUITS TANK SIZE
RWB-J40-156 12v 35 LPM To 300L
RWB-J40-157 24v 35 LPM To 300L
SKU J40-157
Barcode # 671880551250
Brand Jabsco
Shipping Weight 6.0000kg
