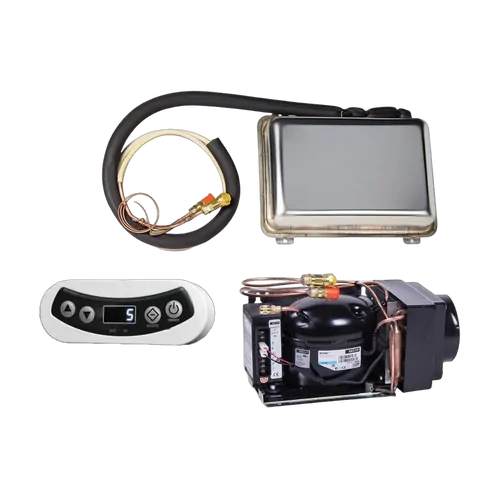

Isotherm ITC+ Systems - Air-Cooled.

12/24 volt ITC+ controlled, air-cooled refrigeration unit suitable for mounting in new or existing cool boxes. Using the ITC logic, a stainless steel holding plate and air-cooled compressor are ideal for when battery power is at a premium. The stainless steel holding plate, with an average holding temperature of -9ºC, can be mounted at any angle high up in the cool box for convenience. It is important that the compressor compartment is well ventilated aiding the compressor to blow cool air through the condenser.

Features:

• Air-cooled compressor for effective cooling
• ITC Display for control of the fridge/freezer
• ITC and ECO system Logic for power saving efficiencies
• Stainless steel holding plate for durability

Isotherm Intelligent Temperature Control (ITC)

Isotherm Intelligent Temperature Control (ITC) features a digital display that clearly and simply displays, controls and regulates the temperature within the refrigerated compartment from the outside. The ITC system and display are dedicated to vessels that demand an appealing interface, refined product interaction and a reduction in on board power consumption. The ITC Display provides an instant reading of actual temperatures within the fridge or freezer, and temperatures can be changed with a simple press of the up or down keys. It allows the fridge or freezer to be turned on/off without opening, displays faults and 3 battery protection levels for additional user control. It also allows manual activation of either the ECO and ITC functions for a user control.

The ITC function provides standard smart features such as:

• Soft Start which allows for effective, safe start-up of the compressor
• Fast cooling, which is achieved by running the compressor and maximum speed to drop the temperature quickly
• Over cooling, which is active by the microprocessor to accumulate cold when there is a surplus of energy (Battery in charge mode, AC power available)

The ECO function is manually activated by the user, and once activated the fridge or freezer will operate at minimum power by reducing the compressor to 2500RPM. Achievement of the set temperature isn’t guaranteed in this mode as the priority is shifted to reduce power consumption and conserve the batteries capacity.

The ITC is compatible with both DC and AC/DC Isotherm fridge and freezers equipped with the current generation SeCOP control modules (101N0212 & 101N510) which are standard on Isotherm Fridges.

N.B. Running engine for ½ to 1½ hours daily reduces current consumption by 50-90%. Reduce recommended box volume by 10-20% for tropical conditions.
