Isotherm Refrigerator - Cruise 130.
Isotherm Cruise Refrigerators combine technological innovation with sophisticated, yet practical design.

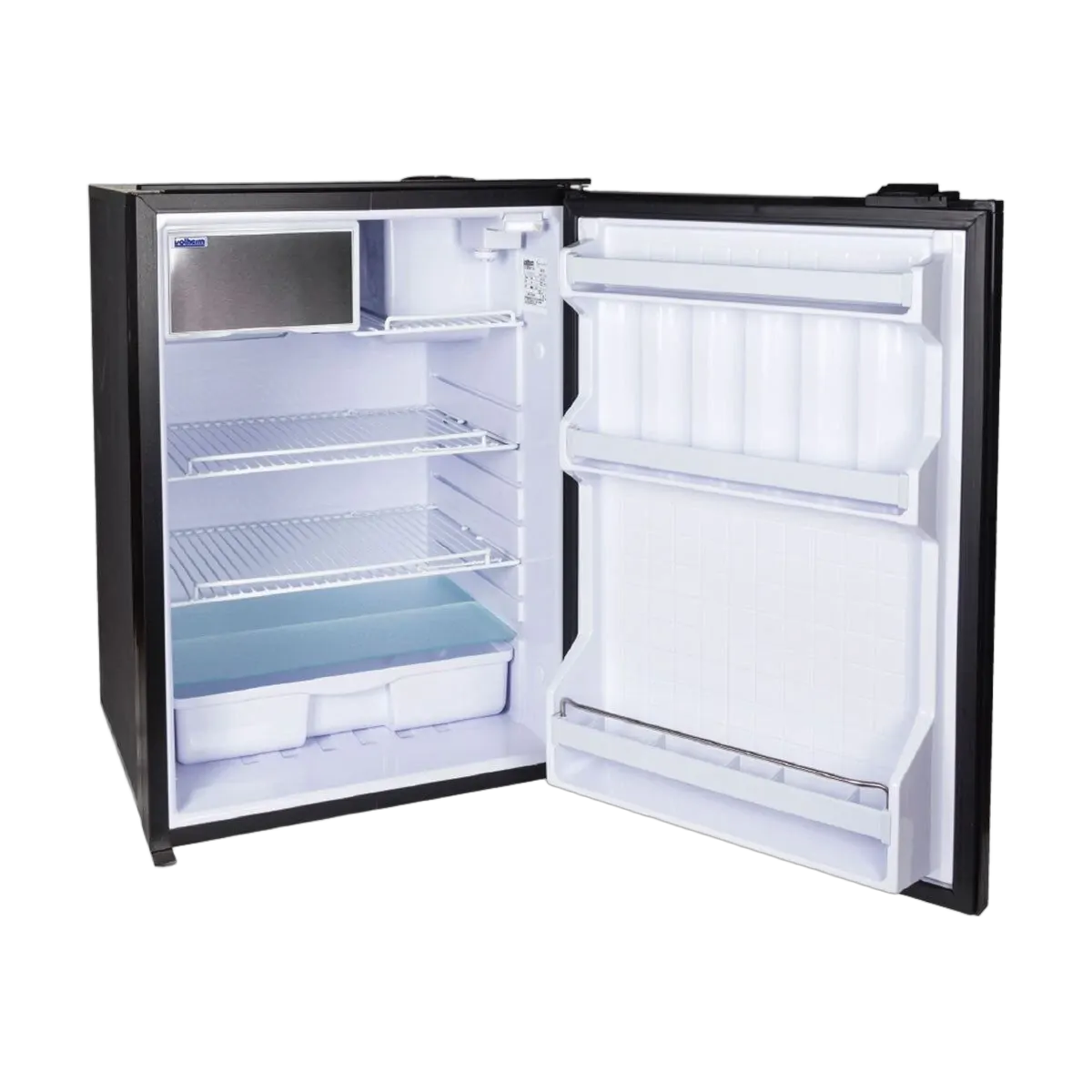

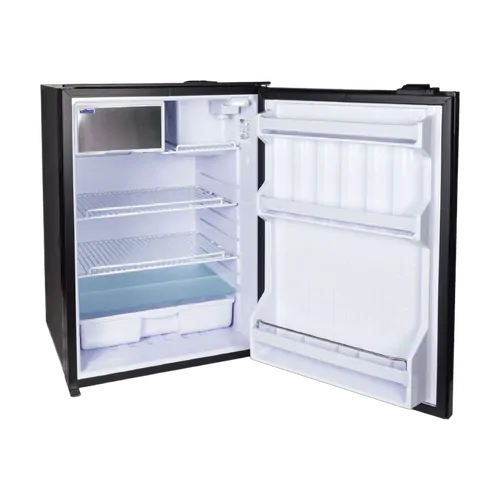

The CR 130 (381749) is a traditional fridge providing a 6L freezer compartment, three adjustable shelves and a vegetable bin at the bottom. It is equipped with interior LED light and a fan-cooled compressor as standard.
The CR 130 D (381752) provides an extra space for drinks instead of the standard freezer compartment.
Features:
- Freezer compartment
- Equipped with interior light
- Very low power consumption
- 12 / 24 volt Danfoss / Secop compressor
- Door with a safety lock and magnetic rubber seal
- Fan-cooled 12 / 24 volt Danfoss / Secop compressor
- One piece inner lining of food-quality, high density plastic with rounded corners for easy cleaning
- Constructed of corrosion resistant materials
- Available with ITC (Intelligent Temperature Control) and SEC (Smart Energy Control) (CR 130 only)
NOTE: In order to add accessories, please check out the type of installation frame you need for the fridge. You can either select BLA-381909 (Installation Frame) or BLA-381912 (Flush Installation Frame)
Part Number | Type | Volume | Dimensions (H x W x D) | Weight | Power Consumption | Danfoss / Secop compressor type | Freezer Volume | Freezer Temperature | Cut-Out (H x W) |
---|---|---|---|---|---|---|---|---|---|
BLA-381749 | CR 130 | 130L | 746mm x 527mm x 455mm* | 23kg | 440 W/24 hours | BD35F | 8L | -6°C | 751mm x 532mm |
BLA-381752 | CR130 Drink | 130L | 746mm x 527mm x 520mm* | 27kg | 440 W/24 hours | BD35F | - | - | 751mm x 532mm |
*Door thickness (to be added): 40 mm
- Power consumption W / 24 h in operation on 12 Volt with +5 °C in the refrigeration space, ambient temperature +25 °C according to the Standards ISO 15502:2005 and EN 153:2006
- Refrigerators manufacturing tolerances -2 / +4 mm
- Dimensions include refrigerator’s feet
- With AC / DC optional kit, depth may increase
- According to EN 603335 - 1 regulation, the inside walls of the furniture housing the refrigerator must be distant from the fridge by 20 mm per side and 50 mm from the top
- Please refer to the installation manual for further technical / installation details
- Most Isotherm fridges can also benefit from a retro-fitted Isotherm Smart Energy Control kit. On some models it reduces battery consumption by up to 50%
- Specification changes may be made without prior notice
SKU | 381749 |
---|---|
Barcode # | 8056039155985 |
Brand | Isotherm |
Shipping Weight | 28.7000kg |
Shipping Width | 0.650m |
Shipping Height | 0.820m |
Shipping Length | 0.650m |
