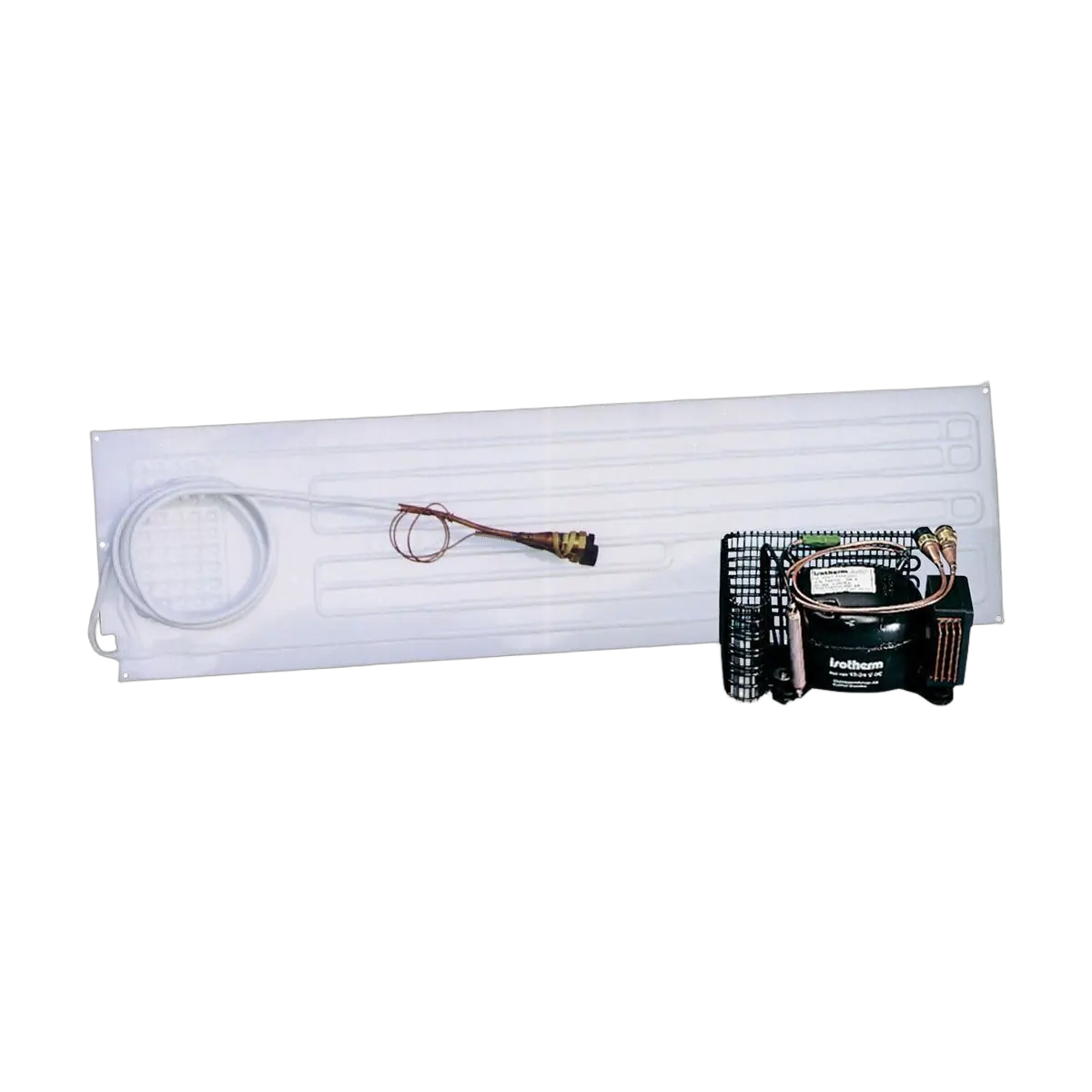

Isotherm Classic Compact Systems - Air Cooled - Flat Evaporator Type.
Use the kit to create a fridge or a freezer of the volume specified below.
12-24 volt fan cooled refrigeration units suitable for mounting in new or existing ice boxes. The fan cooled compressor can be mounted up to two metres away from the evaporator box or plate. Box type ‘O’ evaporators provide an internal freezer compartment as well as cooling the entire refrigeration compartment.
Units are supplied pre-gassed with re-openable quick-fit connectors for ease of installation. Flat evaporators can be carefully formed to suit box size. Low voltage cut off and radio interference suppression are fitted as standard. Temperature is adjusted by a rotary thermostat incorporating an on/off switch.
Connection of the evaporator plate to the compressor requires only a 30mm hole to be drilled in the ice box compartment wall. Utilises R134A ozone friendly refrigeration gas.
| Part Number | Average Power** Consumption | Volume* Fridge/Freezer | Evaporator Type | Compressor Type | Maximum Power Consumption | Compressor Dimensions (H x W x L) | Evaporator Dimensions (H x W x L) | Weight |
|---|---|---|---|---|---|---|---|---|
| BLA-381508 | 0.6 A/hr@12V | 60L/20L | Flat | BD35F | 2.5 amps@12V | 155mm x 160mm x 270mm | 130mm x 350mm | 9kg |
| BLA-381510 | 0.9A/hr@12V | 170L/55L | Flat | BD50F | 4.5 amps@12V | 155mm x 160mm x 315mm | 210mm x 815mm | 11kg |
| BLA-381512 | 1.0A/hr@12V | 200L/65L | Flat | BD50F | 6 amps@12V | 155mm x 160mm x 315mm | 190mm x 1200mm | 12kg |
| BLA-381514 | 1.1A/hr@12V | 260L/85L | Flat | BD50F | 6 amps@12V | 155mm x 160mm x 315mm | 270mm x 1000mm | 12kg |
| BLA-381516 | 1.2A/hr@12V | 400L/140L | Flat | BD50F | 6 amps@12V | 155mm x 160mm x 315mm | 300mm x 13700mm | 12kg |
* Freezer volume is calculated at approximately one third of the refrigerator volume capability. Freezer thermostat required if used as freezer.
** Indicates average power consumption at +6ºC in refrigeration space using a typical cooler box with standard insulation at an ambient temperature of +22ºC.
| SKU | 381508 |
|---|---|
| Barcode # | 9319786113295 |
| Brand | Isotherm |
| Shipping Weight | 9.0000kg |

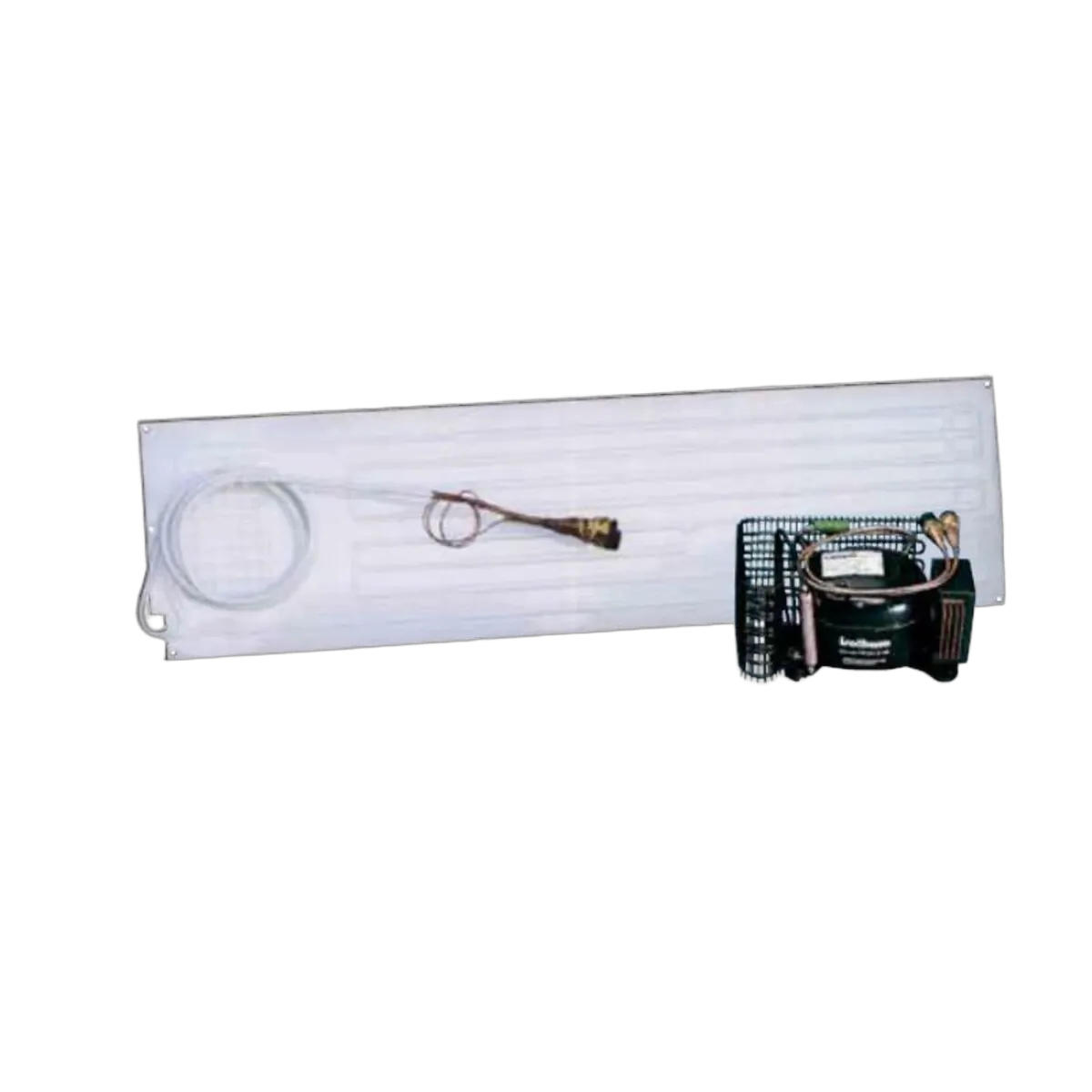

Isotherm Compact Classic System 60/20L Flat Evaporator
More infoMake 4 payments of $404.75 over 8 weeks and get it now!
