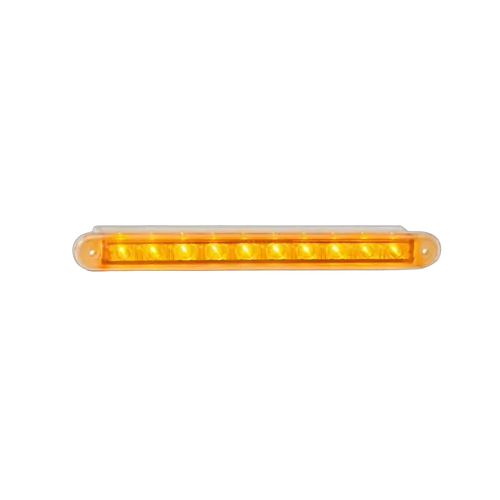

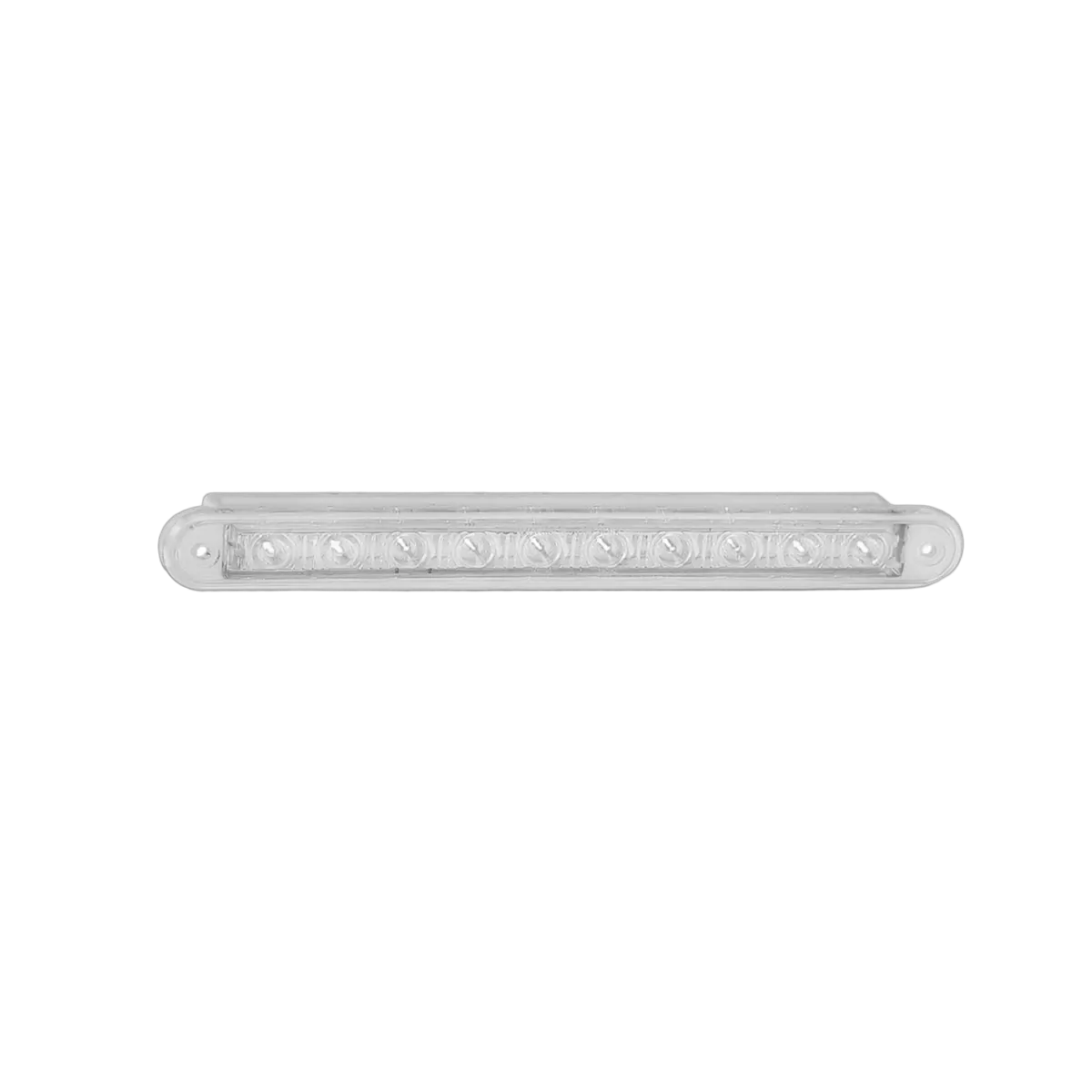

235 Sequential Series
235 Sequential Series
Features / Specifications
|

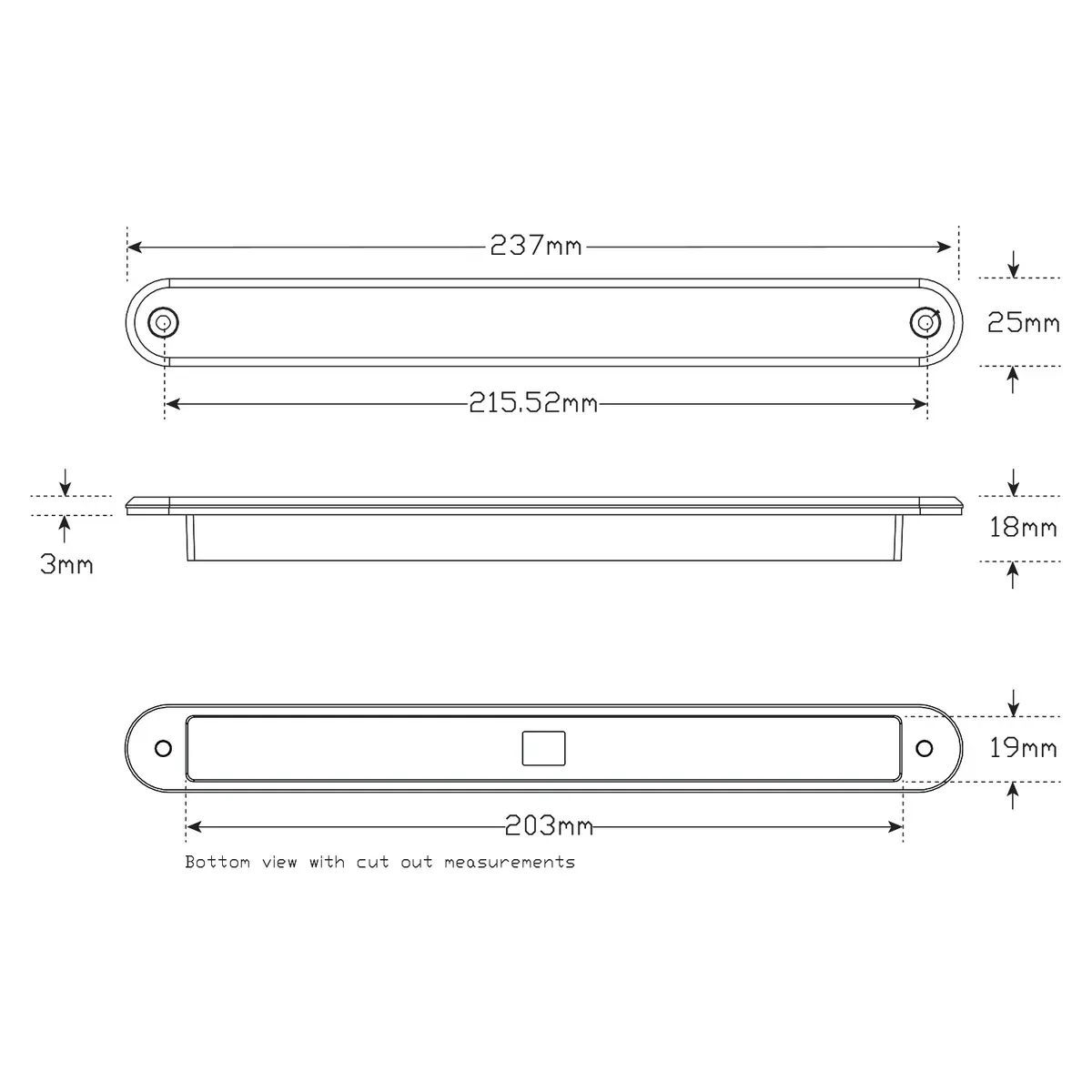

Fitting InstructionsRecessed - Mount onto flat surface horizontally. Push lamp and grommet into cutout (cut out 203mm x 19mm) in the mounting surface, run wires through the back and fix with screws (Max Torque - 8kgf/cm). Products can also be mounted using surface mounting brackets sold separately. Please refer to ADR 13/00 for mounting instructions. Technical Drawings |
SKU | 235CSEQB |
---|---|
Barcode # | 9335962101955 |
Brand | LED Autolamps |
Shipping Weight | 0.0910kg |
Shipping Width | 0.025m |
Shipping Height | 0.235m |
Shipping Length | 0.020m |
