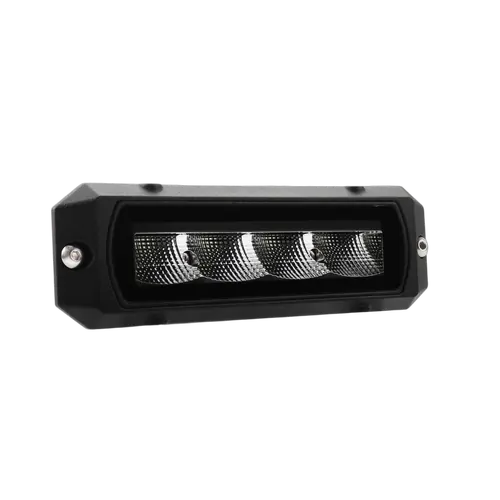

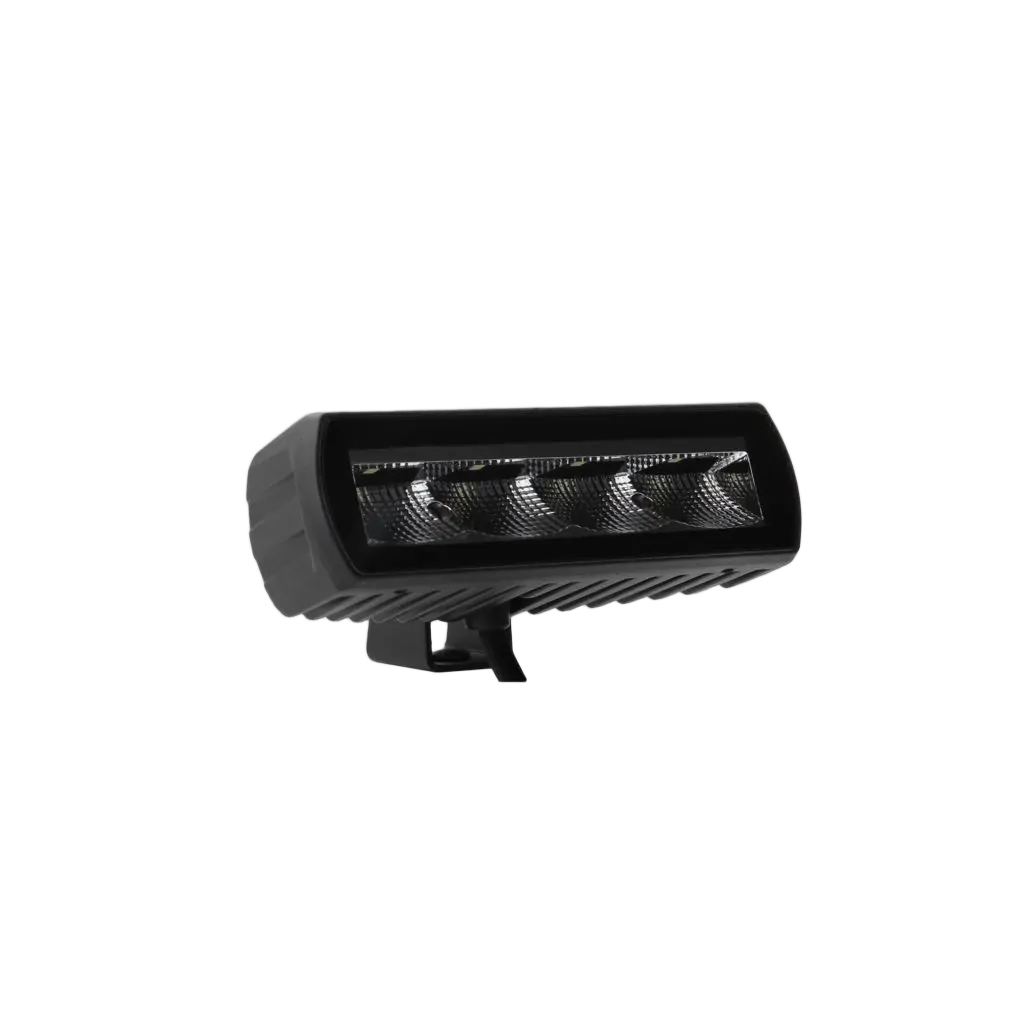

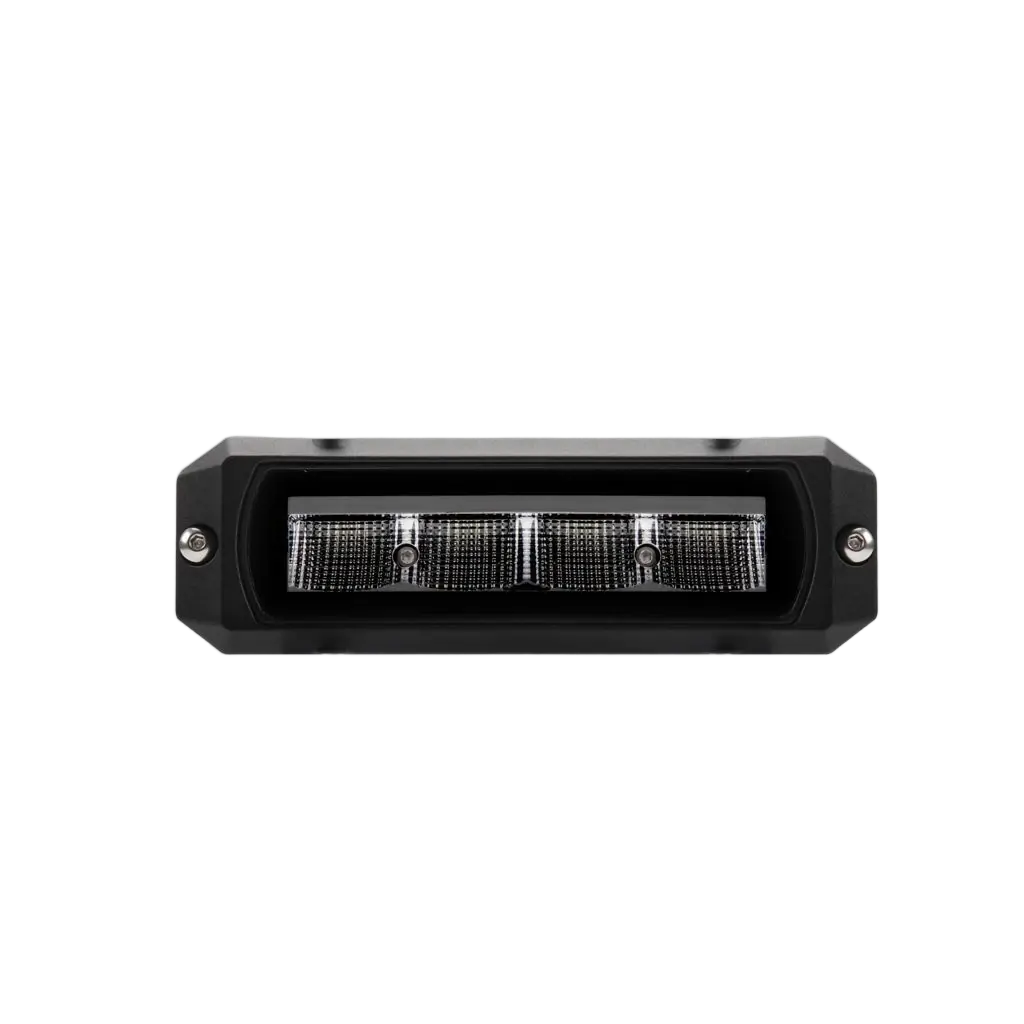

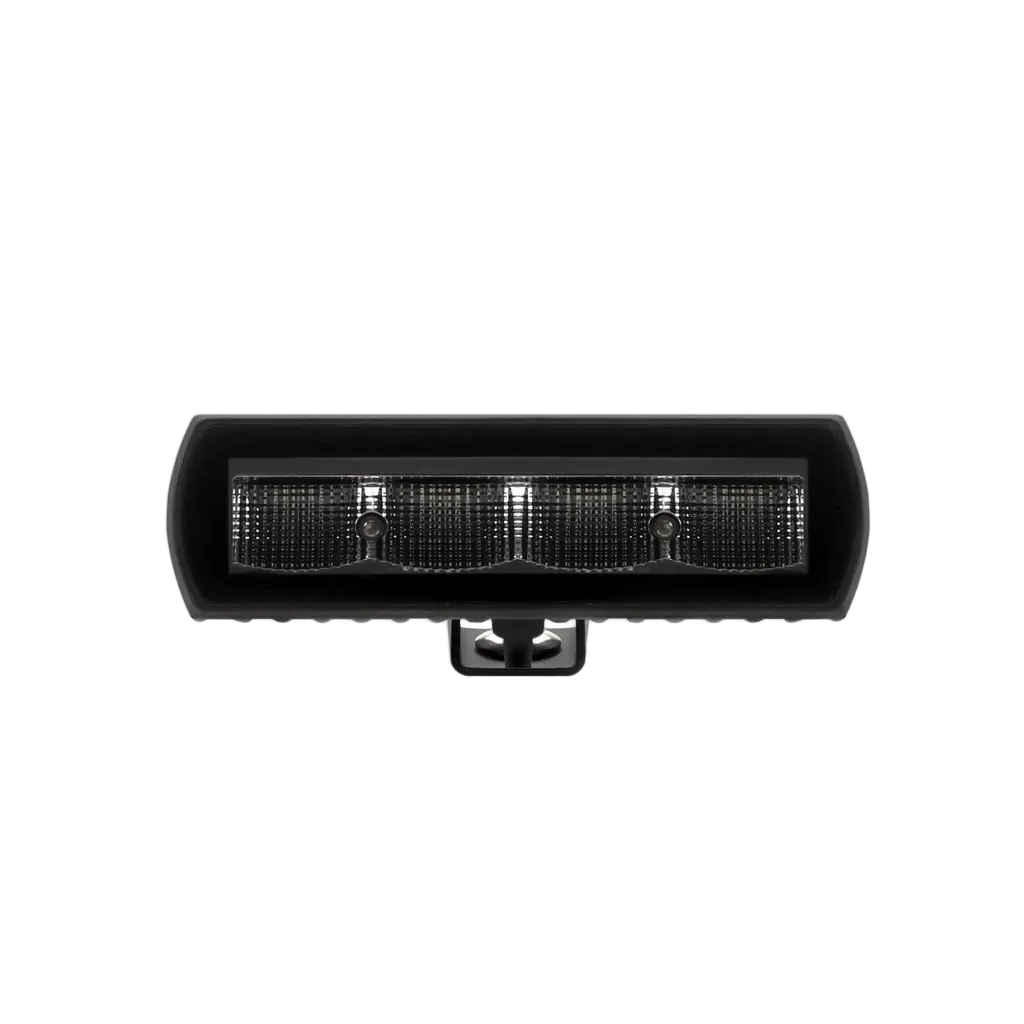

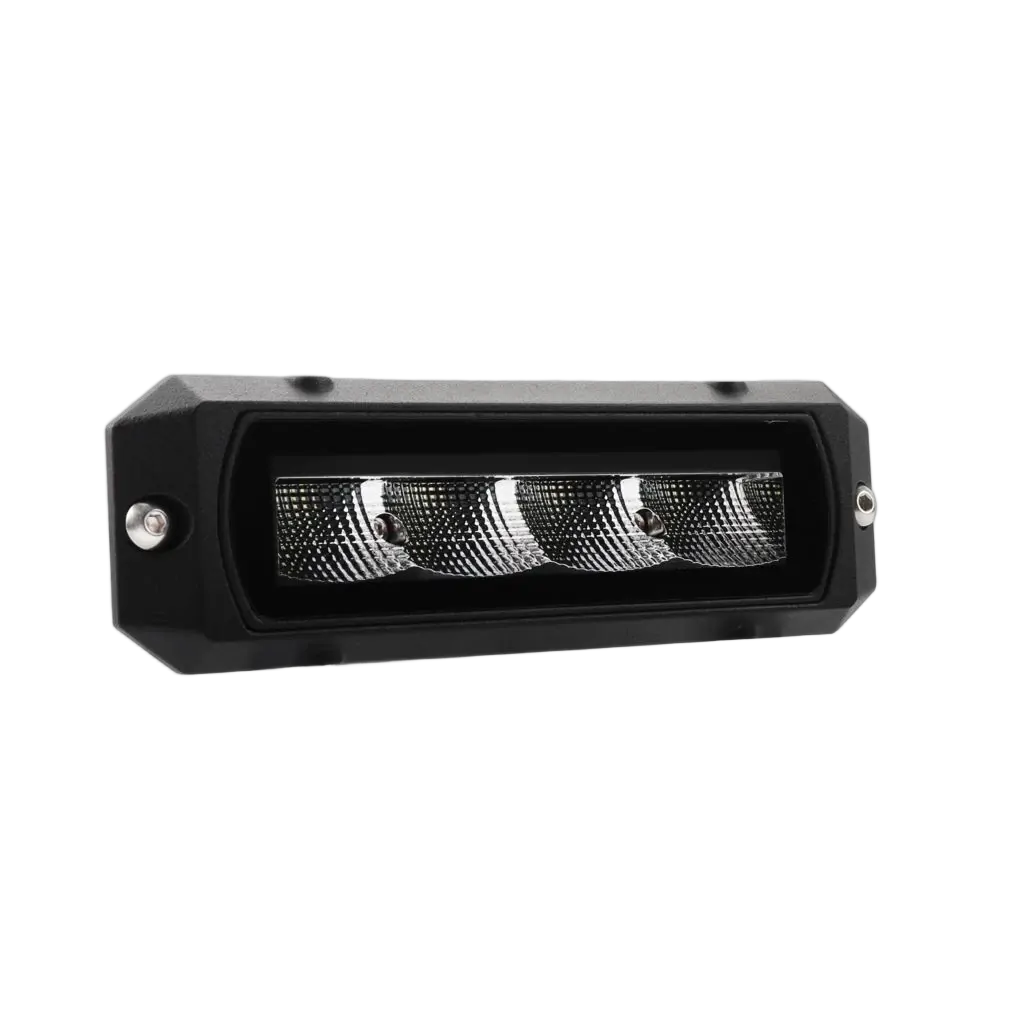

Ignite 5.5" Rectangular LED Worklamp / Reverse Lamp 9 - 36 Volt 32 Watt
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Anondised Polyester Powder Coated Die-Cast ADC12 Aluminium Alloy Housing with integrated
Extruded 6061 Aluminium Heat-Sink and Pressure Equalising Vent
Flush Mount or Surface Mount; Provided with Stainless Steel Bolts and Black Anondised Polyester
Powder Coated Die-Cast ADC12 Aluminium Alloy embedded fascia for flush mounting. Also supplied
with Stainless Steel U Metal Bracket with Stainless Steel Bolt for Surface mounting
80° x 60° Flood (Spread) Beam Pattern
300mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant up to 20G
Anti Rust, corrosion and freezing resistance
50,000 Hours LED Lifespan
ECE R10, R23 CE Approved and EMC Compliant, CISPR 25 Class 3 Certified
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Years Warranty
3,200 Raw Lumens, 2,700 Effective Lumens and 6,000K
.
Can be used in may different applications such as; Worklamp, Awning Lamp, Interior Lamp, Courtesy
Lamp, Deck Lamp, Tub Lamp, also ECE approved as a Reverse Lamp
4 x 8 Watt High Intensity LP LED's
1 Lux @ 49m and 2,400cd Peak Beam Density
Current Draw: 1.9amp @ 12 Volt and 1amp @ 24 Volt
Side Reflector Optic System Technology with Lexan Polycarbonate Lens
