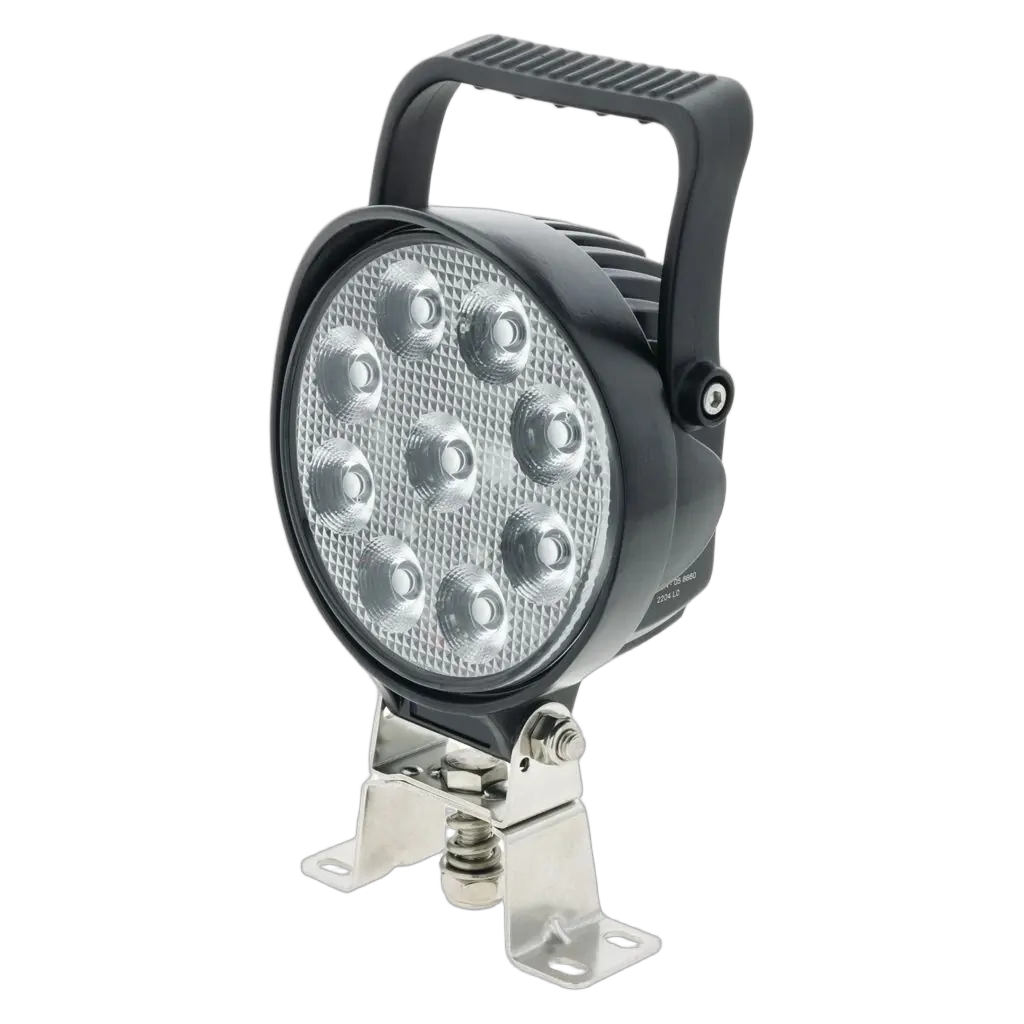

Improve your off-road vehicle's lighting capabilities with Ignite's 5.2" Round LED Worklamp today. The IWL9654S comes with Integrated Electronic Thermal Management (ETM) to regulate heat levels, providing maximum lifespan of it's LED's. Enjoy the comfortable and ergonomic handle which has it's own unique tilt adjustment, and incorporates an integrated On/Off Switch with a protective Rubber Boot that is located on the back of the housing.
Features:
- Patented Multi-Surface Polycarbonate TIR Optical System Reflector Technology with Polycarbonate Lens
- Integrated Electronic Thermal Management (ETM)
- Black Anodised Polyester Powder Coated Die-Cast Aluminium Housing (ADC12) with integrated 6063 Extruded Alumnium Heat-Sink
- Stainless Steel Pedestal Swivel Bracket with 360° swivel flexibility and Stainless Steel Mounting Hardware
- 230mm Lead with 2 Pin Deutsch Plug
- Over / Under Voltage Protection
- Reverse Polarity Protection
- UV, Water and Shock Resistant
- 50,000 Hours LED Lifespan
- 15° Spot (Pencil) Beam Pattern
- ECE R10, CE Approved and EMC Compliant, CISPR 25 Class 4 Certified
- IP68 / IP69K Rated, -40°C to +60°C
- Light Transmittance >95%
- 5 Year Warranty
| Type | LED |
| Beam Type | Spot |
| Shape | Round |
| Mount | Other |
| Voltage | Multivolt (9 - 36V) |
| Power | 27W |
| No. of LED's | 9 x 3W High Intensity CREE LEDs |
| Effective Lumens | 1,880 |
| Raw Lumens | 2,250 |
| Colour Temp | 6,000K |
| Current Draw | 2.1A @ 12V, 1.15A @ 24V |
| Max Visibility | 1 Lux @ 125m |
| Peak Beam Intensity | 15,625cd |
| Height | 224mm |
| Width | 133mm |
| Depth | 75mm |
| SKU | IWL9654S |
| Barcode # | 9323327946990 |
| Brand | Ignite |
| SKU | IWL9654S |
|---|---|
| Barcode # | 9323327946990 |
| Brand | Ignite |
| Shipping Weight | 1.0000kg |
Ignite Led Round Spot Beam Work lamp W/ Handle & Switch Black Housing
