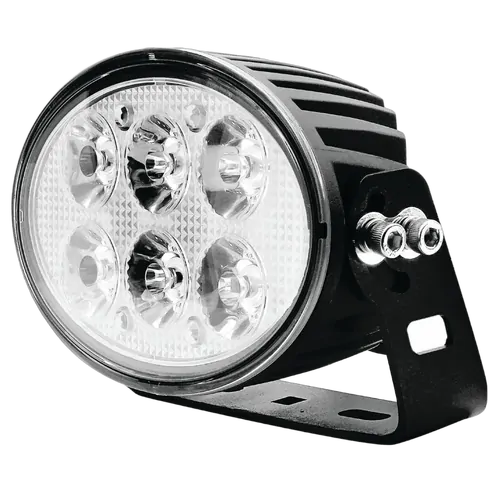

Ignite 6.1" Oval LED Worklamp 12 - 60 Volt 60 Watt
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Anondised Polyester Powder Coated Die-Cast Aluminium Alloy Housing (adc12) with integrated

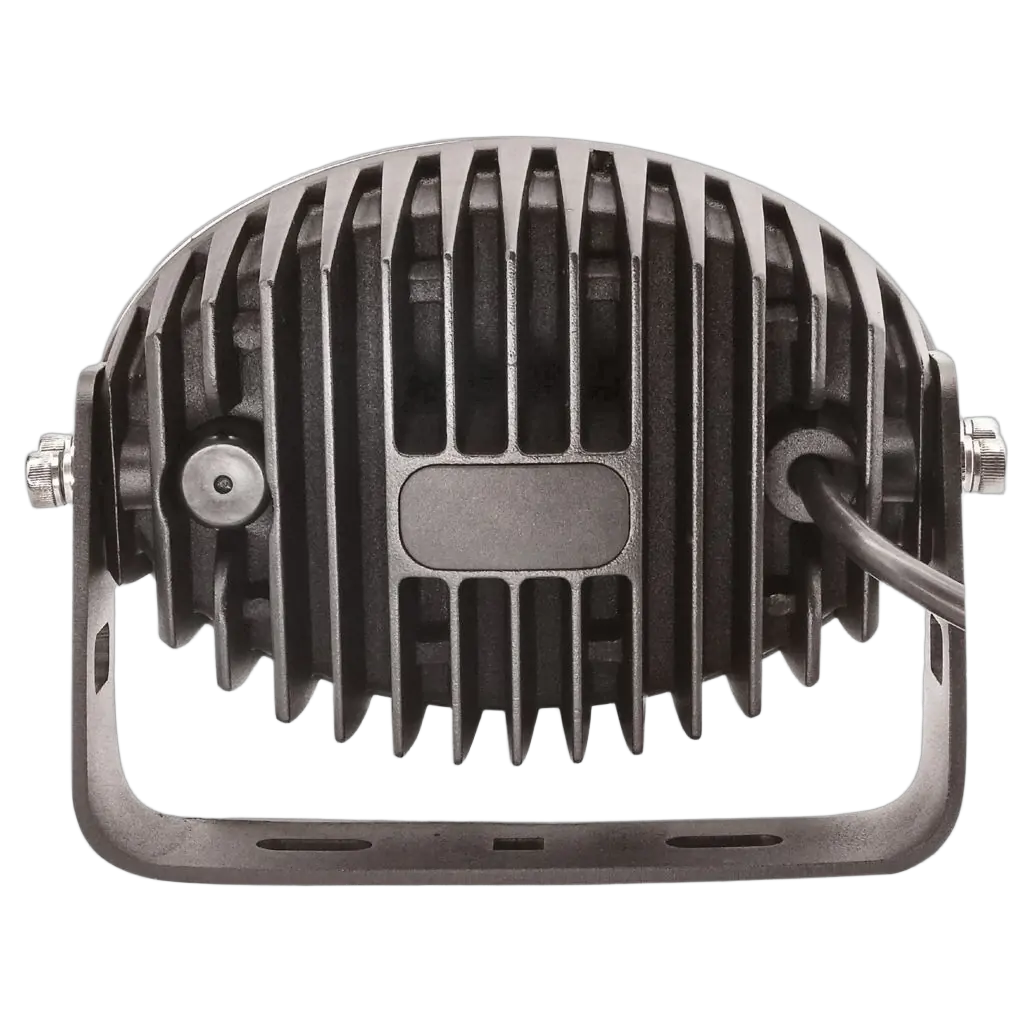

Extruded 6061 Aluminium Heat-Sink and Pressure Equalising Vent

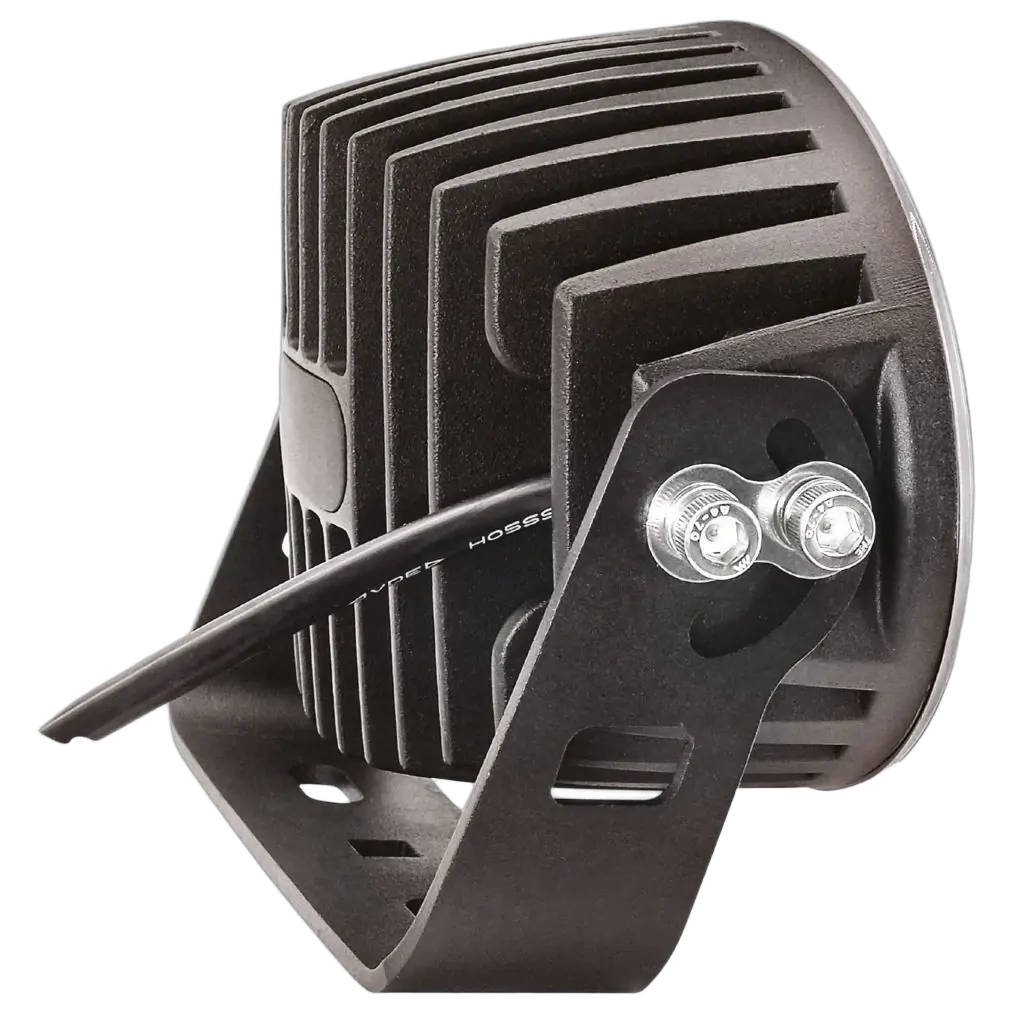

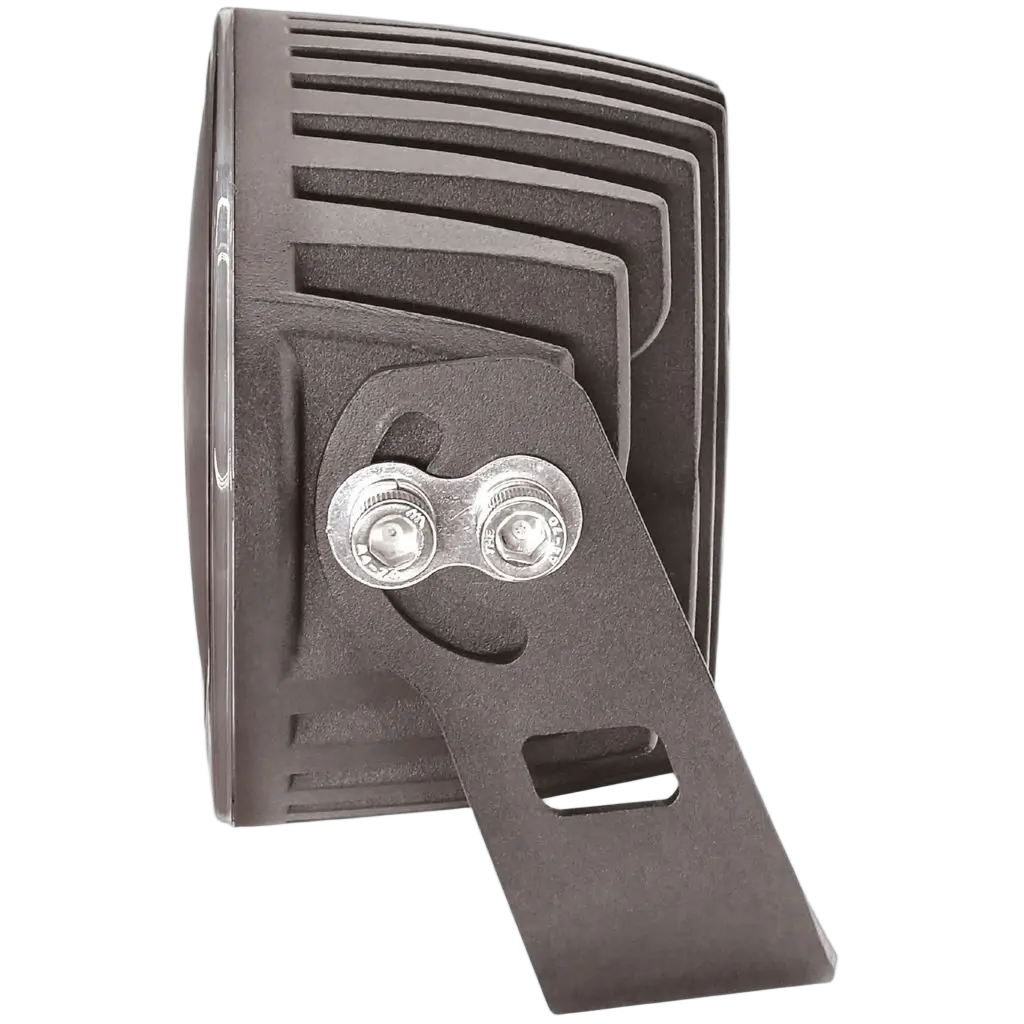

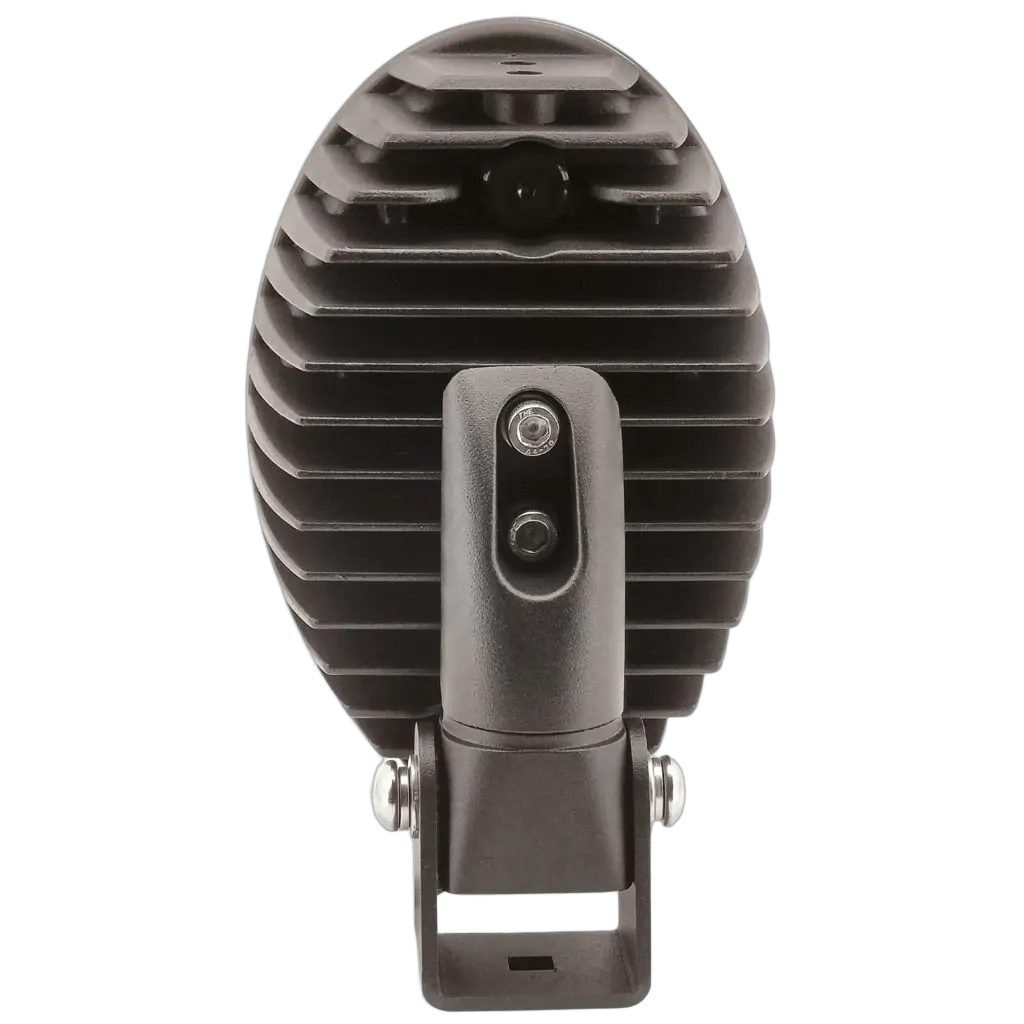

Dual Mounting Systems; Stainless Steel Single Bolt Mount Bracket and Hardware or Rear ABS
Plastic 360° Swivel Bracket with Stainless Steel Single Bolt Mounting Bracket and Hardware
300mm Lead with 2 Pin Deutsch Plug
45° Flood (Spread) Beam Pattern
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R10, R112 CE Approved and EMC Compliant, CISPR 25 Class 4 Certified
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty

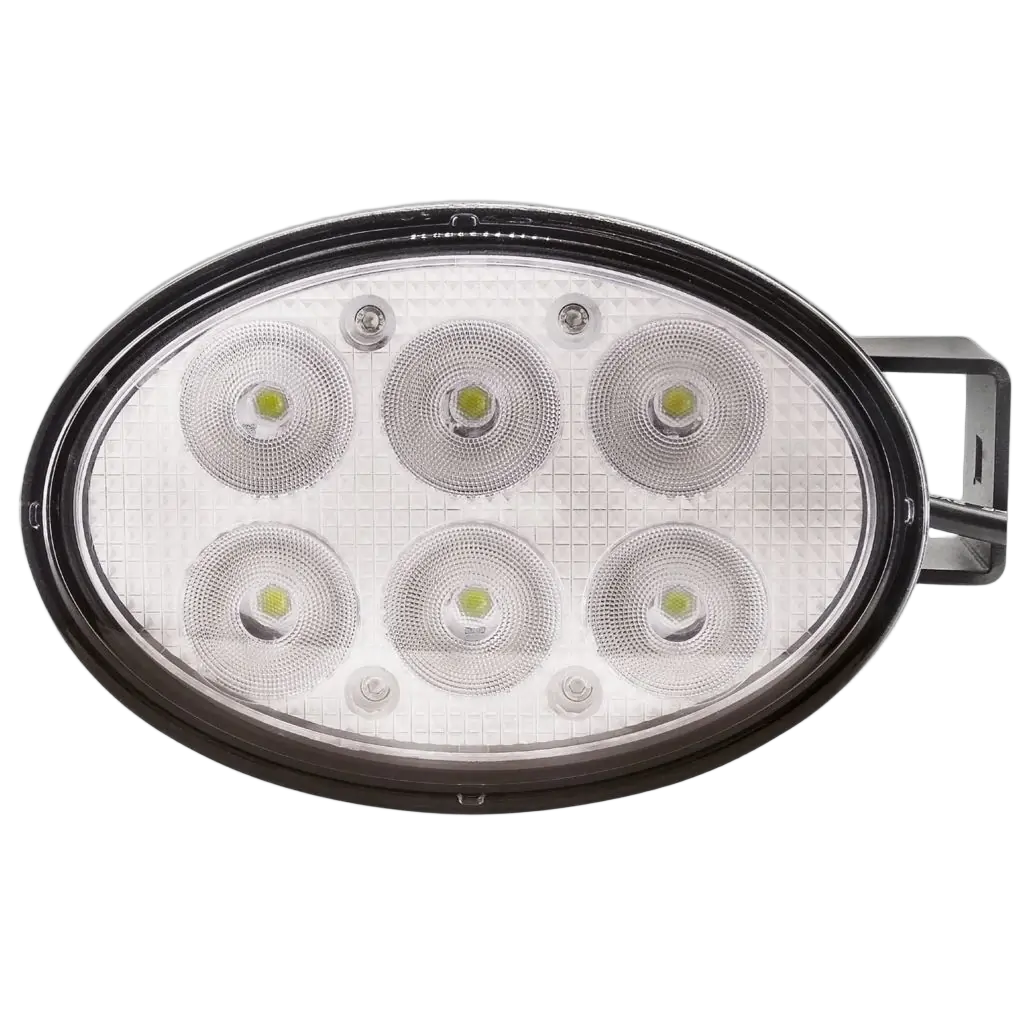

6 x 10 Watt High Intensity Lumileds LED's
5,600 Effective Lumens, 6,600 Raw Lumens and 6,000K
1 Lux @ 112m and 12,500cd Peak Beam Intensity
Current Draw: 3.6amp @ 12 Volt and 1.6amp @ 24 Volt
Patented Multi-Surface Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens
Beam Type | Flood |
Depth (mm) | 70 |
Height (mm) | 105 |
Mount | Other |
No. of LED | 6 |
Series | Other |
Shape | Oval |
Type | LED |
Voltage | Multivolt |
Watts | 60W |
Width (mm) | 154 |
SKU | IWL610F |
Barcode # | 9323327943609 |
Brand | Ignite |
SKU | IWL610F |
---|---|
Barcode # | 9323327943609 |
Brand | Ignite |
Shipping Weight | 1.0000kg |
