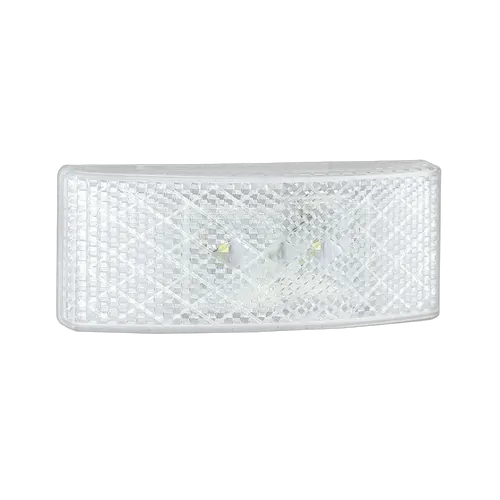

Ignite LED Front End Position Outline Marker Reflector Lamp 12/24 Volt
400mm Sheathed with 2 wires
10,000 Hours LED Lifespan
Fully encapsulated circuitry
Sealed against Dust and Moisture
ECE 02A CRN 11340 Approved - Front Position Lamp
ECE 021A CRN 11340 Approved - Cab Reflector
Refer to ADR 13/00 for mounting instructions
White Illumination
IP67 Rating
Blister Qty: 1
5 Year Warranty
.
Drill a 10mm Hole, remove protective film from 3M™ Tape, pull cable through the hole, push
serrated plug into the hole and press firmly on lamp
Easy to fit with no tools required, saving on installation time
Low profile compact design
.
ISL433A is the matching Amber Side Marker Lamp
3 x High Intensity White LED's
ISL433R is the matching Rear End Outline Marker Lamp
Current Draw: 0.01amp at 12 Volt, 0.01amp at 24 Volt
Clear Hardened Acrylic Lens with unique Hexagonal lens pattern and Built-in Reflex Reflector
White ABS Plastic Housing with 10mm Serrated Plug
Surface Mount with 3M™Tape (Supplied) "Push and Stick" mounting system
Colour | White |
Depth (mm) | 13 |
Height (mm) | 38 |
Mount | Surface |
Shape | Rectangular |
Type | LED |
Voltage | 12/24V |
Width (mm) | 100 |
SKU | ISL433W |
Barcode # | 9323327946297 |
Brand | Ignite |
SKU | ISL433W |
---|---|
Barcode # | 9323327946297 |
Brand | Ignite |
Shipping Weight | 0.5000kg |
