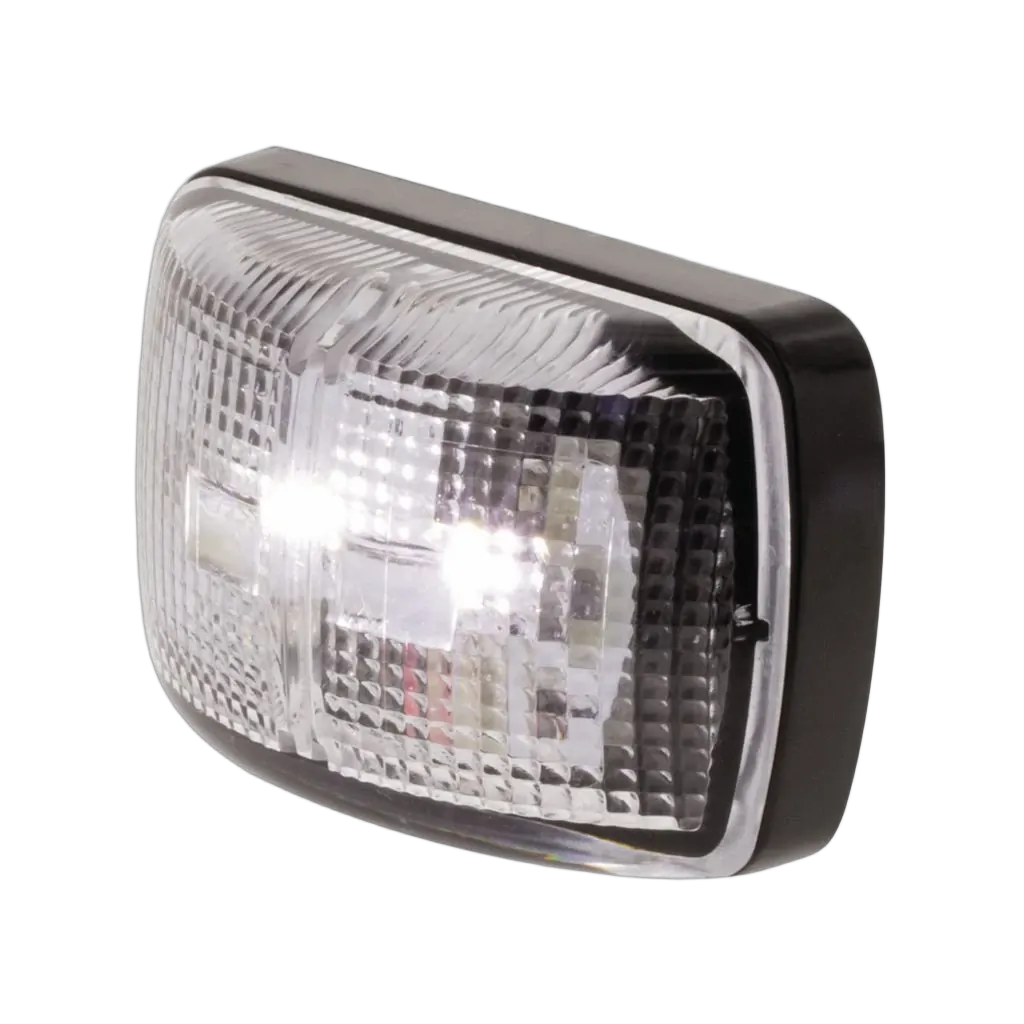

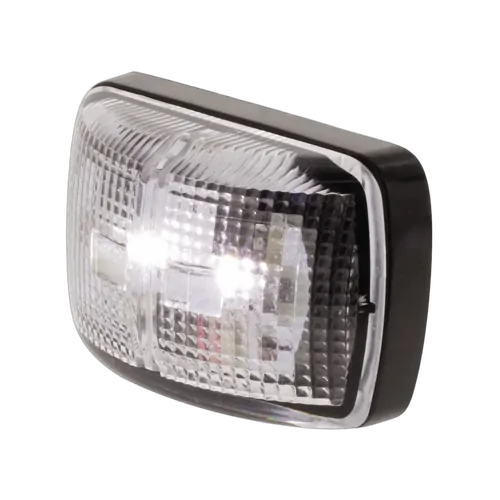

Ignite LED Front End Position Outline Marker Lamp 10 - 30 Volt
Pre-wired Sheathed 2 Wire 550mm Lead
10,000 Hours LED Lifespan
Fully encapsulated circuitry
Reverse Polarity Protection
Sealed against Dust and Moisture
UV, Water and Shock resistant
ECE R10, CE Approved and EMC Compliant
White Illumination
ECE R7 and ADR 49/00 Front Position Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
IP67 Rating
Environment Temperature: -40°C ~ +65°C
Blister Qty: 1
2 Year Warranty
Suitable for OEM, Trucks, Rigid Bodies, Buses, Trailers and Custom Build applications
The Smart Clip mounting base is invisible when the lamp is installed which makes a perfect
lamp to vehicle match and professional finish
Note: ISL431AR is the matching Amber/Red Side Marker Lamp, ISL431A is the matching Amber

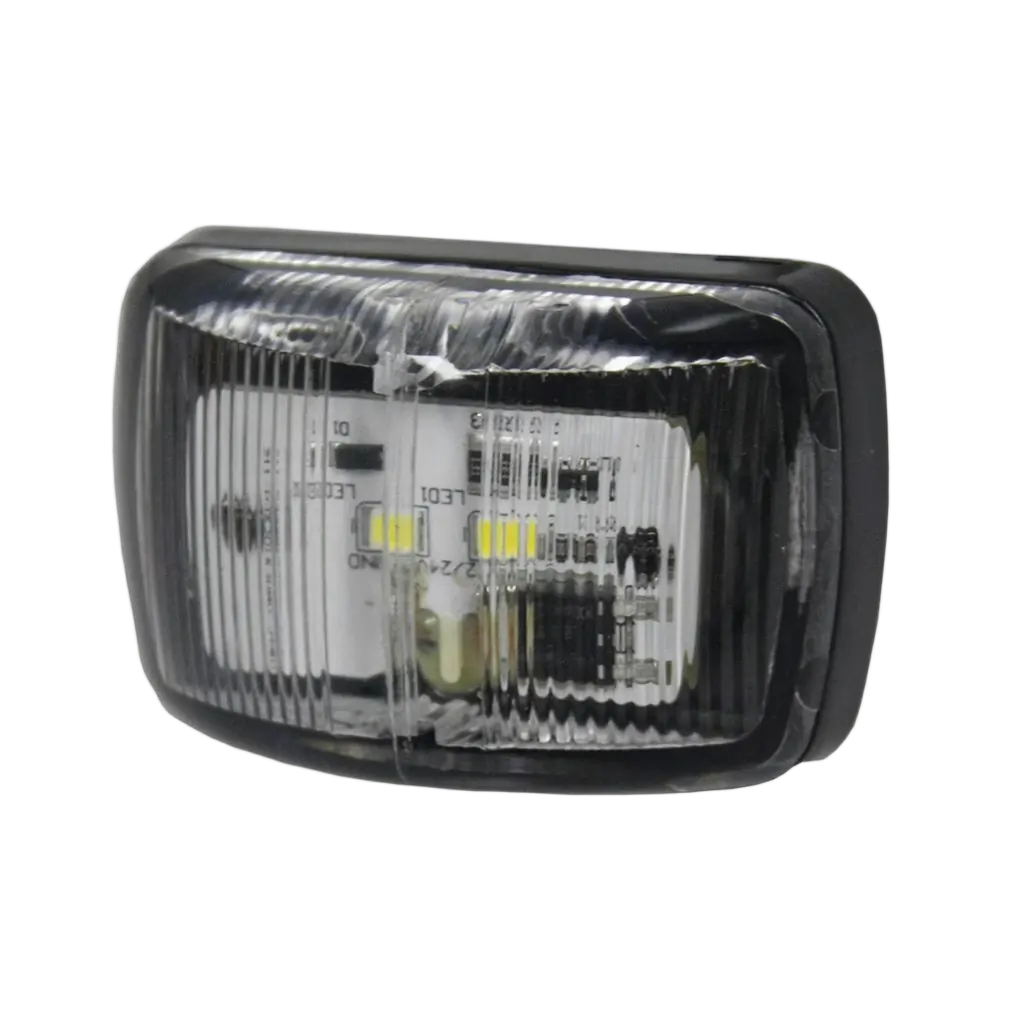

2 x High Intensity White LED's
Side Marker Lamp and ISL431R is the matching Rear End Position Marker Lamp
Current Draw: 0.03amp at 12 Volt, 0.03amp at 24 Volt
Clear Optical PMMA Polycarbonate Lens
Black ABS Plastic Housing with mounting screws included
Surface Mount with Invisible Smart Clip in, low mounting depth for easy installation
