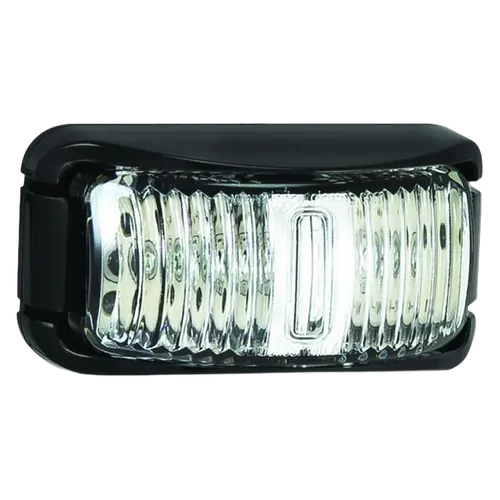

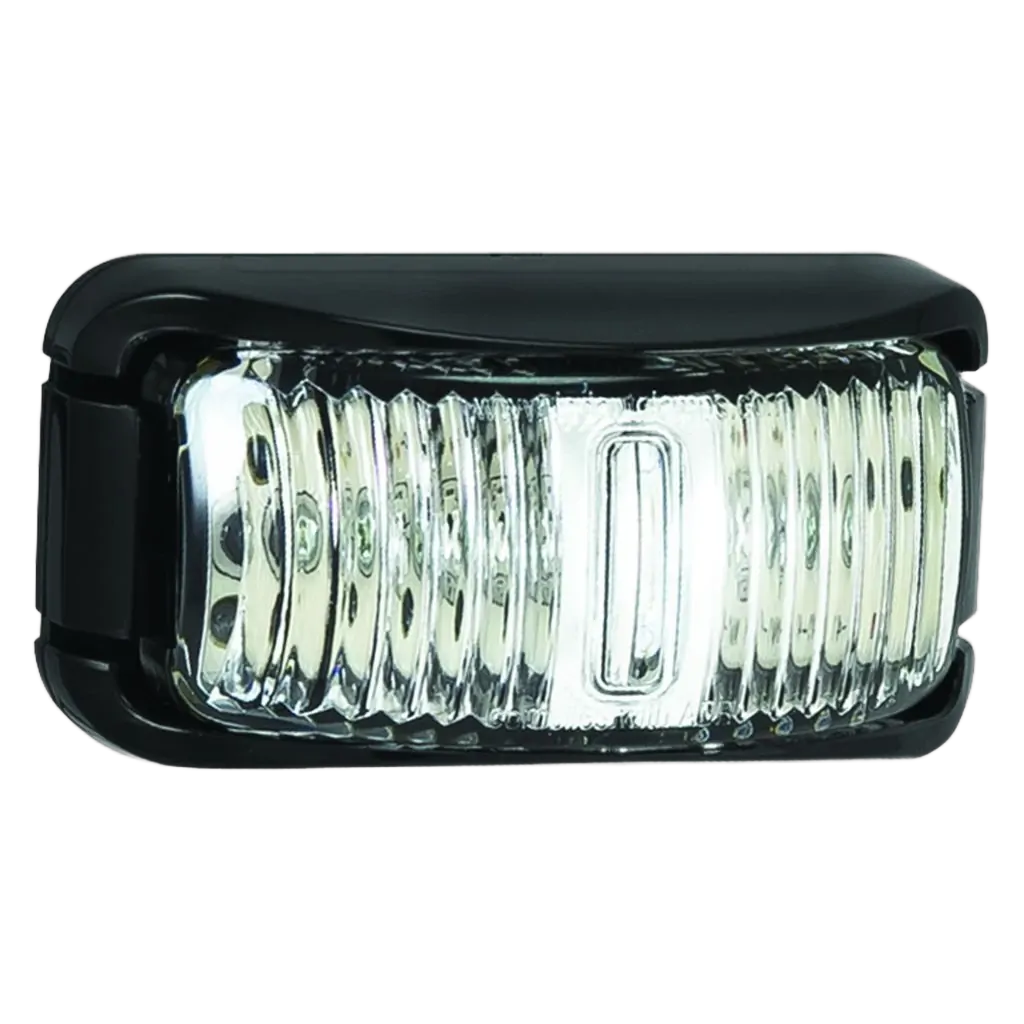

Ignite LED Side Marker Lamp 12/24 Volt
Surface Mount, low mounting depth for easy installation
160mm Sheathed with 2 wires
10,000 Hours LED Lifespan
Fully encapsulated circuitry
Sealed against Dust and Moisture
ADR 45/01 Side Marker Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
Amber and Red Illumination
IP67 Rating
Blister Qty: 1
5 Year Warranty
.
ISL432ARB is the matching 2.5m Cable version Side Marker Lamp
ISL432A is the matching Supplementary Side Indicator Lamp
ISL432R is the matching Rear End Outline Marker Lamp
ISL432CA is the matching Amber LED Front End Outline Marker Lamp Clear Lens
ISL432W is the matching White LED Front End Outline Marker Lamp
2 x High Intensity Amber LEDs
2 x High Intensity Red LEDs
Current Draw: 0.05amp at 12 Volt, 0.06amp at 24 Volt
Clear Hardened Acrylic Lens with New Magnified pattern lens
Black ABS Plastic Housing with mounting screws included
