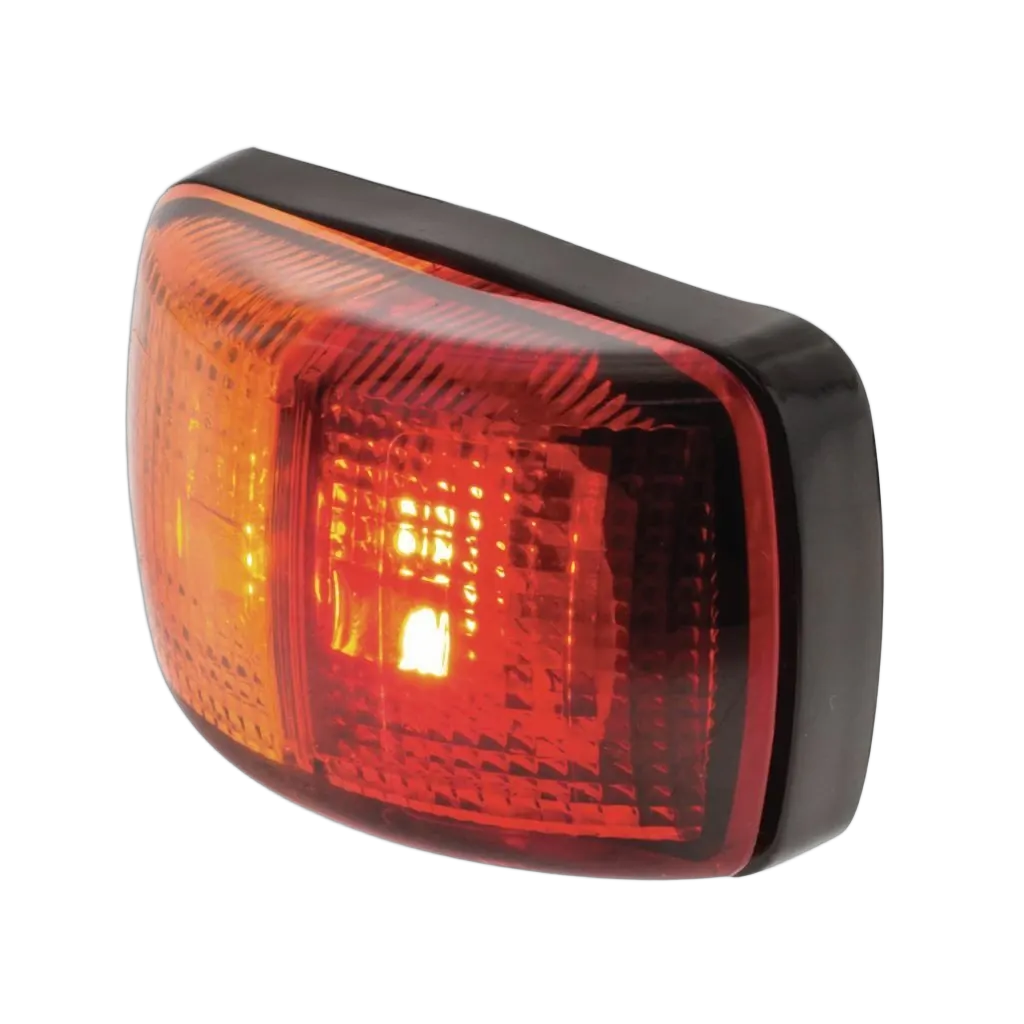

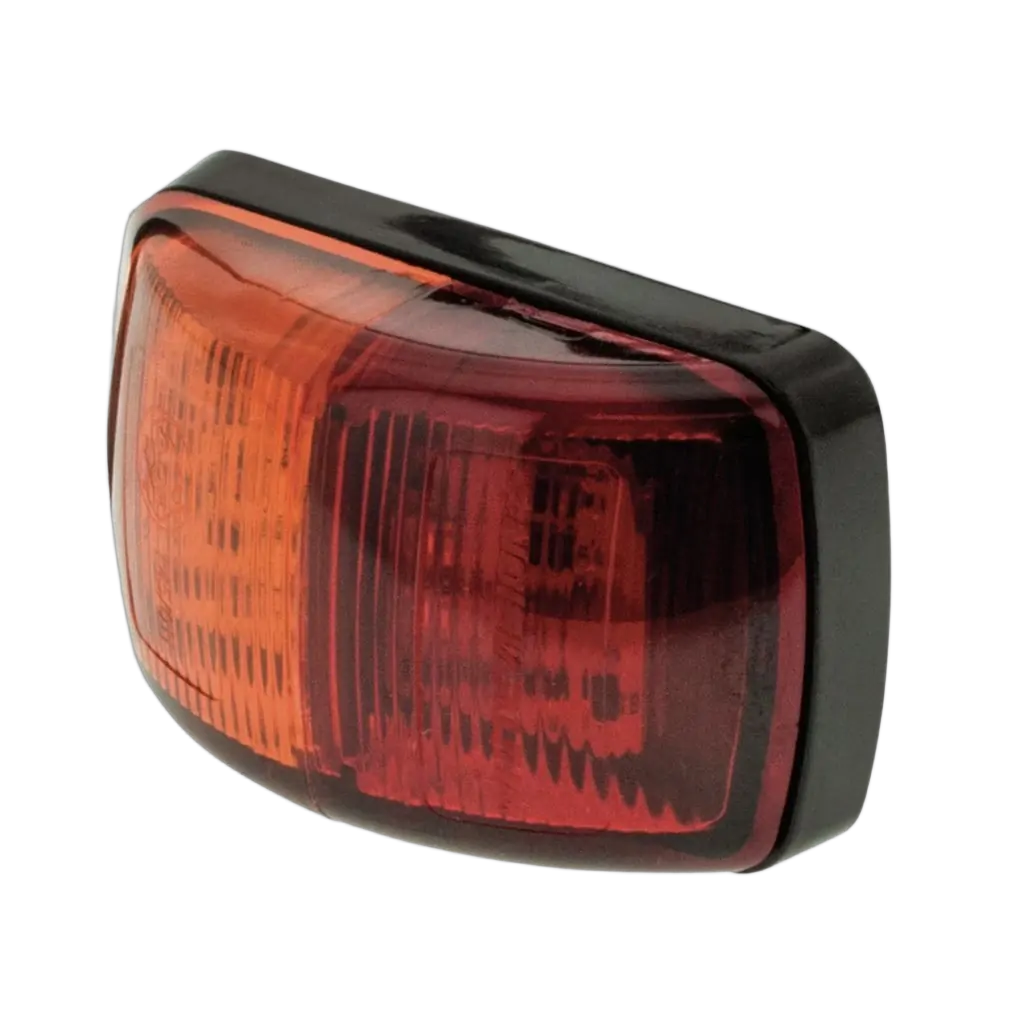

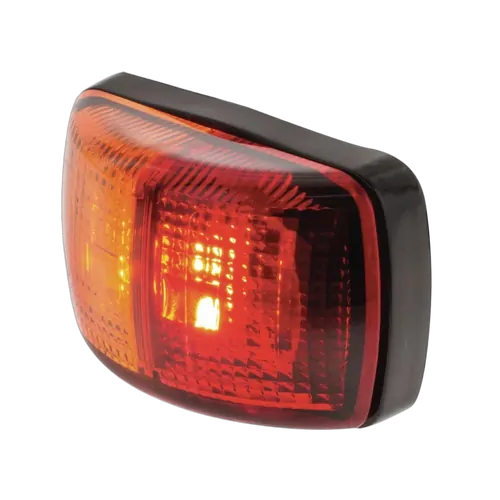

Ignite LED Amber / Red Side Marker Lamp 10 - 30 Volt
Pre-wired Sheathed 2 Wire 550mm Lead
10,000 Hours LED Lifespan
Fully encapsulated circuitry
Reverse Polarity Protection
Sealed against Dust and Moisture
UV, Water and Shock resistant
ECE R10, CE Approved and EMC Compliant
Amber and Red Illumination
ECE R91 and ADR 45/01 Side Marker Lamp specifications approved
Refer to ADR 13/00 for mounting instructions
IP67 Rating
Environment Temperature: -40°C ~ +65°C
Blister Qty: 1
2 Year Warranty
Suitable for OEM, Trucks, Rigid Bodies, Buses, Trailers and Custom Build applications
The Smart Clip mounting base is invisible when the lamp is installed which makes a perfect
lamp to vehicle match and professional finish
Note: ISL431A is the matching Amber Side Marker Lamp, ISL431W is the matching Front End
2 x Amber and 2 x Red High Intensity SMD LED's
Position Marker Lamp and ISL431R is the matching Rear End Position Marker Lamp
Current Draw: 0.07amp at 12 Volt, 0.04amp at 24 Volt
Amber and Red Optical PMMA Polycarbonate Lens
Black ABS Plastic Housing with mounting screws included
Surface Mount with Invisible Smart Clip in, low mounting depth for easy installation
Colour | Red / Amber |

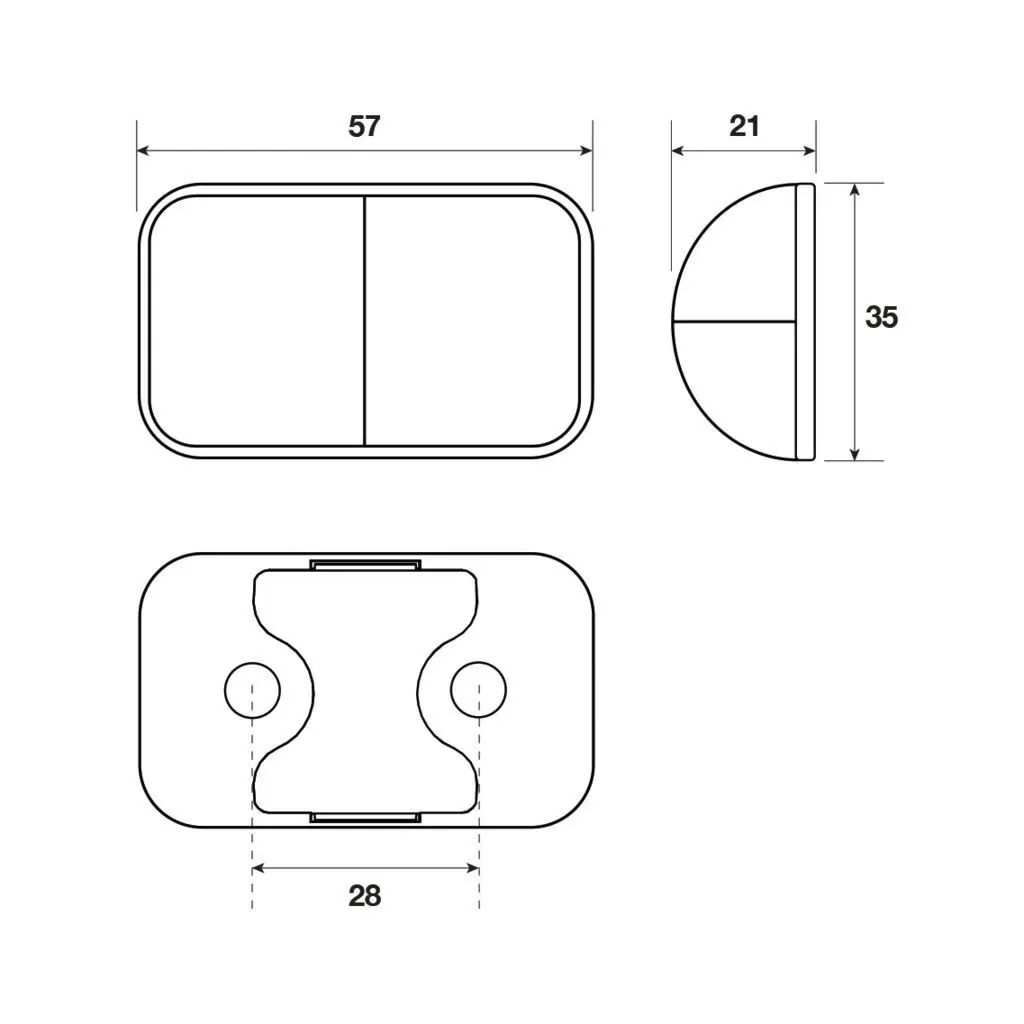

Depth (mm) | 21 |
Height (mm) | 35 |
Mount | Surface |
Shape | Rectangular |
Type | LED |
Voltage | Multivolt |
Width (mm) | 57 |
SKU | ISL431AR |
Barcode # | 9323327945269 |
Brand | Ignite |
SKU | ISL431AR |
---|---|
Barcode # | 9323327945269 |
Brand | Ignite |
Shipping Weight | 0.5000kg |
