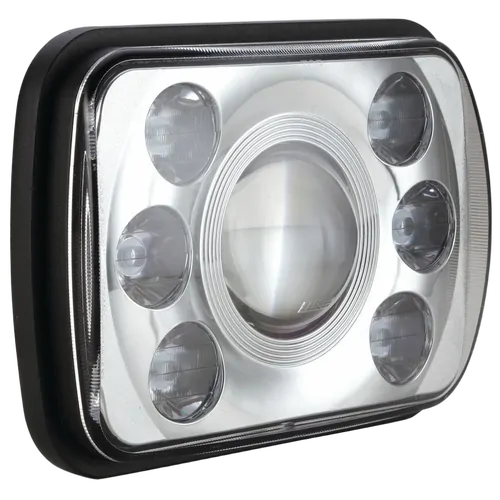

Ignite Rectangle LED HeadLamp 9 - 36 Volt 65 Watt
Current Draw: 4.1amp @ 12 Volt and 1.8amp @ 24 Volt
Proprietary Polycarbonate TIR Optical System Reflector Technology for High Beam and Position Lamp.
Lexan Polycarbonate Lens and Reflectors
Integrated Electronic Thermal Management (ETM)
Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
Replaces Headlights, either Semi Sealed or Sealed Beams
150mm Lead with H4 Connector
200mm x 142mm or 7" x 5" - Chrome Fascia
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R112, R7, DOT, SAE and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
Weight: 1.19kg
Spare Parts:-
High / Low Beam and Position Lamp
IWH030 Adaptor Harness for Negative Switched Vehicles
6 x 10 Watt High Intensity LumiLEDs LED's for Position Lamp and High Beam
1 x 5 Watt High Intensity Philips LED for Low Beam
High Beam: 3,900 Raw Lumens and 3,315 Effective Lumens and 6,500K
Low Beam: 1,800 Raw Lumens and 1,530 Effective Lumens and 6,500K
