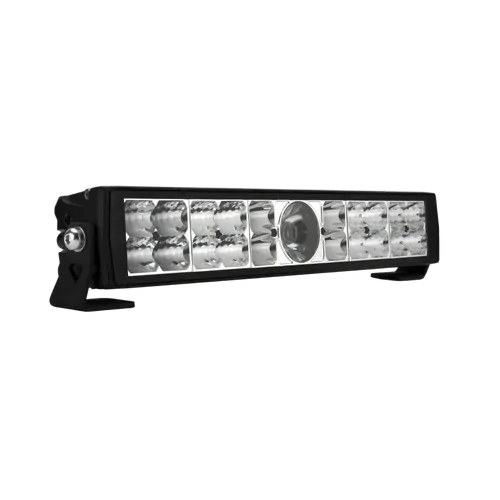

Ignite 15" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 95 Watt
Experience unmatched visibility and durability with the Ignite 15" Lightbar. Its advanced Polycarbonate Side Reflector Focusing Optic Drive Technology and Lexan Polycarbonate Lens ensure over 95% light transmittance, even in the darkest conditions.
The integrated Electronic Thermal Management (ETM) system keeps the lightbar cool during extended use. With its black anodised polyester powder-coated aluminum housing, it's UV, water, and shock-resistant, withstanding extreme conditions.
Combining Laser and LED technology, it provides a Combo Beam pattern with 8,700 raw lumens and 7,400 effective lumens, delivering 6,000K white light. It's ECE R112, R10, and CE approved, and IP68 and IP69K rated.
Install it easily with the included 500mm lead and 2 Pin Deutsch Plug. It offers over/under voltage and reverse polarity protection. Backed by a 5-year warranty, it's your reliable driving companion.
Illuminate your adventures with the ILLB2004 Ignite Lightbar!
Includes:
- 1 x 15" Dual Row Laser LED Driving Lamp Lightbar
Spare Parts:
- INPB001Licence Plate Mounting Bracket

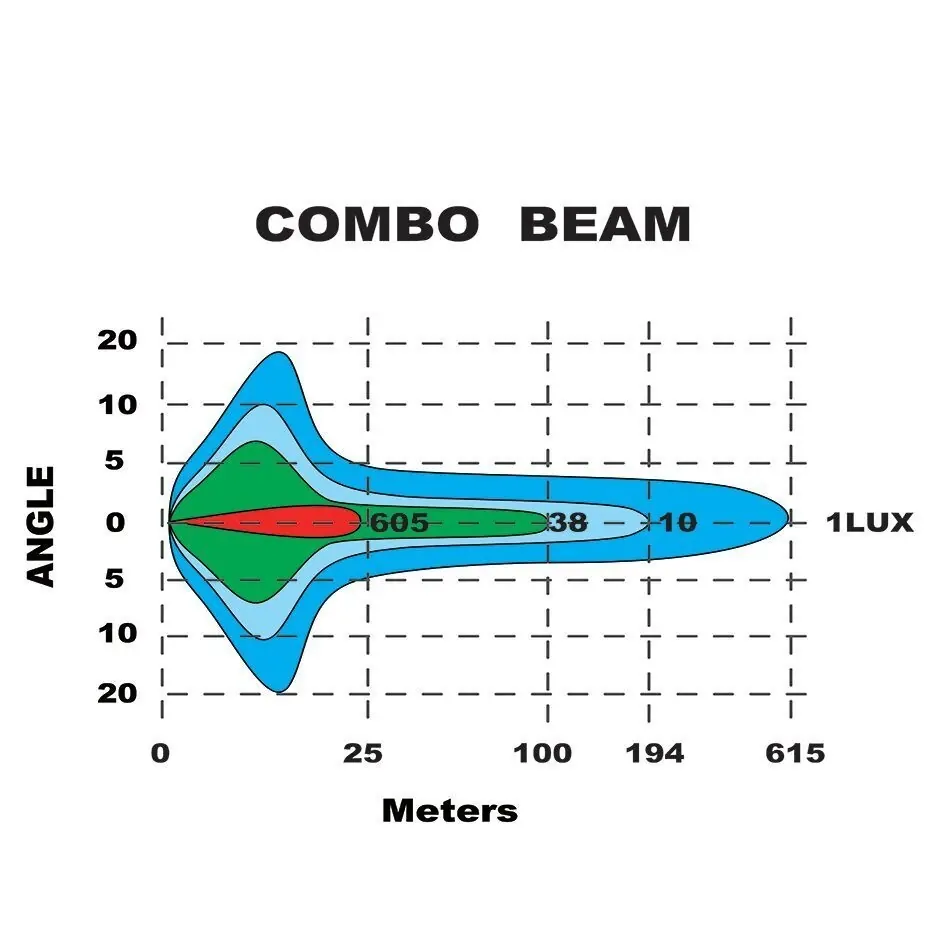

• | 8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern |
• | Polycarbonate Side Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens |
• | Integrated Electronic Thermal Management (ETM) |
• | Black Anodised Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent |
• | Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets |
• | Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length |
• | 500mm Lead with 2 Pin Deutsch Plug |
• | Over and Under Voltage Protection |
• | Reverse Polarity Protection |
• | Combined Laser LED and LED Illumination Technology |
• | UV, Water and Shock resistance to 15G |
• | Anti Rust, corrosion, and freezing resistance |
• | 50,000 Hours LED Lifespan |
• | ECE R112, R10 and CE Approved |
• | Environment Temperature: -40°C ~ +60°C |
• | 5 Year Warranty |
Type | LED |
Beam Type | Combined |
Mount | Bottom and Side Brackets |
IP Rating | IP68 and IP69K Rated |
Voltage | Multivolt (9 - 36V) |
Power | 95 Watt |
No. of LED's | 20 x 4 Watt High Intensity LP LED's and 1 x 20 Watt High Intensity Osram Laser LED |
Effective Lumens | 7,400 |
Raw Lumens | 8,700 |
Colour Temp | 6,000K |
Current Draw | 6.5A @ 12V, 3.3A @ 24V |
Max Visibility | 1 Lux @ 615m |
Peak Beam Intensity | 378,000cd |

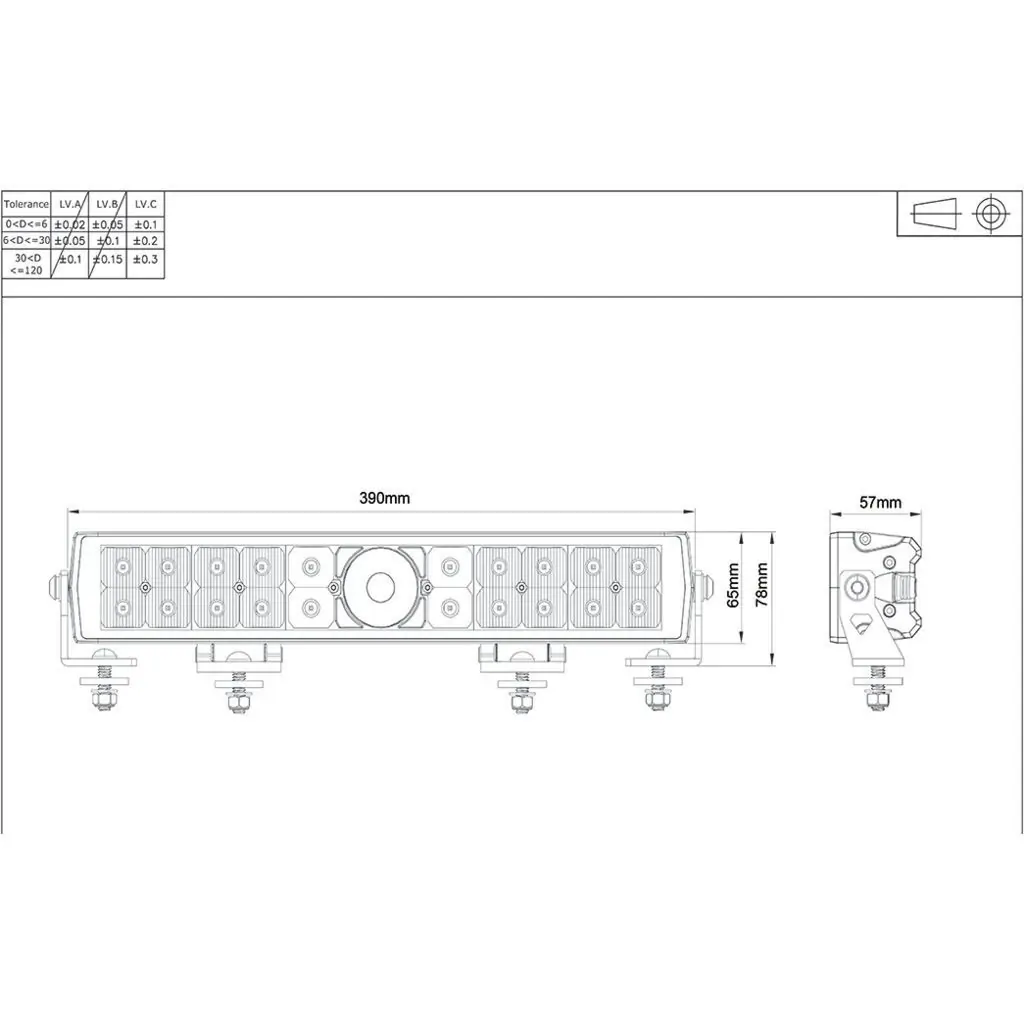

Height | 65mm |
Width | 390mm |
Depth | 57mm |
SKU | ILLB2004 |
Barcode # | 9323327947027 |
Brand | Ignite |
SKU | ILLB2004 |
---|---|
Barcode # | 9323327947027 |
Brand | Ignite |
Shipping Weight | 5.0000kg |
