Description
Specifications
- Working Temperature: -30°C ~ 93°C
- Input Voltage/Current: DC 3V
- Frequency: 433.92 MHz
- Transmission Power: <10 dBm
- Temperature Accuracy: ± 3°C
- Size (LxWxH): 30x24x15mm
- Weight: 11g
- Battery Life: 18-24 Months
- Replaceable Battery: No
Installation
The bearing sensors need to be activated and paired to the monitor prior to installation. Refer to your user manual for more information.

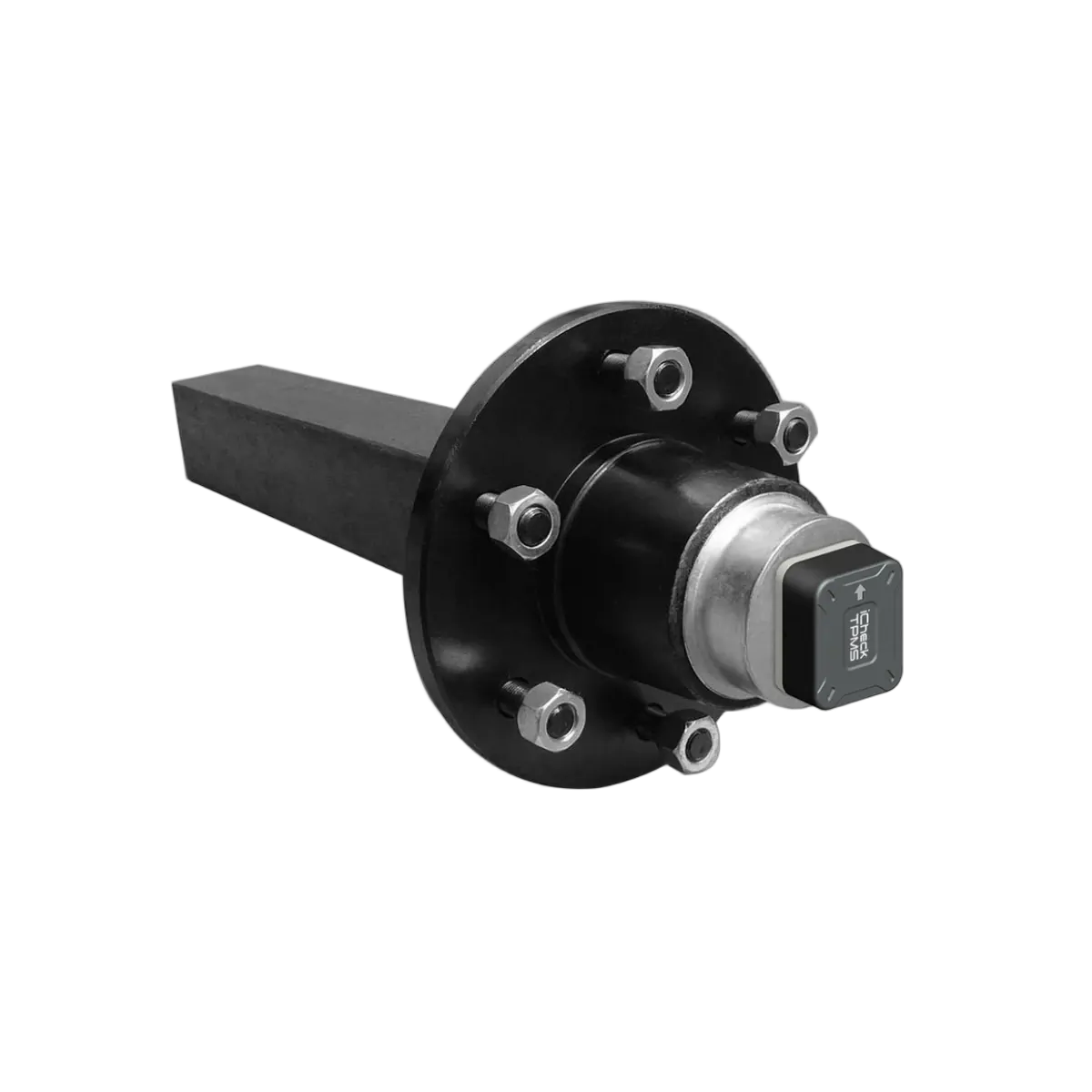

The sensors need to be installed onto a flat bearing dust cap surface. If you have curved, or raised lettering on your dust caps, it’s advised to change them to a flat type and are easily found at your local trailer or caravan store.
Some wheel types have centre caps that can be removed without having to remove the wheel from the caravan whilst some other wheel types may need to be removed to get access to the wheel bearing dust caps for the installation of the sensors.
SKU | ICWBTS4 |
---|---|
Barcode # | OEBC569521 |
Brand | iCheckTPMS |
Shipping Weight | 1.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.100m |
Shipping Length | 0.200m |
Shipping Cubic | 0.004000000m3 |
