Our Hyperion light bars don’t just outperform all the others, they look the goods as well. With high and low beam modes, switchable orange and white daytime running light (DRL), and the ability to customise it with different coloured side inserts, you can make this light bar distinctly yours.
Specifications
Materials | 6063 aluminium housing UV hardcoated polycarbonate lens Vacuum-metallised aluminium reflectors |
---|---|
LED type | OSRAM OSLON® SSL 150 |
Power | 210W |
Beam distance | 1 lux @ 787m (high) / 1 lux @ 373m (low) |
Output (raw) | 17,640 lumens |
Output (effective) | 10,802 lumens (high) / 2,379 lumens (low) |
Peak intensity | 620,000 candela |
Colour temperature | 5700K |
DRL colour | Settable orange / white |
Operating voltage | 10 – 30V DC |
Current draw (12V) | 15.24A (high) |
Current draw (24V) | 9.73A (high) |
DRL power draw | 1.23A @ 12V / 0.65A @ 24V |
Operating temperature | -30°C to 65°C |
Weight | 2.72kg |
Certifications | CE, CISPR25, ISO 7637-2:2004 |
Pack Contents

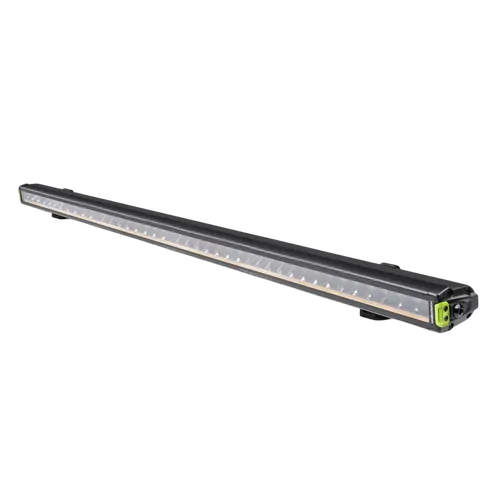

1x | 40" Hyperion LED light bar |
---|---|

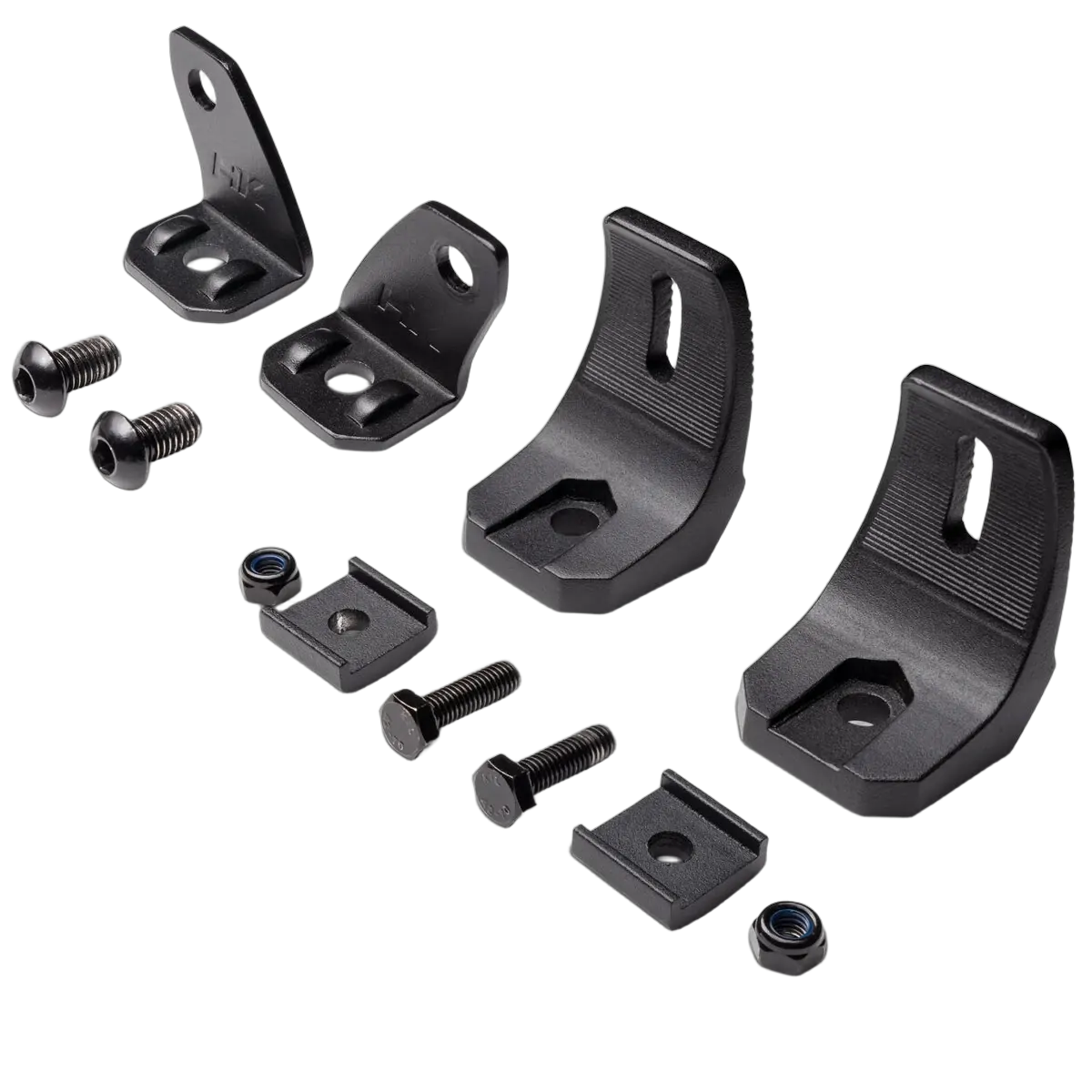

1x | Set end-mount legs |
1x | Set under-mount legs |
1x | Wiring harness |

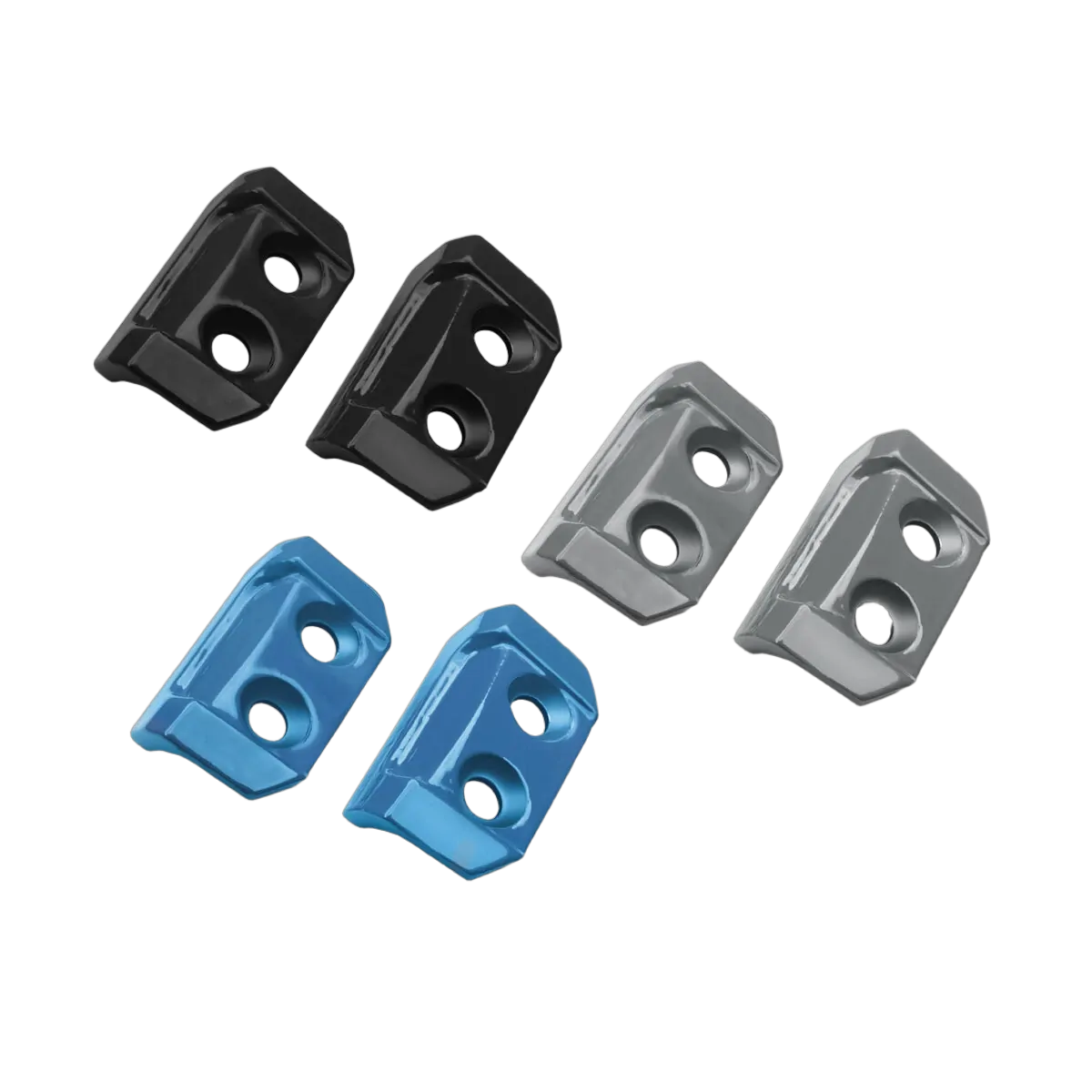

3x pair | Coloured inserts (blue, black, grey) |
Dimensions

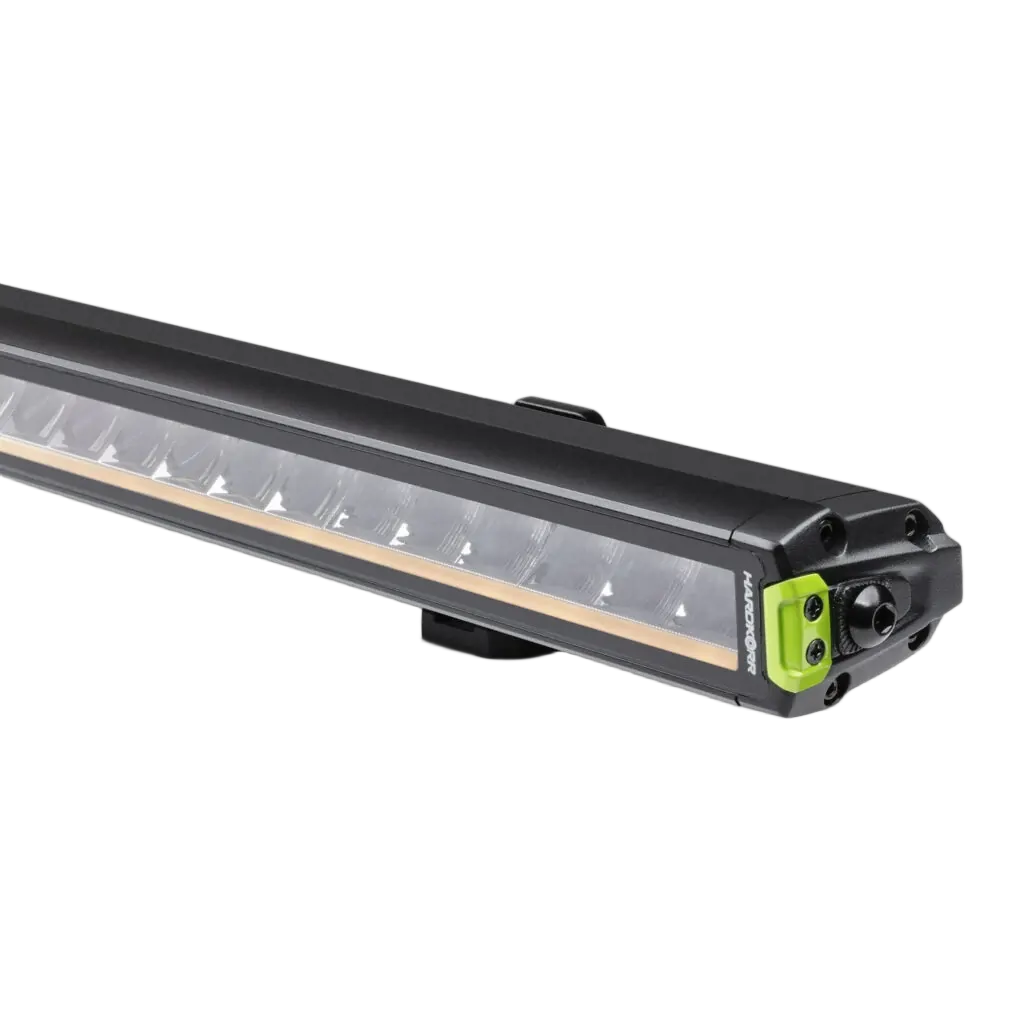

Our Hyperion LED light bars combine outstanding real-world performance and toughness with an aggressive design and extensive customisation options.
Top quality LED chips and reflectors
Starting with the basics, this light bar is constructed with high-performance OSRAM® OSLON SSL 150 LED chips. These premium chips are extremely efficient, supremely robust, resistant to corrosion and have a 150° viewing angle, which is very important in light bar applications where beam width is key. They also have very low thermal resistance, which means they will remain cooler than other LED chips and their performance will not degrade with extended use. The 5700K colour temperature offers balanced, natural lighting for excellent visibility without causing eye strain from glare.
We have matched these chips with expertly engineered, vacuum-metallised aluminium reflectors, which allowed us to create a 180 degree overall beam angle. This means not only can you see far into the distance, but are also made aware of close-up hazards such as kangaroos in time to take evasive action.
Robotic manufacturing
The housing and lens are robotically manufactured and assembled, ensuring the light bar is perfectly sealed against dust and water ingress, and we use the highest quality materials to ensure they’ll last for many years even in harsh conditions.
Intelligent design
Because single row light bars are often used in tight spaces such as inside grilles and underneath roof racks, we have engineered our Hyperion light bars to be as thin as possible by minimising wasted space internally. When using the end-mount legs this bar is only 52.1mm high, and when using the under-mount legs it is still only 63.6mm high.
Extensively customisable

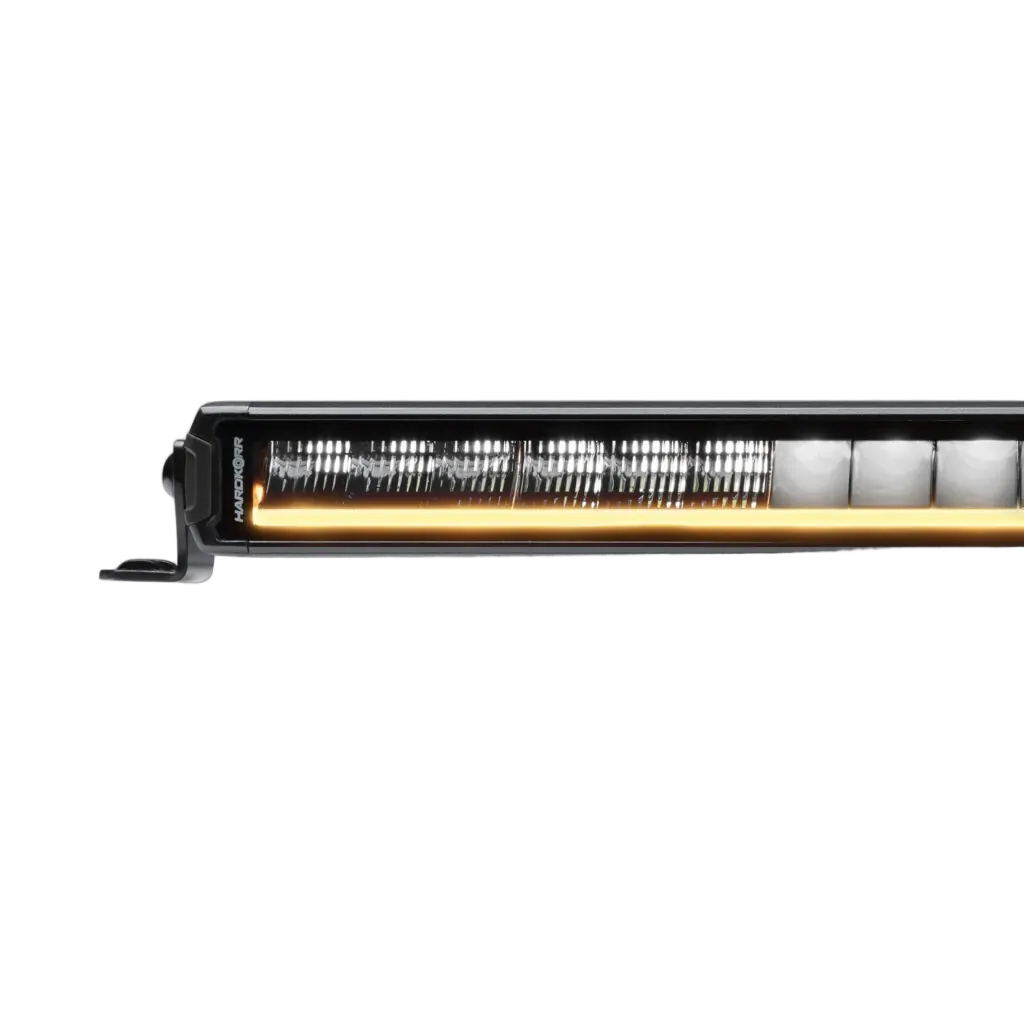

Finally, we’ve made sure there is plenty of customisability so you have the freedom to match this light bar to your vehicle and application. We’ve included three pairs of different coloured side inserts in the pack, and have another seven colour options available for separate purchase. Additionally, each light bar can be switched between high and low modes, and you can also switch between orange and white daytime running lights (DRLs). For further protection and customisation, we also offer black, orange and clear covers for purchase.
SKU | HKLB-HPR-40S |
---|---|
Barcode # | 9350466004557 |
Brand | Hard Korr |
Shipping Weight | 8.0000kg |
