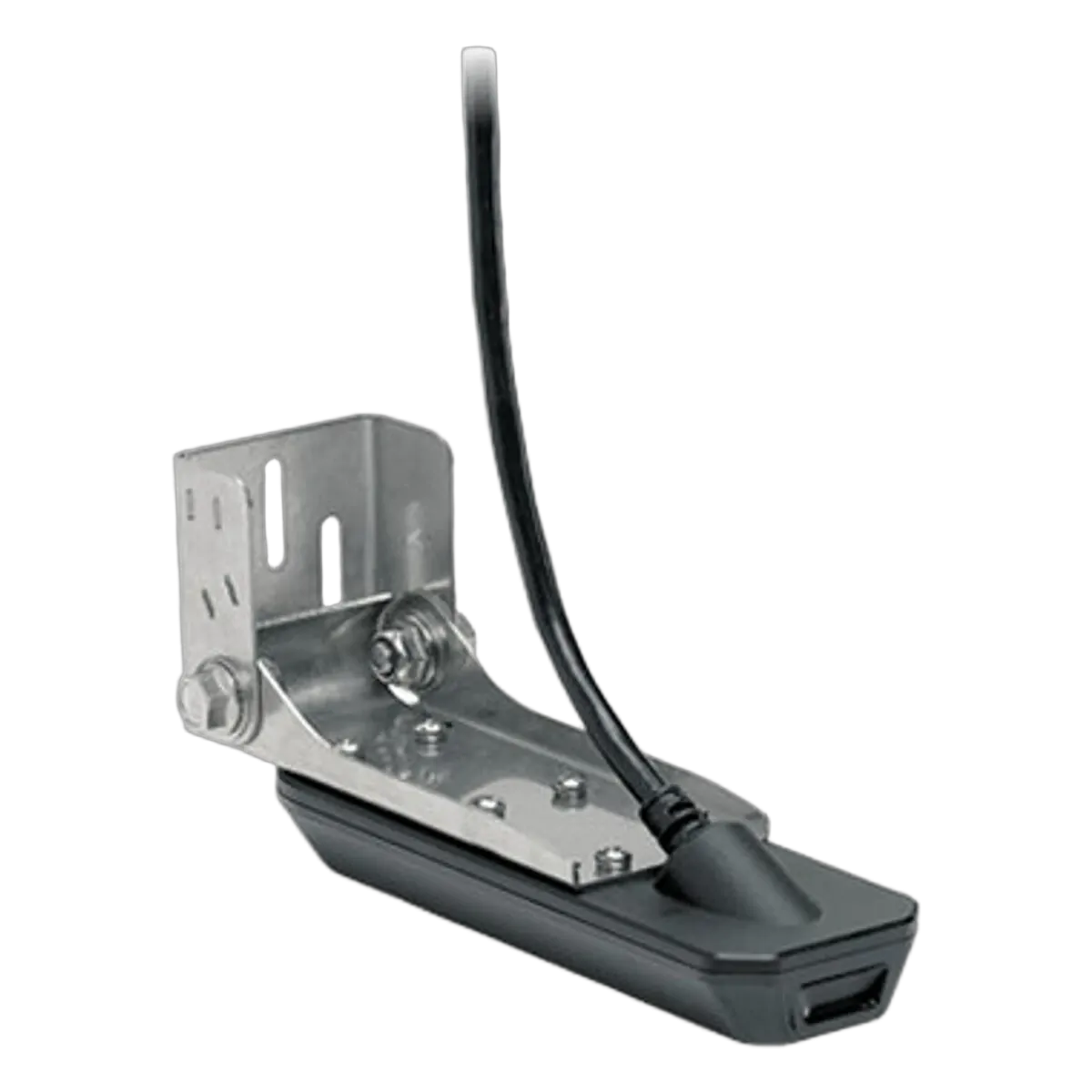

Trolling Motor Mount, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP. This transducer supports 800kHz/455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor.

• Compatible with: HELIX 7 CHIRP MEGA DI GPS G3, HELIX 7 CHIRP MEGA DI GPS G3N, HELIX 8 CHIRP MEGA DI GPS G3N.
• Cable Length:  20 Feet
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• MEGA Down Imaging Frequencies – Max Depth: 455kHz: 440-500 kHz – 350ft (107m), MEGA DI: 1075-1150 kHz – 125ft (38m)
• 1-Year Limited Warranty
• Note: This transducer will not fit Minn Kota trolling motors with less than 80 pounds of thrust as it measures 8.4″ long by 2.3″ wide and will not fit between the prop and the skeg.
• 1-Year Limited Warranty
