HU9648
LED COMBINATION LAMPS
Hulk 4x4 LED Rear Combination Stop / Tail / Indicator / Reverse Lamp 12/24 Volt
Retrofit replacement unit for Toyota Landcruiser or Hilux Cab Chassis / Trayback vehicles
Features:
-

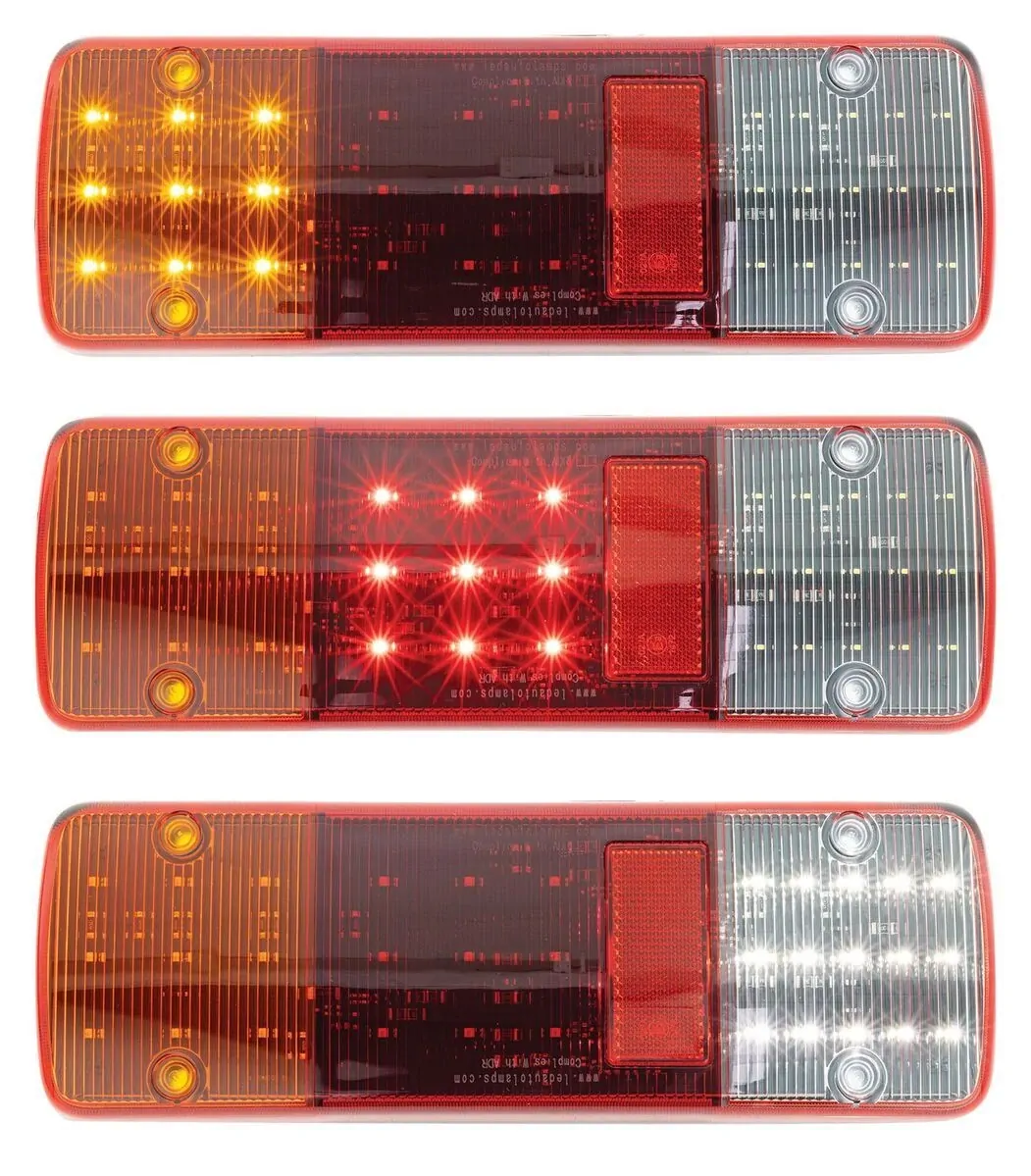

Red, Amber and White Illumination
-
Red and Clear PMMA Polycarbonate pattern free lenses with an in-built retro reflector
-
9 x High Intensity Red LED's in Stop / Tail, 9 x High Intensity Amber SMD LED's in Indicator Lamp and
-
15 x High Intensity White SMDLED's in the Reverse Lamp Module
-
Black ABS Plastic Housing can be screw mounted through the lens
-
Black ABS Plastic Housing with Metal Alloy L Shaped Bracket included
-
Surface Mount, low mounting depth for easy installation
-

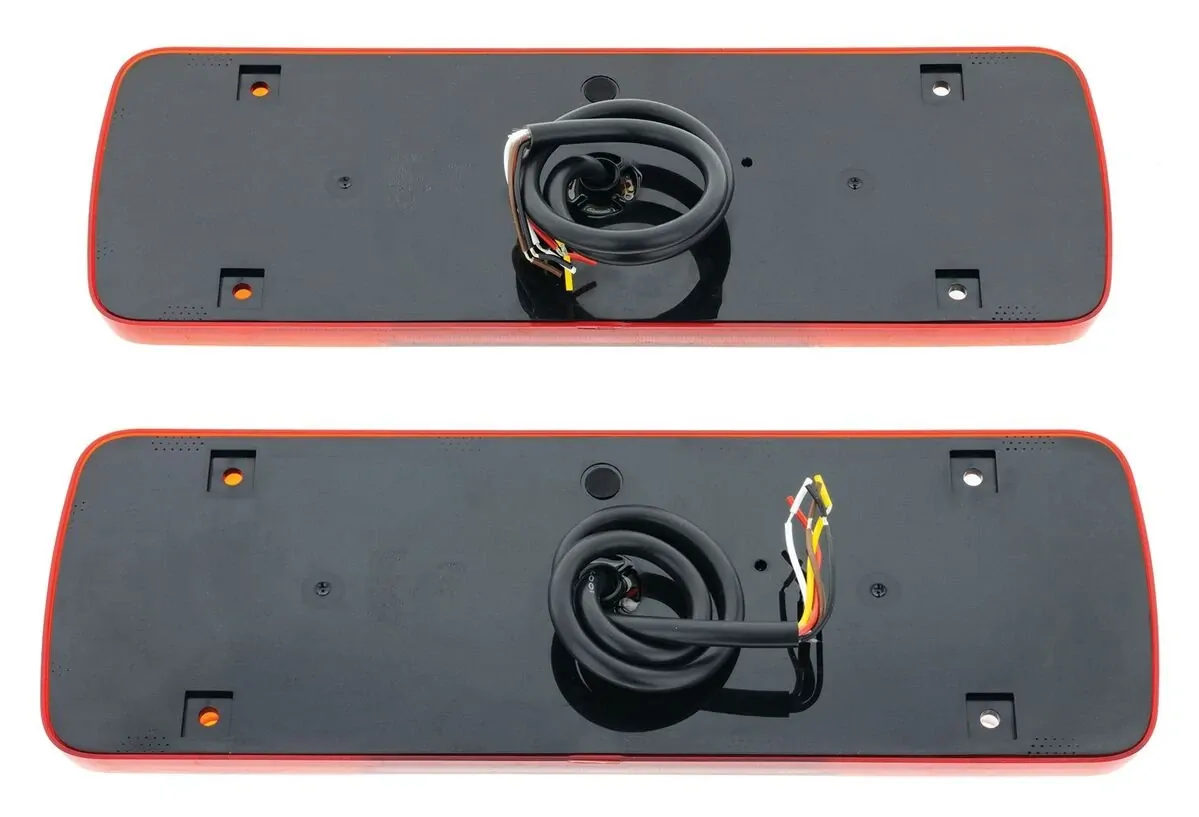

400mm Sheathed with 5 wires into Deutsch Plug
-
Fully encapsulated circuitry
-
Sealed against Dust and Moisture
-
0.16amps at 12 Volt Current Draw for Stop function
-
0.01amps at 12 Volt Current Draw for Tail function
-
0.15amps at 12 Volt Current Draw for Indicator function
-
0.18amps at 12 Volt Current Draw for Reverse function
-
30,000 Hours LED Lifespan
-
ADR 49/00 Rear Stop Lamp specifications approved
-
ADR 6/00 2A Rear Indicator Lamp specifications approved
-
ADR 1/00 Reverse Lamp specifications approved
-
ADR 47/00 Reflector specifications approved
-
Refer to ADR 13/00 for mounting instructions
-
IP67 Rating
-
Blister Qty: 2
-
2 Years Warranty
SKU | HU9648 |
---|---|
Barcode # | OEBC533704 |
Brand | Hulk 4x4 |
Shipping Weight | 2.5000kg |
