The HULK 4X4 6 Way DC control box makes it very easy to wire up accessories in your vehicle, caravan or camper trailer.
Everything needed is housed in a very convenient plastic box and lets you control all your accessories safely from one spot.
Includes:
- 6 x Rocker Switches (20amp) with Blue LED

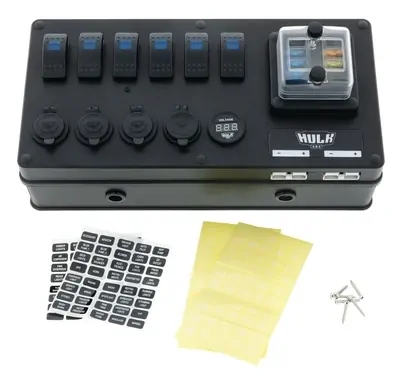

- Switch Sticker Kits To Identify Each Switch
- Quick Charge QC3 Dual USB
- 2 x Anderson Style 50amp Plugs (Input & Output)
- DC Voltmeter with Blue LED
- 3 x Accessory Power Sockets
- 6 Way Weatherproof Fuse Block with Fuses
- LED Indicators In The Fuse Block To Alert You If a Fuse Is Blown
- Housing Constructed From Lightweight Nylon

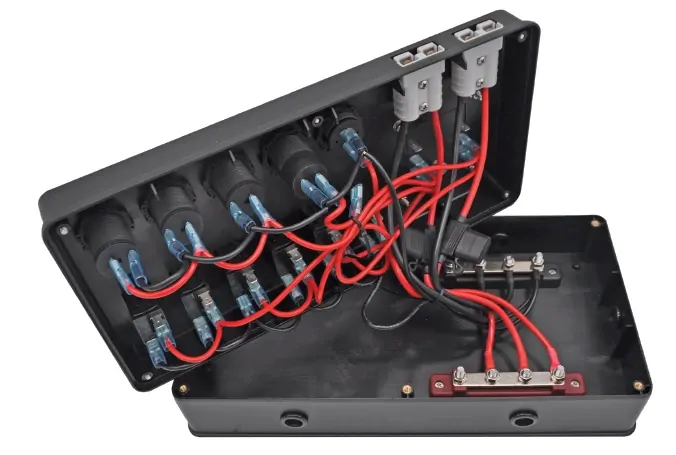

- Fully Wired Internally, Just Need To Run Power & Earth To Unit
- 4 way Positive & Negative Bus Bars
- Mounting Hardware
Specifications:
- Rocker Switch 6 x (12V 20A / 24V 10A DV)
- Power Socket x 3 (12V 20A / 24A 10A DC)
- Dual Port USB Socket x 1 Range Port 1: 2.4amp @ 5V ; Port 2: QC3.0, 3.6-12V Max 18W
- Voltmeter Socket x 1 (6V~~30V DC)
- Anderson Connector x 2 (50A)
- Fuse Box x 1 (100A 32V DC.max)
- Bus Bar x 2 (150A 32V DC.max)
- Fuse: 5A x 1, 15A x 3, 20A x 1, 30A x 2
- WireL 1015 / 10AWG & 1015 / 14AWG

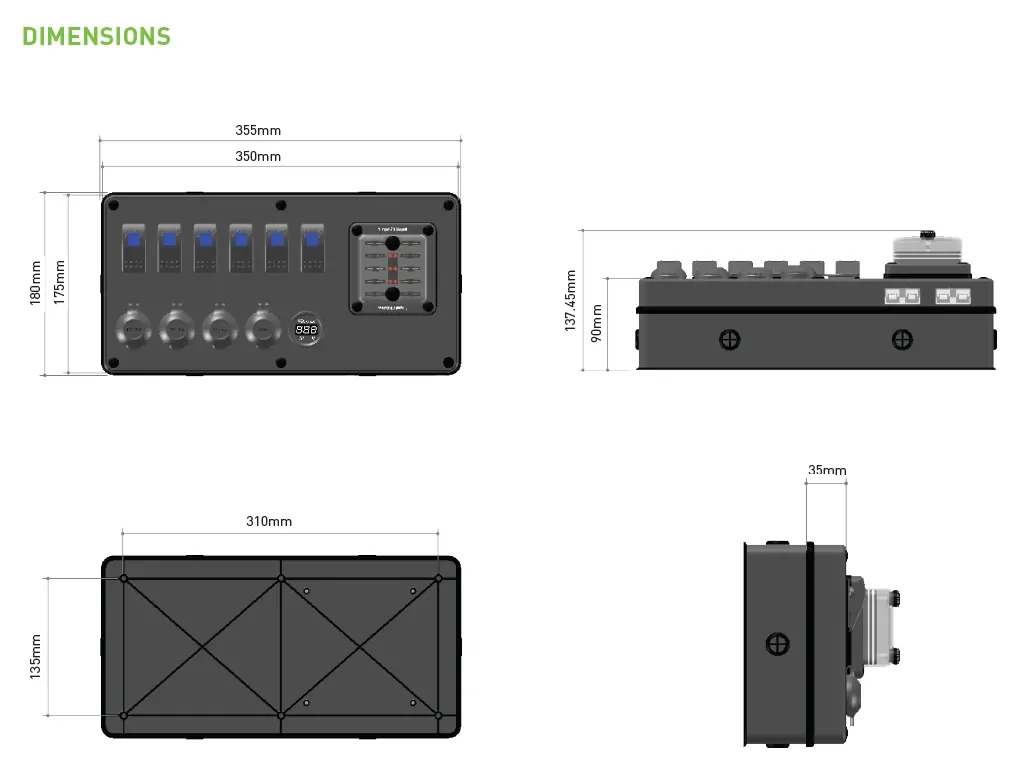

- Dimensions: L355 x W180 x H138 mm
- Shell Material: Nylon
SKU | HU6750B |
---|---|
Barcode # | 9356659220179 |
Brand | Hulk 4X4 |
Shipping Weight | 2.5000kg |
Assembled Length | 0.180m |
Assembled Height | 0.138m |
Assembled Width | 0.355m |
