HU9609

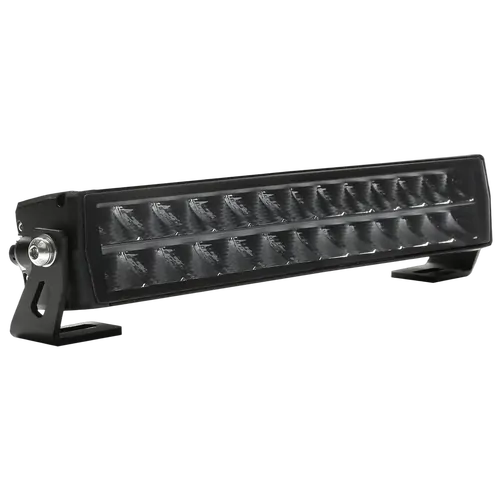

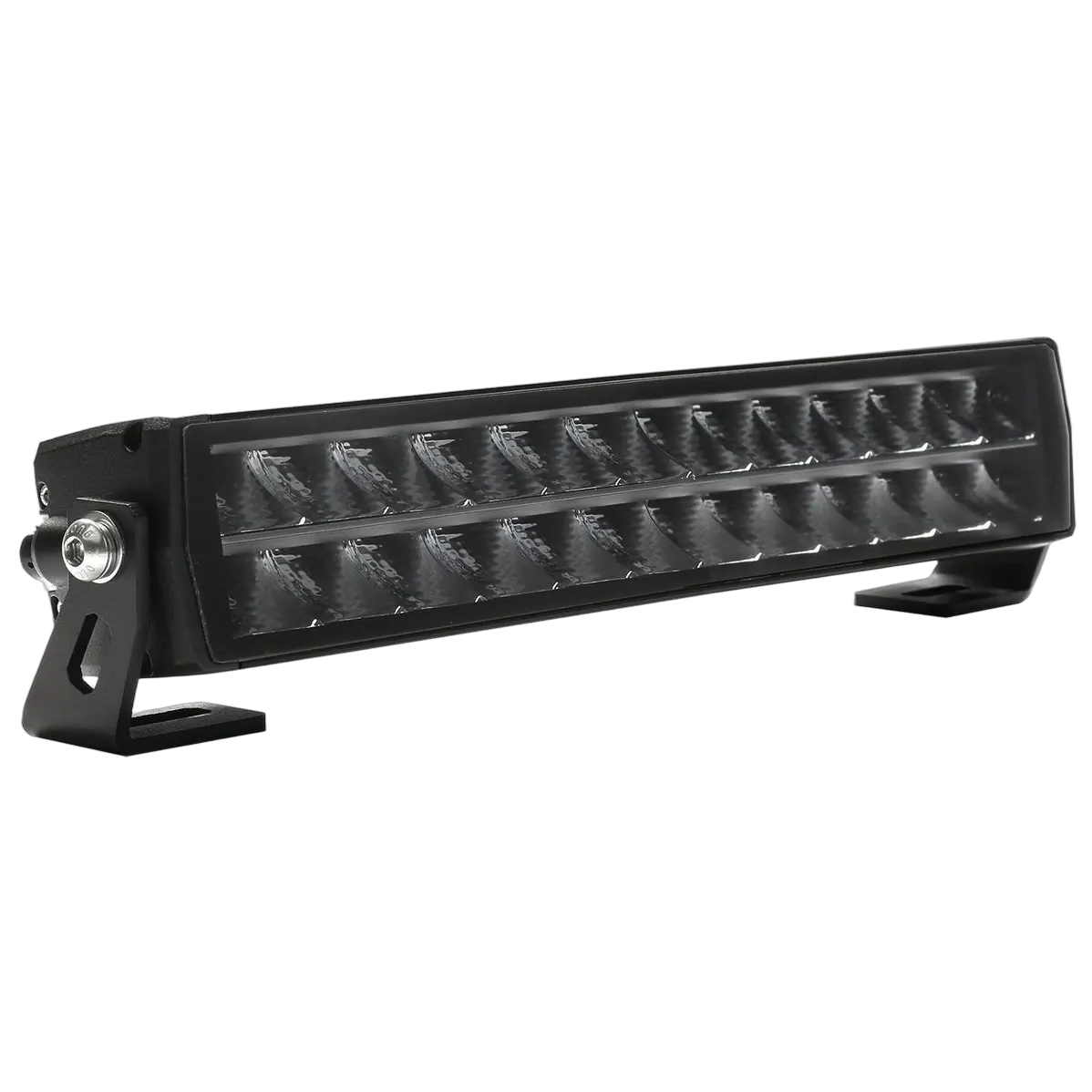

14’’ Dual Row 24 LED Light Bar
Features
-
Ultra Slim - 52.5mm depth for both Single Row & Dual Row Lightbars
-
Flush Front Fascia with no Exposed Screws - Easy to clean & no chance of screws corroding
-
Black anodised polyester powder coated extruded 6063 Aluminium housing with integrated heat-sink & pressure equalising vent
-
Polycarbonate reflector focusing optic drive technology with Lexan polycarbonate lens
-
Cross slider bracket assembly allows the bottom brackets to be positioned anywhere along bar’s length
-
500mm lead with 2 Pin deutsch plug
-
Provided with:
1. Bottom Mount Bracket - 6063 Aluminium
2. Side Mount Bracket - SUS201 Stainless Steel
Specifications
-
Driving beam
-
120W, 24 x 5W high intensity LP LED’s
-
10,800 Raw & 8,600 Effective Lumens & 6,000K
-
1 Lux @ 502m & 252,000cd peak beam intensity
-
9 – 36V Multi voltage
-
Low Current Draw: 6.5A @ 12V & 3.2A @ 24V
-
360mm length
-
Weight: 1.53kg
-
ECE R112 approved
SKU | HU9609 |
---|---|
Barcode # | OEBC533846 |
Brand | Hulk 4x4 |
Shipping Weight | 6.0000kg |
