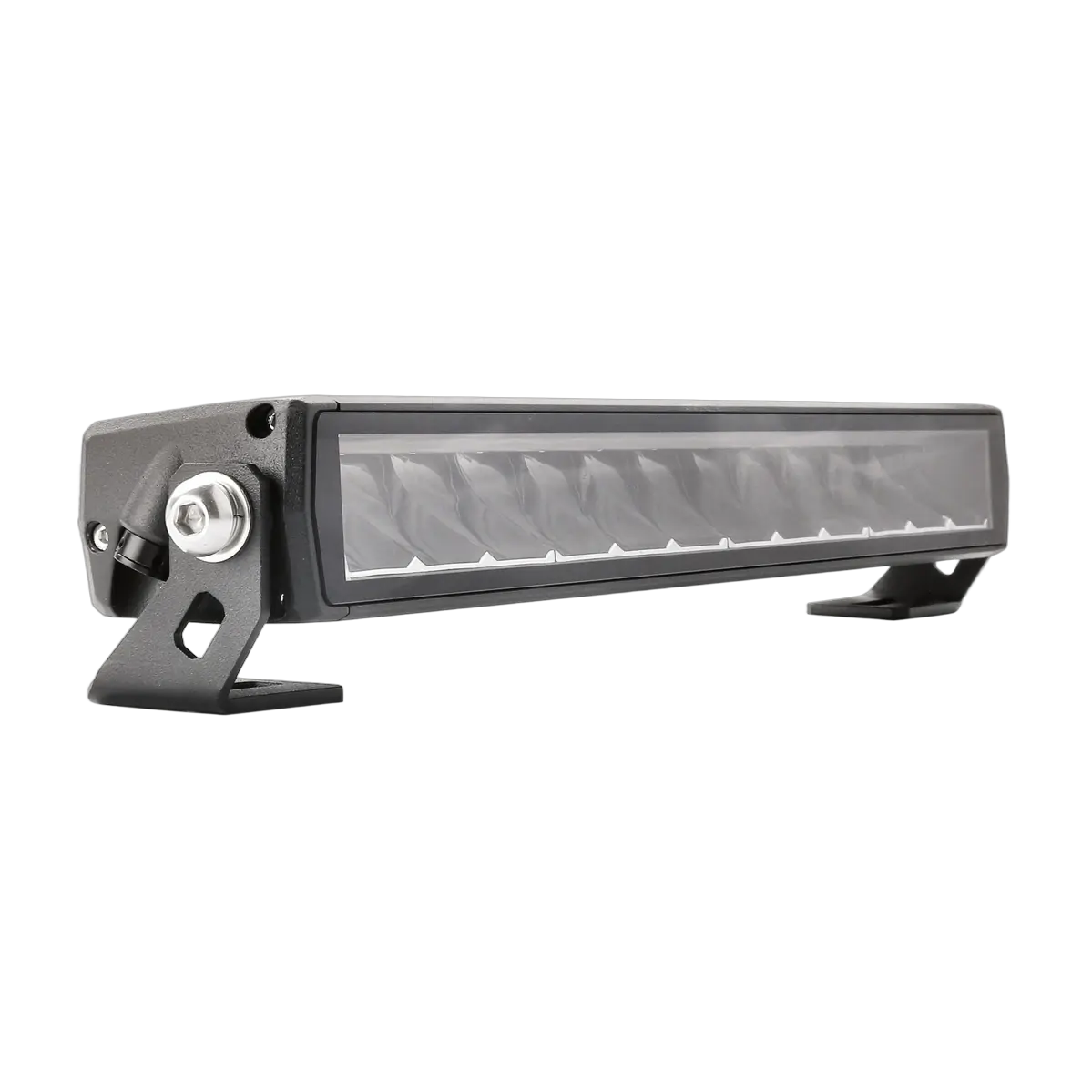

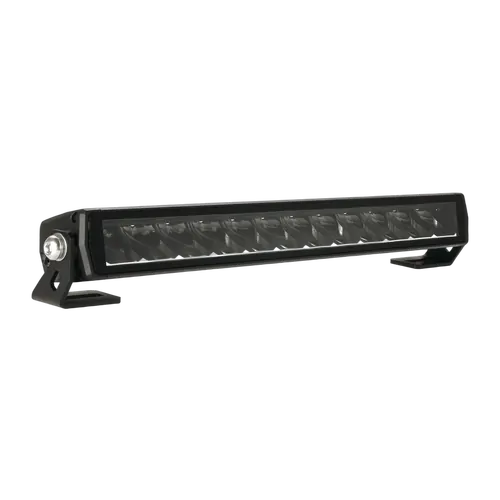

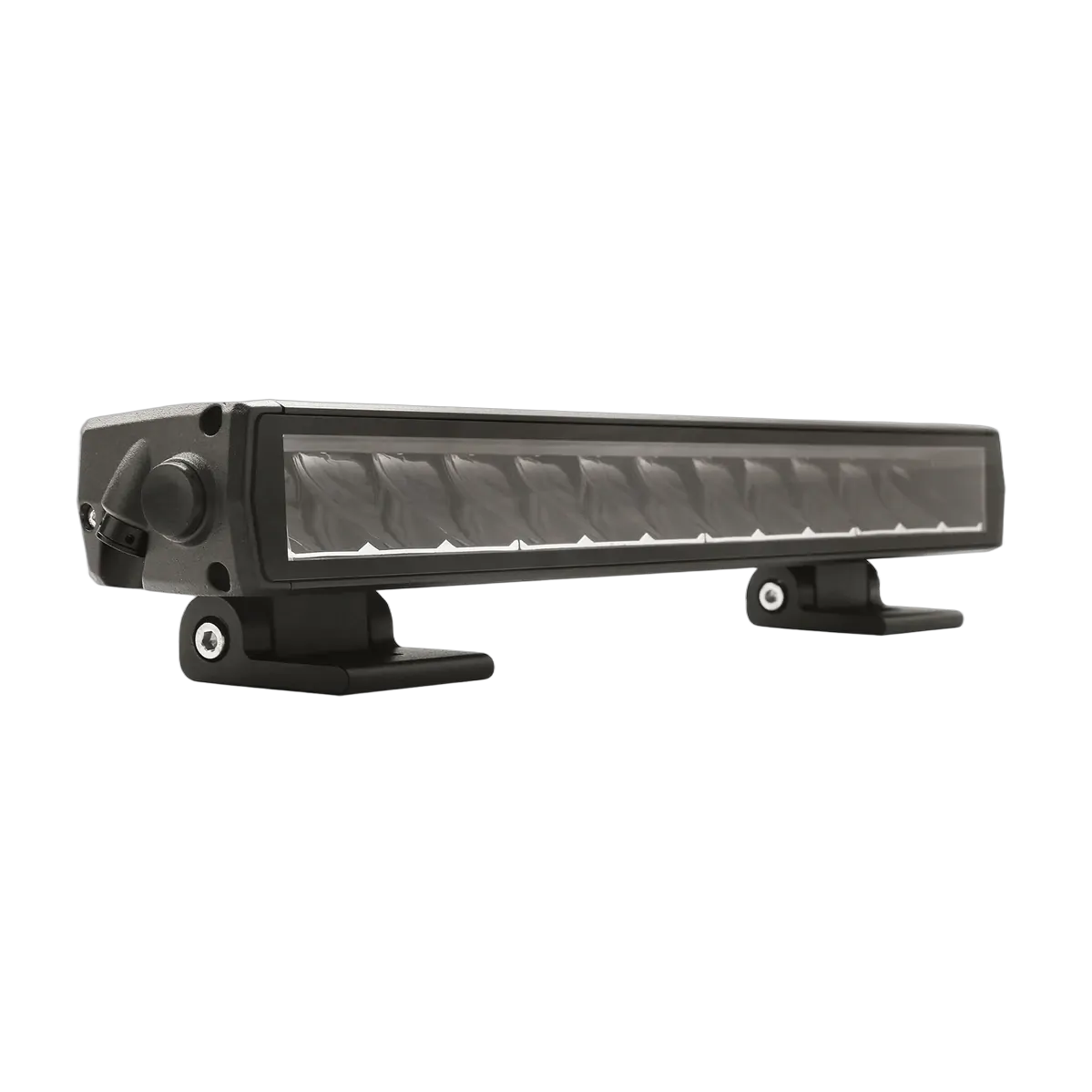

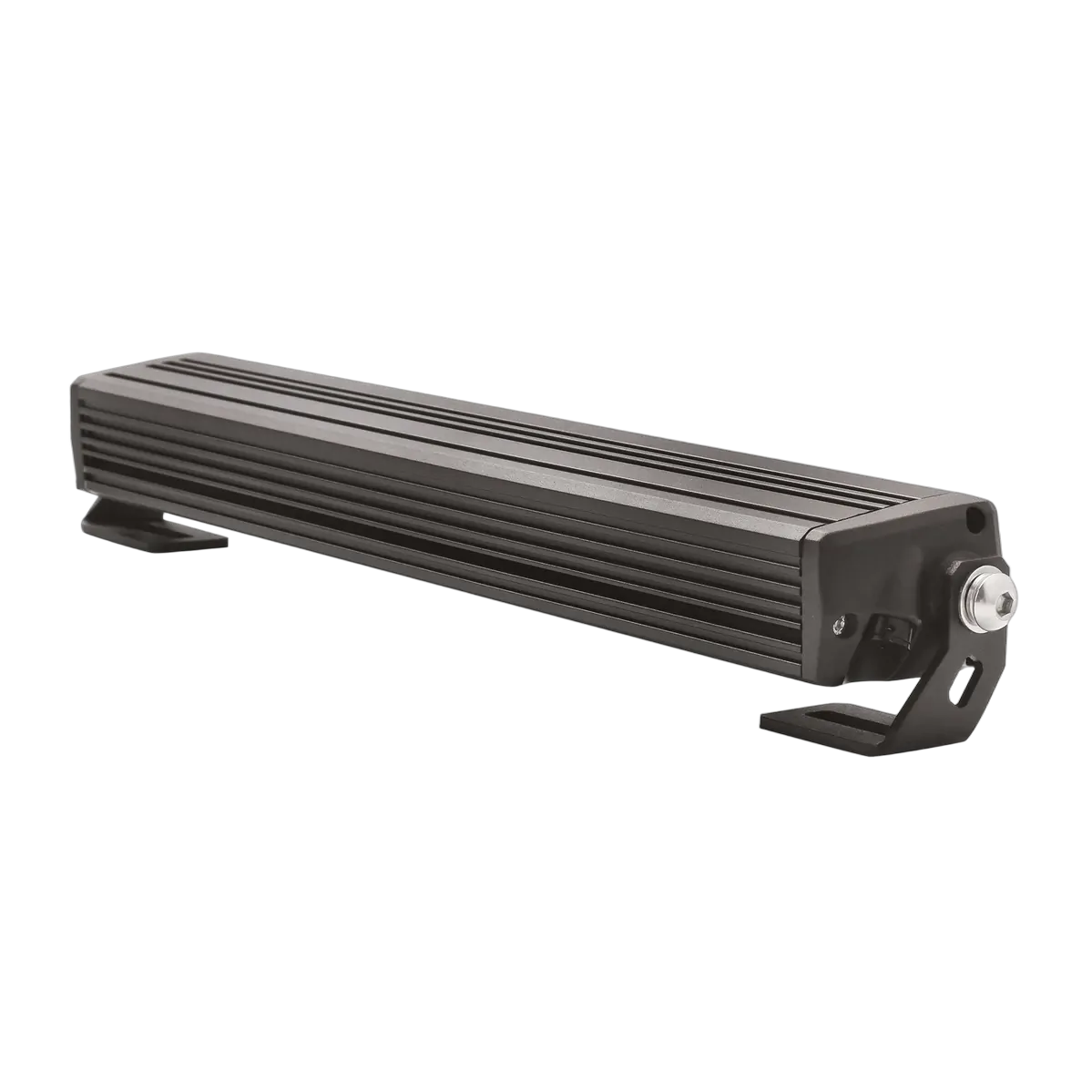

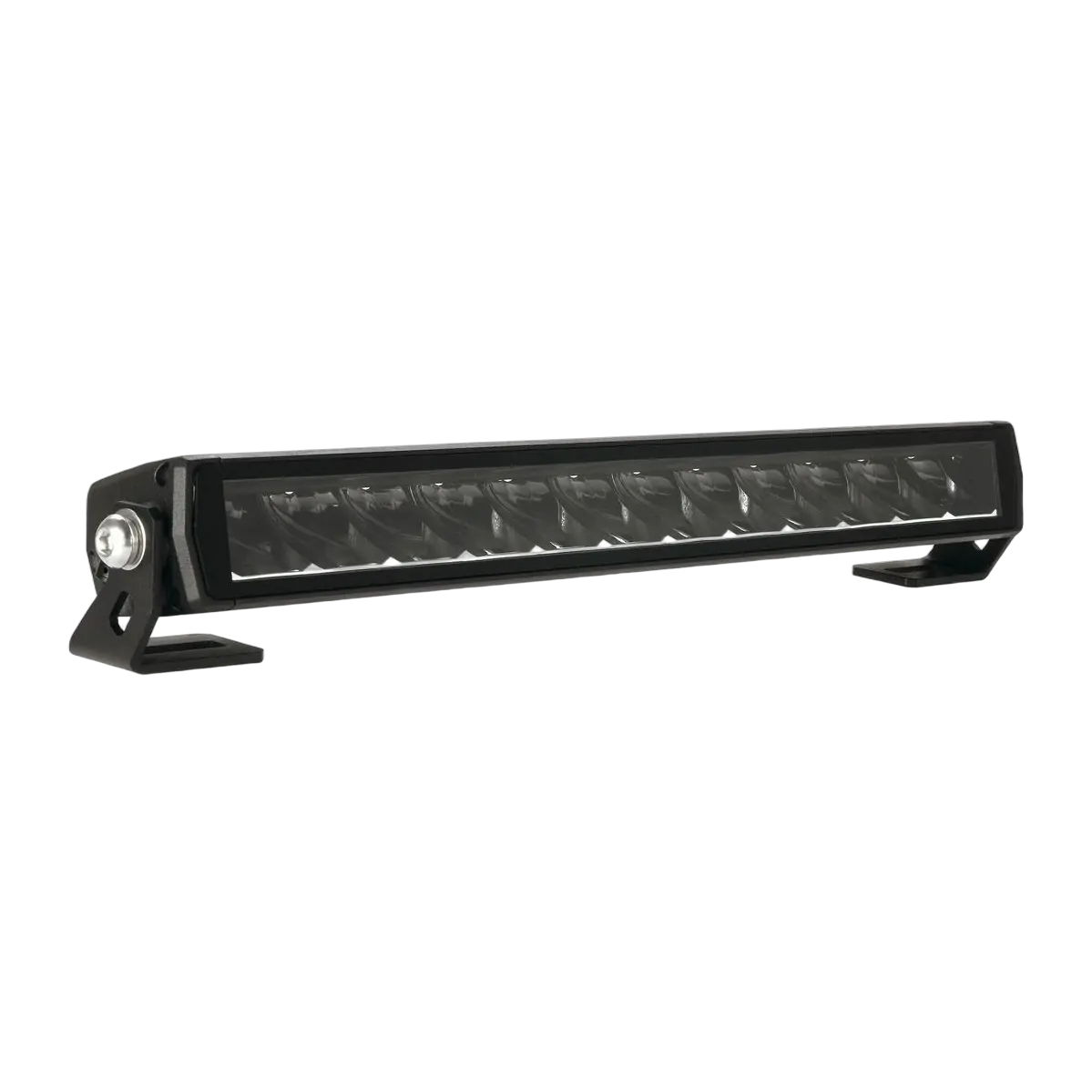

HU9601
14’’ Single Row 12 LED Light Bar
Features
-
Ultra Slim - 40.5mm height for Single Row Lightbars & 52.5mm depth for both Single Row & Dual Row Lightbars
-
Flush Front Fascia with no Exposed Screws - Easy to clean & no chance of screws corroding
-
Black anodised polyester powder coated extruded 6063 Aluminium housing with integrated heat-sink & pressure equalising vent
-
Polycarbonate reflector focusing optic drive technology with Lexan polycarbonate lens
-
Cross slider bracket assembly allows the bottom brackets to be positioned anywhere along bar’s length
-
500mm lead with 2 Pin deutsch plug
-
Provided with:
1. Bottom Mount Bracket - 6063 Aluminium
2. Side Mount Bracket - SUS201 Stainless Steel
Specifications
-
Driving beam
-
120W, 12 x 10W high intensity LP LED’s
-
8,800 Raw & 7,500 Effective Lumens
-
1 Lux @ 360m & 129,300cd peak beam intensity
-
9 – 36V Multi voltage
-
Current Draw: 5.3A @ 12V & 2.5A @ 24V
-
358mm length
-
Weight: 1.13kg
SKU | HU9601 |
---|---|
Barcode # | OEBC533844 |
Brand | Hulk 4x4 |
Shipping Weight | 4.0000kg |
