Our 240Ah deep-cycle lithium batteries are constructed from the highest quality 26700 high-discharge cylindrical cells. The cells are carefully matched to ensure the difference in internal resistance is less than 1mΩ and voltage difference is less than 5mV. They are then ultrasonically welded using automated equipment to ensure a strong connection is made between each cell, and encased in custom-molded ABS plastic cell holders to ensure reliability and consistency even when subjected to shock and vibration.

Wait… aren’t prismatic cells better?

Prismatic and cylindrical cells both have inherent advantages and disadvantages. Batteries which use prismatic cells are somewhat lighter than those with cylindrical cells, and are easier to manufacture due to having fewer connections between cells. Cylindrical cells, on the other hand, are usually more efficient in their energy usage, produce somewhat less heat and tend to be more reliable than their prismatic counterparts.

The improved cell reliability and efficiency of cylindrical cells are what made us decide, like Tesla and Rivian, to manufacture these batteries from cylindrical cells.

Our lithium batteries have been certified as meeting all required and optional international standards for performance and safety, including:

• UN 38.3: Safety testing of lithium metal / lithium ion batteries in transport
• UL 1642: Performance/quality testing to guard against risk of fire or explosion
• IEC 62133-2:2017: Safety testing of portable lithium batteries under intended use and reasonably foreseeable misuse (including vibration test)
• IEC 62619:2017: Safety testing of lithium batteries for industrial use
• CE: The batteries meet EU safety, health and environmental protection requirements

• ISO 9001: Ensures quality management systems have been implemented
• ISO 14001: Ensures environmental management systems have been implemented

When comparing batteries it is vitally important to understand the difference between nominal and C20 capacity. To reduce confusion and help to standardise the measurement of battery capacity, most reputable battery manufacturers will quote the capacity of their battery in amp-hours at C20 (also written as C/20), which means the number of amps the battery can deliver if discharged at a constant rate over a period of 20 hours. Using this standard, a fully-charged battery with a capacity of 100Ah could deliver 5A of current per hour for a period of 20 hours before becoming fully discharged (5A x 20h).

Some disreputable manufacturers, however, will advertise the nominal capacity of their batteries and bury the C20 rating in the fine print. Nominal capacity has no practical application and can be up to 20% higher than the C20 rating, so a battery that is advertised as a 120Ah battery might only be able to deliver 105Ah or even less.

We value our good reputation, and will always quote the C20 rating as the battery’s capacity. This means you can be confident that the power we say our batteries can deliver is not inflated to mislead, create confusion or invite unfair comparisons.

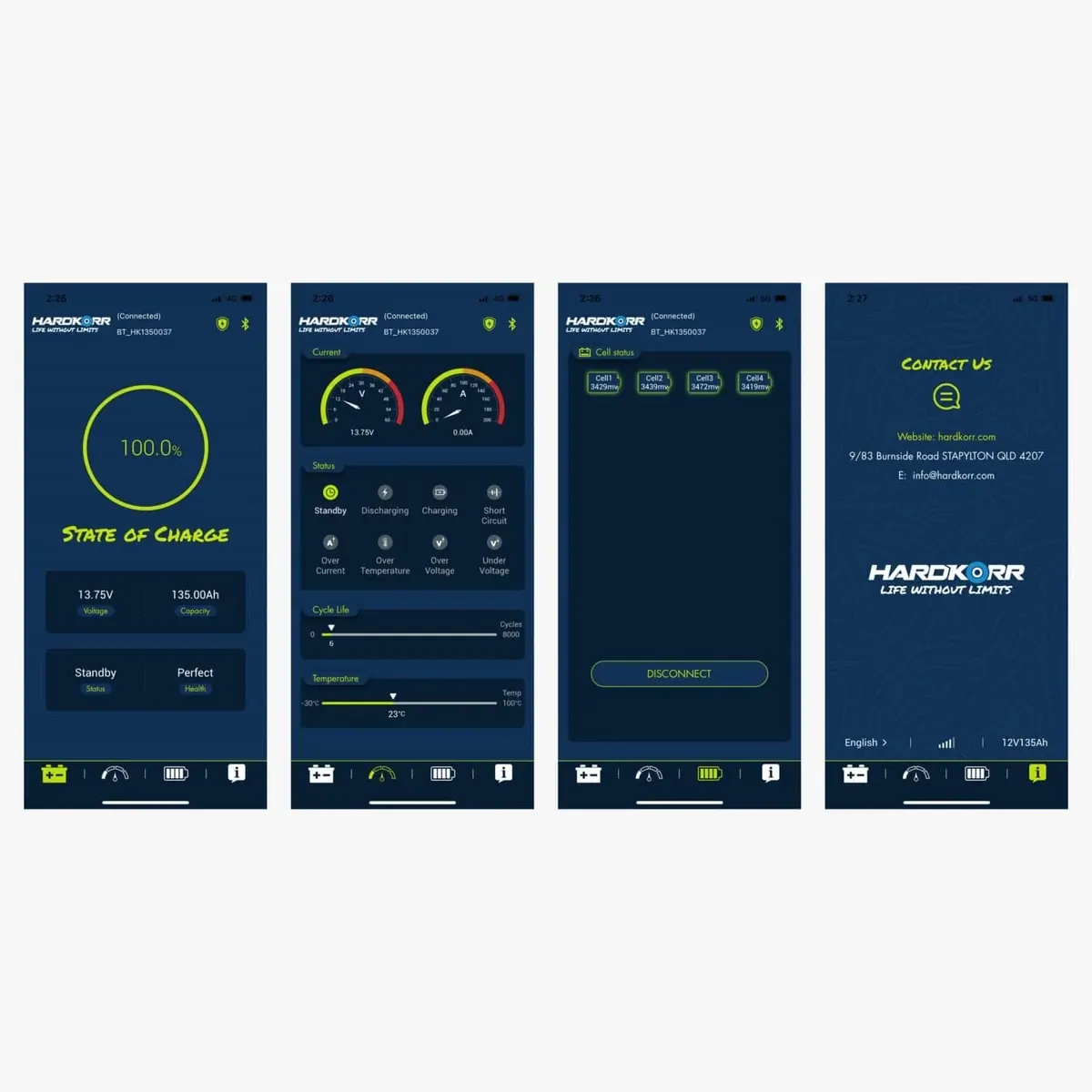

This battery give you the capability to easily monitor its key data wirelessly, via Bluetooth® connection. You can access this feature by downloading the Hardkorr Battery app which is available for iOS® and Android® devices. The app also records a log of any instances where a BMS protection circuit is activated, including over-charge, over-discharge, under-voltage, over-current and over-temperature. You can find it by pressing the shield icon in the top-right corner of any screen.

Why go Lithium?

• Long cycle life: lasts up to 10x longer than Sealed Lead Acid (SLA) batteries
• More usable capacity: safely use up to 70% of usable capacity and 99% in an emergency (vs 50%/70% for SLA)
• Light weight: About half the weight of an equivalent SLA battery
• Environmentally friendly: Non-toxic, contains no acid, can be installed in any direction

The Battery Management System (BMS) inside all lithium batteries contains a protection circuit which trips if the voltage drops below a certain setpoint. In the case of Hardkorr batteries, it is set at 10.0V. This circuit prevents damage to the battery by putting it into a ‘sleep’ mode until it is reset.

In the past, resetting the battery after the over-discharge protection was activated was not easy. Whilst some battery chargers do contain a “wake-up” function, most people had to resort to applying a constant voltage above 12V across the terminals using jumper leads or home-made wires. This was fraught with danger; damage to appliances or the battery were not uncommon.

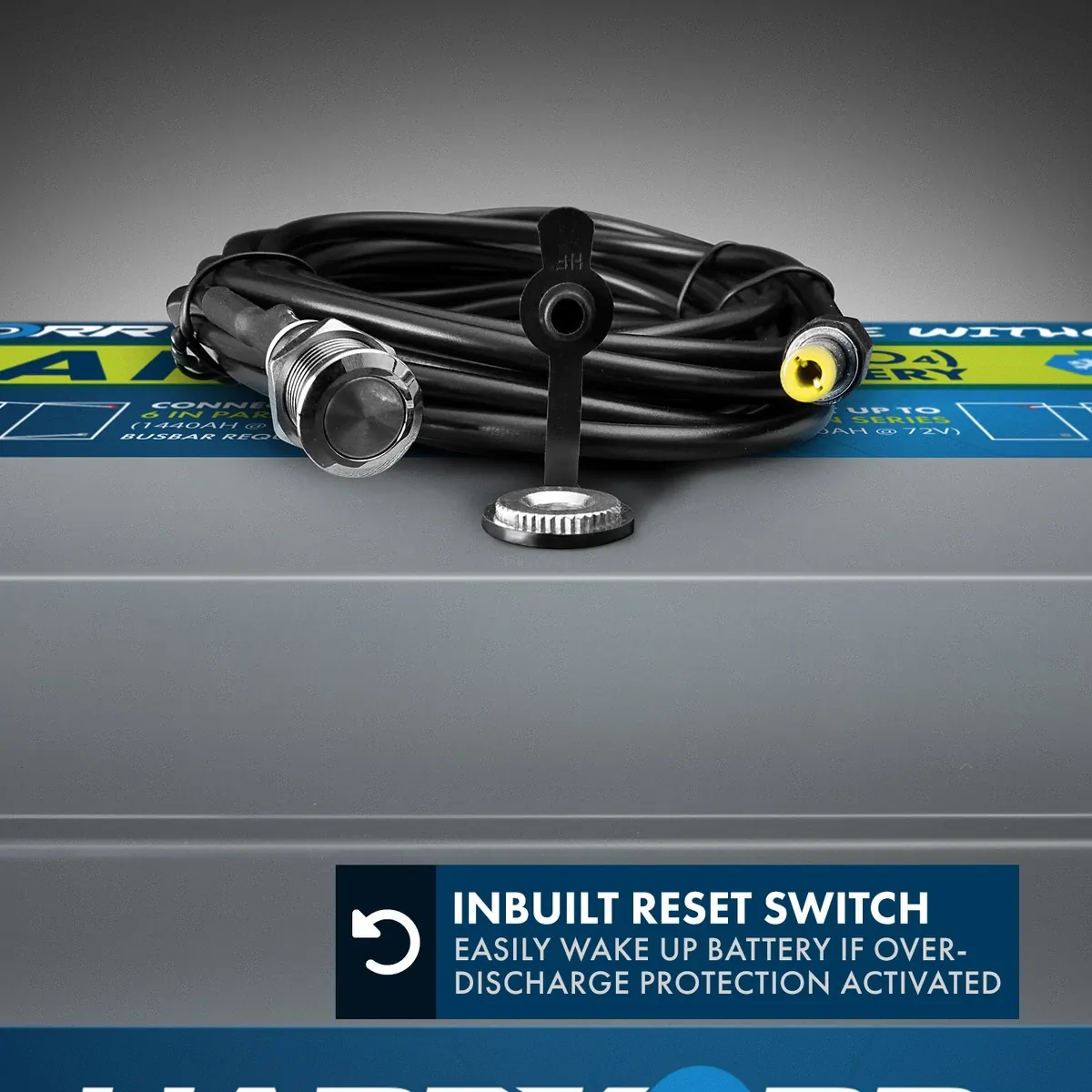

Our batteries provide an easy solution to this problem; simply connect our included remote reset switch to the socket on the top face of the battery and hold down the button for 5 seconds, and the over-discharge circuit will reset itself. The button can also be flush-mounted into your 12v setup if desired.

Specifications

* Note on discharge current: if you connect multiple batteries in parallel, the maximum discharge current is multiplied by the number of batteries in the array. For example, if you connect two of these batteries in parallel you can discharge at up to 400A.

Why Should I Upgrade to 240Ah Lithium Deep Cycle Batteries?

Upgrading to a 240Ah lithium battery, such as the Hardkorr 240Ah lithium or iTech240X Pro 240Ah lithium battery, offers numerous advantages that make it the ultimate power solution for all your energy needs. Here’s why:

• Longer Cycle Life: A 240Ah lithium battery can last up to 10 times longer than traditional Sealed Lead Acid (SLA) batteries. This means fewer replacements and lower long-term costs.
• More Usable Capacity: Safely use up to 70% of a lithium battery’s capacity regularly and up to 99% in emergencies. In contrast, SLA batteries typically use only 50% to 70% of their capacity. With a 240Ah 12v deep cycle lithium battery, you’ll never be caught short of power.
• Lightweight: Lithium batteries are about half the weight of equivalent SLA batteries, making them easier to handle and install in various applications, from boat lighting to off-grid living.
• Environmentally Friendly: Lithium batteries are non-toxic, contain no acid, and can be installed in any direction. They are a more environmentally friendly alternative compared to SLA batteries.
• Advanced Features: Our pro 240Ah 12v deep cycle lithium batteries come with Bluetooth® monitoring, allowing you to track key data wirelessly via a smartphone app. They also include a Battery Management System (BMS) that puts the battery into a ‘sleep’ mode to prevent damage when voltage drops too low. Resetting the BMS is easy with our included remote reset switch.
• Reliability and Performance: Constructed from high-quality 26700 high-discharge cylindrical cells, our 240Ah lithium batteries ensure excellent performance and reliability, even under harsh conditions. This makes them ideal for use in boat lighting, auto LED lights, strip light LEDs, and more.
